Bevel Box, Removing

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Socket and Extended Bit T10107 A (SW 6 mm)
Hex Ball Socket 3247
Bracket 2024 A /1

Removing

-- Remove front wheels.

-- Remove noise insulation in center by loosening fasteners -1 through 4-.

Fig 1: Center Noise Insulation Fasteners And Center Noise Insulation Panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove right noise insulation -arrows-.

Fig 2: Remove Right Noise Insulation -Arrows-

Courtesy of AUDI OF AMERICA, LLC

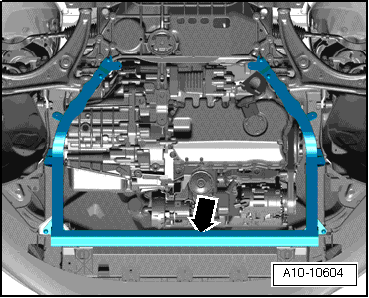

-- Remove noise insulation frame -arrow-. Refer to Removal and Installation .

Fig 3: Remove Noise Insulation Frame

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -1- on oil level thermal sensor -G266-.

Fig 4: Identifying Oil Level Thermal Sensor G266 Wire On Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Unclip bracket -2- for electrical wire to oil level thermal sensor on subframe.

-- Remove exhaust system bracket bolts -arrows-.

Fig 5: Identifying Exhaust System Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and -3-.

Fig 6: Identifying Pendulum Support & Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore bolt -1-.

-- To avoid axle alignment, secure the subframe. Refer to Description and Operation .

-- Remove subframe. Refer to Removal and Installation .

-- Remove right drive axle heat shield from bevel box -arrows-.

Fig 7: Identifying Right Driveshaft Heat Shield And Bevel Box

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right drive axle from the bevel box flange shaft.

-- Raise the drive axle as far as possible and secure with a cable tie.

NOTE:

Ensure drive axle protective coating is not damaged.

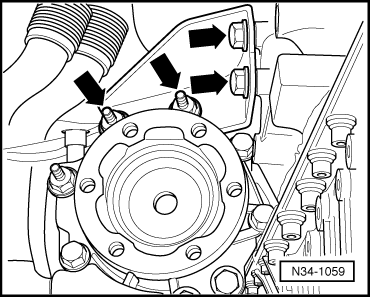

-- Remove the bolts -arrows- and remove the bevel box bracket.

Fig 8: Identifying Engine & Bevel Gear Transfer Case Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Identify position of flexible disc and bevel box flange to each other.

Fig 9: Driveshaft Flexible Disc

Courtesy of AUDI OF AMERICA, LLC

-- Remove driveshaft flexible disc from bevel box -arrows- while counterholding at triangular flange with a lever.

-- Press engine/transmission assembly slightly forward (toward front end) and pull off driveshaft from bevel box.

Fig 10: Identifying Driveshaft Flange Shaft Seal

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging sealing ring -arrow- in driveshaft flange.

Press driveshaft horizontally as far back and to the right side of the vehicle as possible.

NOTE:

If seal is damaged, driveshaft must be replaced.

-- Tie driveshaft up.

-- Remove the right flange shaft bolt -arrow 1- with the T10107 A by installing 2 bolts in the flange and counter holding the flange shaft with the assembly lever.

Fig 11: Identifying Right Flange Shaft Bolt

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Right flanged shaft remains in bevel box.
Ignore -A and B-.

-- Remove the bolts for connecting the bevel box to the manual transmission (qty. 4) -arrows-.

Fig 12: Identifying Special Tools And Workshop Equipment Required Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bevel box from the transmission together with the right flange shaft.

Install bevel gear transfer case. Refer to BEVEL BOX, INSTALLING .
