Transmission Shift Lever And Selector Relay Lever To Model Year 2007 Assembly Overview: Notes
WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Grease bearing areas and slide surfaces with grease G 000 450 02.

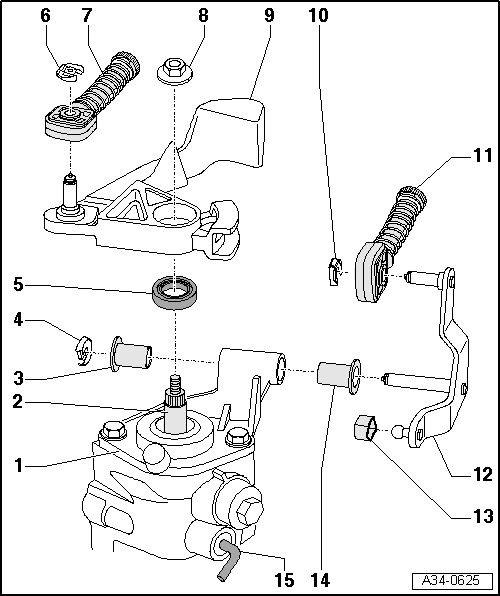

- Selector Mechanism Cover
- Removing and installing with transmission installed, refer to SELECTOR SHAFT
- Selector Shaft
- Removing and installing with transmission installed, refer to SELECTOR SHAFT
- Bushing
- Retaining Washer
- Removing, refer to REMOVE THE LOCK WASHER FOR THE SELECTOR RELAY LEVER
- Shaft Seal
- Replace, refer to SELECTOR SHAFT SEAL
- Retaining Washer
- Control Cable Retainer
- For shift cable to transmission shift lever -4-, refer to item 4
- Allocation, refer to ALLOCATION OF CONTROL CABLE RETAINERS
- Nut
- Replace
- 23 Nm
- Self-locking
- Transmission Shift Lever
- With balance weight
- Insert so that master spline aligns with shift rod, refer to INSTALLING THE TRANSMISSION SHIFT LEVER
- Installation location, refer to INSTALLATION POSITION OF TRANSMISSION SHIFT LEVER/SELECTOR RELAY LEVER
- Different diameters of the control cable retainer mounting pin, refer to STARTING IN 06/2006, SMALLER MOUNTING PIN DIAMETER FOR THE SHIFT CABLE RETAINER
- Retaining Washer
- Control Cable Retainer
- For the selector cable on the selector relay lever, refer to item 2
- Allocation, refer to ALLOCATION OF CONTROL CABLE RETAINERS
- Release to adjust selector mechanism, refer to RELEASE CABLE RETAINER -A- FOR SELECTOR AND SHIFT CABLES -B- AS FOLLOWS:
- Selector Relay Lever
- Installation location, refer to INSTALLATION POSITION OF TRANSMISSION SHIFT LEVER/SELECTOR RELAY LEVER
- Slide Shoe
- Bushing
- Lock Elbow
- For adjustment of shift mechanism, refer to SHIFT MECHANISM, ADJUSTING
