Transmission Overview

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

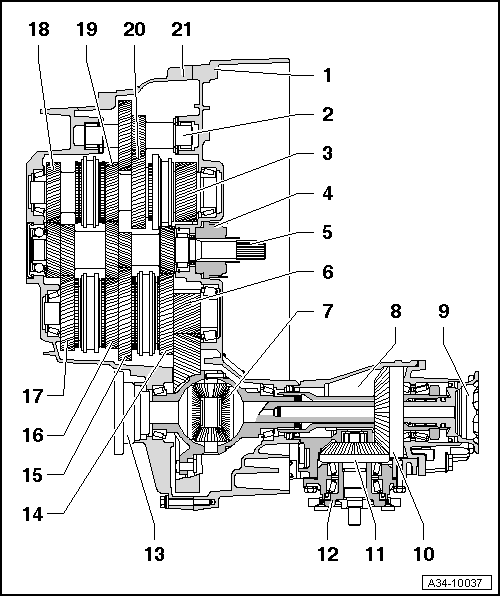

Fig 1: Identifying Transmission, Disassembling And Assembling Remove/Install Components
GWWA34-10037Courtesy of AUDI OF AMERICA, LLC
  1. Clutch Housing
  2. Reverse Shaft
  3. Output Shaft 5th/6th Gear/Reverse Gear
  4. Clutch Slave Cylinder with Release Bearing
  5. Input Shaft
  6. Output Shaft, 1st to 4th Gears
  7. Differential
  8. Bevel Box
  9. Right Drive Flange
  10. Head Bevel Gear with Input Shaft
  11. Shaft Bevel Gear
  12. Output Flange
  13. Flange Shaft, Left
  14. 2nd Gear Selector Gear
  15. 1st Gear Selector Gear
  16. 4th Gear Selector Gear
  17. 3rd Gear Selector Gear
  18. 5th Gear Selector Gear
  19. 6th Gear Selector Gear
  20. Reverse Gear Selector Gear
  21. Transmission Housing
