Mounting Frame and Shift Lever Boot, Disconnecting

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

-- Carefully release tabs -arrows- and remove mounting frame -1- from shift lever boot -2-.

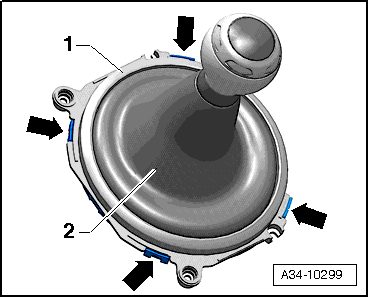

Fig 1: Frame and Shift Lever Boot, Disconnecting
GWWA34-10299Courtesy of AUDI OF AMERICA, LLC
