Disconnect the Center Console Trim and Mounting Frame for the Shift Lever Boot

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove bolts -arrows-.

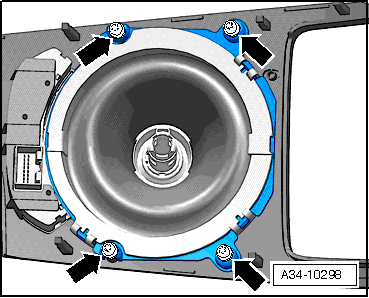

Fig 1: Center Console Trim and Frame/Shift Lever Boot, Disconnecting
GWWA34-10298Courtesy of AUDI OF AMERICA, LLC

-- Trim and mounting frame, disconnecting
