Remove the Shift Cable from the Transmission Shift Lever and Attach
WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.
Removal

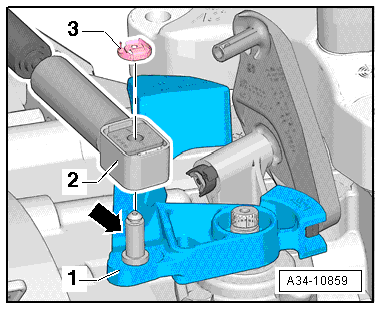

-- Remove shift cable lock washer -3- from transmission shift lever -1- by lifting the clip.
-- Remove shift cable -2- from the pin -arrow-.
Securing
NOTE:
- Replace the lock washer for the shift cable.
- Coat the pin -arrow- with a small amount of grease G 000 450 02.
-- Press the shift cable onto transmission shift lever -2- and secure with lock washer -1-.
