Left Flange Shaft, Clutch Module, Spur Gears, Gearshift Shaft And Transmission Cover Overview

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 Audi S5, 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, and 2009 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

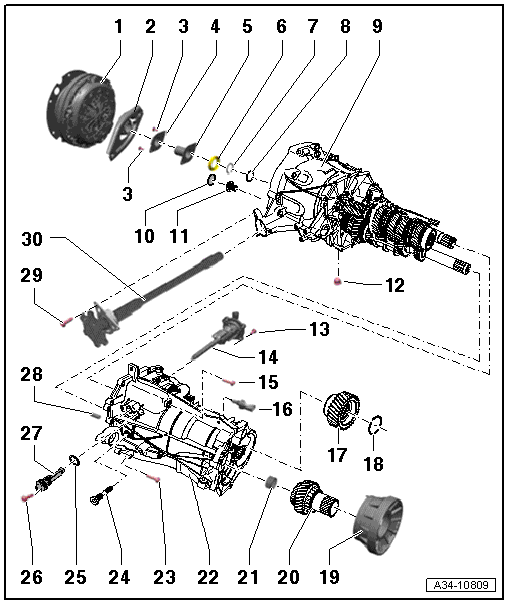

Fig 1: Exploded View Of Left Flange Shaft, Clutch Module, Spur Gears, Gearshift Shaft And Transmission Cover
GWWA34-10809Courtesy of AUDI OF AMERICA, LLC
  1. Clutch Module
  2. Clutch Release Lever with Release Bearing and Spring
  3. Bolt
    • 8 Nm
    • Quantity: 2
    • Insert with locking fluid AMV 185 101 A1
  4. Securing Plate
  5. Guide Sleeve
    • If present, remove any grease from the guide sleeve
  6. Input Shaft Seal
  7. Locking Ring
  8. Adjusting Shim
  9. Transmission Housing
  10. Cover
    • Always replace
    • For the output shaft
  11. Bolt
    • Always replace
    • 110 Nm
    • For the output shaft
  12. Oil Drain Plug
    • 40 Nm
  13. Bolt
    • 24 Nm
    • Steel bolts (M8; 25 mm long)
    • Quantity: 4
    • Insert with locking fluid AMV 185 101 A1
  14. Selector Shaft with Selector Cover
    • Different versions are installed (with and without a transmission neutral position sensor -G701-)
    • Allocate according to transmission code.
    • Coat the selector cover's sealing surface on the transmission cover with sealing compound AMV 188 001 02 before installing
  15. Bolt
    • 27 Nm
    • Steel bolts (M8; 30 mm long)
    • Quantity: 3
    • For the bearing bracket to the transmission cover
    • Insert with locking fluid AMV 185 101 A1
  16. Transmission Range Gear Recognition Switch -F208-
    • 20 Nm
    • Does not need to be removed when disassembling and assembling the transmission
  17. Output Wheel/Drive Wheel
  18. Locking Ring
  19. Gear Carrier
    • Pay attention to the installed position to the transmission cover, refer to TRANSMISSION
  20. Output Wheel/Drive Wheel
  21. Needle Bearing
  22. Transmission Cover
  23. Bolt
    • 24 Nm
    • Steel bolts (M8; 42 mm long)
    • Quantity: 16
  24. Bolt
    • 24 Nm
    • For the reverse shaft to the transmission cover
  25. O-ring
    • Always replace
    • On transmissions with a transmission neutral position sensor -G701- or a cap
  26. Bolt
    • 24 Nm
    • Steel bolt (M8; 25 mm long)
    • For the transmission neutral position sensor -G701- or the plug and at the same time for the cover/gearshift shaft to the transmission cover
    • Not installed on all versions
    • Insert with locking fluid AMV 185 101 A1
  27. Transmission Neutral Position Sensor -G701- or Cap
    • Transmission neutral position sensor for vehicles with the Start/Stop System
    • A closure cap is installed in place of the GEAR CARRIER -1- ON THE TRANSMISSION COVER AS FOLLOWS:  transmission neutral position sensor
    • Allocate according to transmission code.
      NOTE:

      It is not necessary to remove the cap with disassembling and assembling the transmission, if a cap is installed in place of the transmission neutral position sensor.

  28. Alignment Pin
    • Quantity: 2
  29. Bolt
    • 24 Nm
    • Steel bolts (M8; 25 mm long)
    • Quantity: 3
    • Insert with locking fluid AMV 185 101 A1
  30. Left Flange Shaft
    • With bracket
