Clutch Module: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 Audi S5, 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, and 2009 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, paying attention to the following:

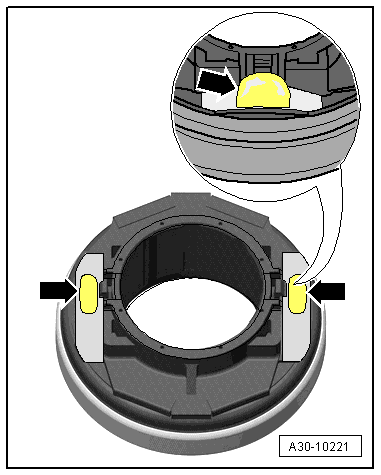

-- Lubricate the release bearing according to the specification. Refer to Figure.

-- Always clean the left flange shaft, the transmission housing in the area where the differential is accessed -arrow A- and the shaft seal -arrow B-.

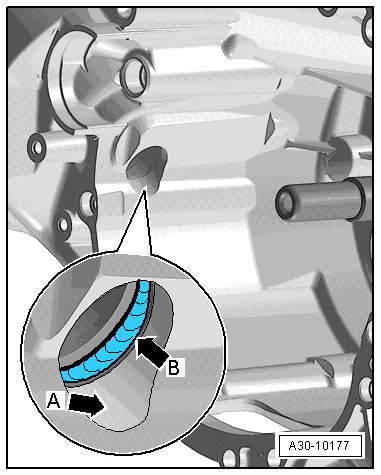

Fig 1: Identifying Access To Differential -Arrow A- And Shaft Seal -Arrow B-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace the shaft seal between the differential and transmission housing -arrow B- if it is damaged. Refer to LEFT FLANGE SHAFT SEAL WITH TRANSMISSION REMOVED .

-- Fill the area between the sealing lip and dust lip -Arrow B- halfway with sealing grease G 052 128 A1.

-- Clean the input shaft -arrow-.

Fig 2: Sliding Torque Converter Carefully Onto Input Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Lightly grease the input shaft splines with grease for clutch disc shaft splines G 000 100.

CAUTION:

Remove any grease on the pivot pin on the input shaft -arrow- all the way up to the splines before installation.

-- Slide the clutch module onto the input shaft carefully without tilting it.

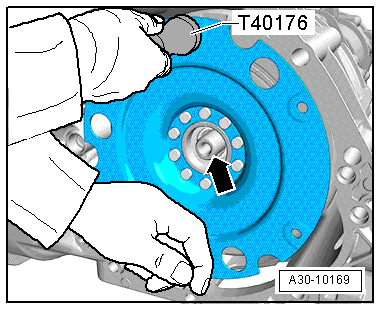

-- Remove the T40176 from the clutch module.

-- Rotate the clutch module -1- until the opening to the differential -arrow 3- is seen.

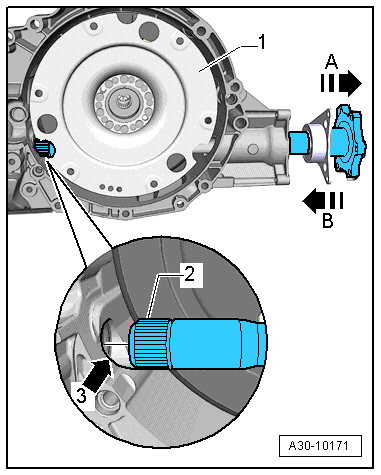

Fig 3: Rotating Clutch Module -1- Until Opening To Differential -Arrow 3- Is Seen

Courtesy of AUDI OF AMERICA, LLC

-- Insert the left flange shaft into the transmission in the direction of -arrow B- and guide the end of the shaft -2- into the shaft seal on the front differential -arrow 3-, keeping the shaft centered.

CAUTION:

Danger of damaging the shaft seal.

If the shaft is not centered, the shaft splines -2- will damage the shaft seal -arrow 3- between the differential and transmission housing.
Always replace a damaged shaft seal. Refer to LEFT FLANGE SHAFT SEAL WITH TRANSMISSION REMOVED .

-- Tighten the left flange shaft mounting bracket -arrows-. Tightening specification LEFT FLANGE SHAFT, CLUTCH MODULE, SPUR GEARS, GEARSHIFT SHAFT AND TRANSMISSION COVER OVERVIEW .

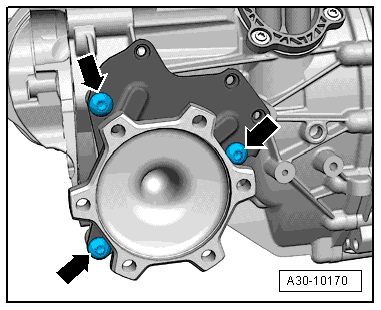

Fig 4: Identifying Bolts -Arrows- & Flange Shaft Mounting Bracket

Courtesy of AUDI OF AMERICA, LLC
