Lower Air Duct Pipe, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg and 2013 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Release and remove the charge air pressure hose from the charge air cooler on the lower left side. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS, CONNECTOR COUPLINGS .
-- Release and remove the charge air pressure hose from the charge air cooler on the upper right side. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS, CONNECTOR COUPLINGS .

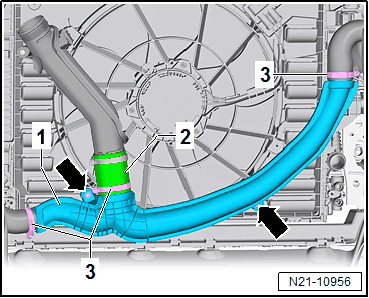

-- Remove the bolts -arrows-.
-- Loosen the clamps -3- and remove the charge air pressure hoses.
-- Remove the center air duct pipe. Refer to CENTER AIR DUCT PIPE, REMOVING AND INSTALLING .
-- Remove the air duct pipe -1-.
