Center Air Duct Pipe, Removing And Installing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the air duct hose by loosening the hose clamps -arrows-.

Fig 1: Charge Air Hose Clamps -Arrows- And Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

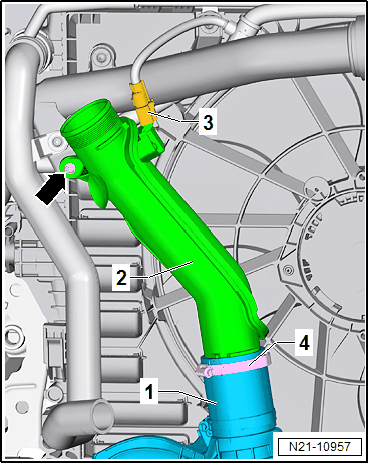

-- Release and remove the connector -3- from the Charge Air Pressure Sensor -G31-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow-.

-- Loosen the clamp -4- and remove the charge air pressure pipe -1-.

Installing

Install in reverse order of removal. Note the following:

-- Replace the O-rings after removing them.

Tightening Specifications

• Refer to OVERVIEW - CHARGE AIR SYSTEM
• Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS
