Overview - Impact Member, Vehicles Through My 2013

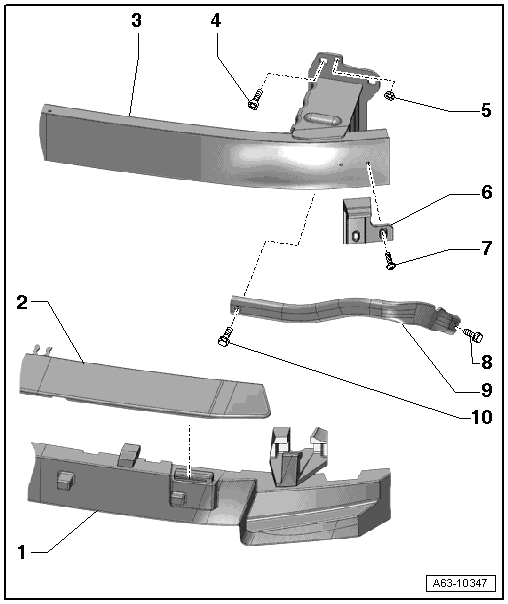

Fig 1: Overview - Impact Member, Vehicles Through My 2013

Courtesy of AUDI OF AMERICA, LLC

1. Molded Foam Piece
   • Removing and installing, refer to MOLDED FOAM PIECE, REMOVING AND INSTALLING .
2. Cover
   • For the molded foam part
3. Impact Member
   • Removing and installing, refer to IMPACT MEMBER, REMOVING AND INSTALLING .
4. Bolt
   • 30 Nm
   • Quantity: 3
5. Lock Washer
   • Quantity: 2
   • Secures the lock carrier
6. Spacer
   • For the bumper cover
   • Removing and installing, refer to BUMPER COVER SPACER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2013 .
   • Adjusting, refer to BUMPER COVER, ADJUSTING .
7. Bolt
   • 7 Nm
   • Quantity: 2
8. Bolt
   • 9 Nm
9. Connecting Brace
10. Bolt
    • 23 Nm
