Overview - Impact Member, Vehicles From My 2014

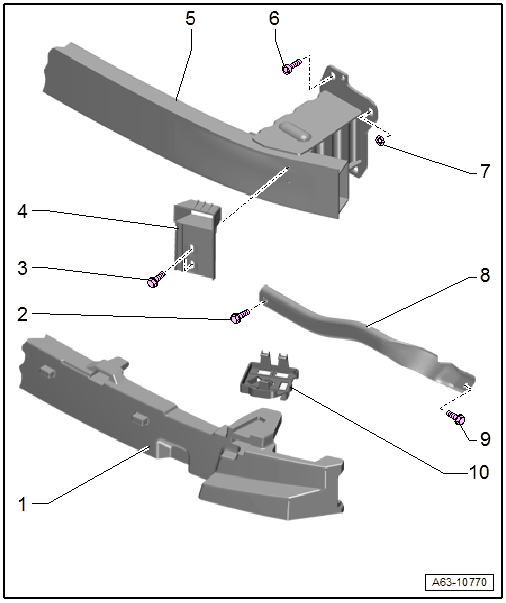

Fig 1: Overview - Impact Member, Vehicles From My 2014

Courtesy of AUDI OF AMERICA, LLC

1. Molded Foam Piece
   • Removing and installing, refer to MOLDED FOAM PIECE, REMOVING AND INSTALLING .
2. Bolt
   • 23 Nm
3. Bolt
   • 7 Nm
   • Quantity: 2
4. Spacer
   • For the bumper cover
   • Removing and installing, refer to BUMPER COVER SPACER, REMOVING AND INSTALLING, VEHICLES FROM MY 2014 .
   • Adjusting, refer to BUMPER COVER, ADJUSTING .
5. Impact Member
   • Removing and installing, refer to IMPACT MEMBER, REMOVING AND INSTALLING .
6. Bolt
   • 30 Nm
   • Quantity: 3
7. Lock Washer
   • Quantity: 2
   • Secures the lock carrier
8. Connecting Brace
9. Bolt
   • 9 Nm
10. Mount
    • For Garage Door Opener Control Module -J530-
