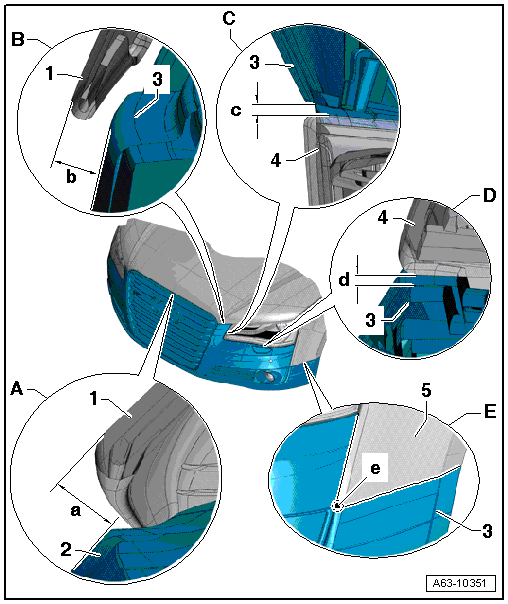

Bumper Cover Gap Dimension
- A -
Hood to Radiator Grille
- Gap dimension -a- = 4.5 ± 0.8 mm
-1- Front lid
-2- Radiator grille
- Adjusting, refer to BUMPER COVER, ADJUSTING .
- B -
Hood to Front Bumper Cover
- Gap dimension -b- = 4.5 to 4.7 mm
-1- Front lid
-3- Bumper cover
- Adjusting, refer to BUMPER COVER, ADJUSTING .
- C -
Front Bumper Cover to the Headlamp Housing
- Gap dimension -c- = 2.5 ± 1.3 mm
-3- Bumper cover
-4- Headlamp housing
- D -
Front Bumper Cover to the Headlamp Housing
- Gap dimension -d- = 2.0 ± 0.5 mm
-3- Bumper cover
-4- Headlamp housing
- E -
Front Bumper Cover to the Front Fender
- Gap dimension -e- = zero gap
-3- Bumper cover
-5- Front fender
