Securing On Engine And Transmission Holder

Special tools and workshop equipment required

Engine And Transmission Holder VW6095
Holding Plate VW309A
Hook And Support Tool T40197
Hook and Support Tool T40294

CAUTION:

Do not use the Hook And Support Tool T40197 for the repair (Refer to Sensor Module --, WITH INTEGRATED TRANSMITTERS AND SENSORS -G612-, -G632-, -G676 - AND Circuit Board 3 --, REMOVING AND INSTALLING ) - There is a risk of injury.

Only use the Hook and Support Tool T40294 for this operation.

Procedure

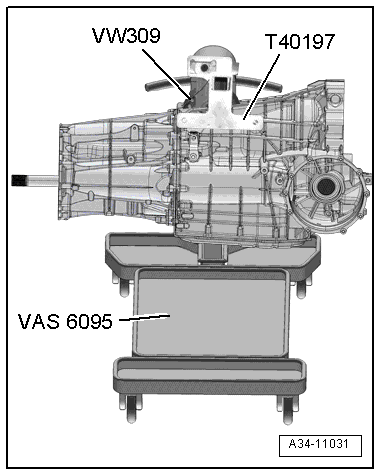

Fig 1: Identifying Transmission Holding Fixture Setup

Courtesy of AUDI OF AMERICA, LLC

Hold the transmission with the Shop Crane VAS6100. Refer to TRANSMISSION, TRANSPORTING .

-- Attach the Holding Plate VW309A to the Hook And Support Tool T40197.

-- Place the transmission using the Shop Crane VAS6100 in the Engine And Transmission Holder VAS6095.

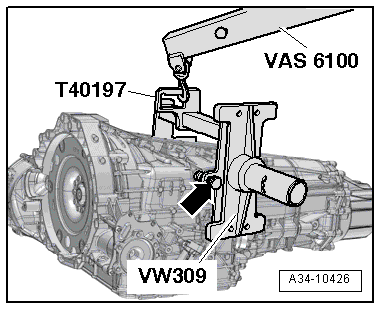

Fig 2: Identifying Transmission Holding Fixture Setup

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The vents for the transmission housing and final drive must be closed before turning a filled transmission with oil pan upward on the engine and transmission holder.
