Transmission, Transporting
Special tools and workshop equipment required
- Shop Crane VAS6100
- Hook And Support Tool T40197
- Hook and Support Tool T40294
CAUTION:
Do not use the Hook And Support Tool T40197 for the repair (Refer to Sensor Module --, WITH INTEGRATED TRANSMITTERS AND SENSORS -G612-, -G632-, -G676 - AND Circuit Board 3 --, REMOVING AND INSTALLING ) - There is a risk of injury.
Only use the Hook and Support Tool T40294 for this operation.
Procedure
- The transmission is removed.
CAUTION:
Transmission components could be damaged if they are not set down correctly.
- Do not set the transmission on the ATF pan.

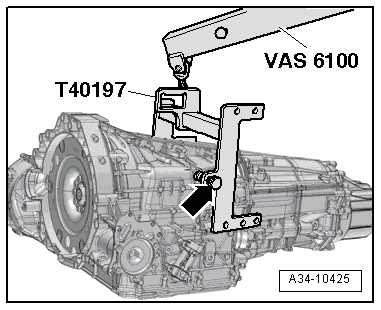

-- Engage the Hook And Support Tool T40197 in the holes on the right side of the transmission and secure it to the left side of the transmission with the knurled bolt -arrow-.
-- Lift and transport the transmission with the Shop Crane VAS6100.
