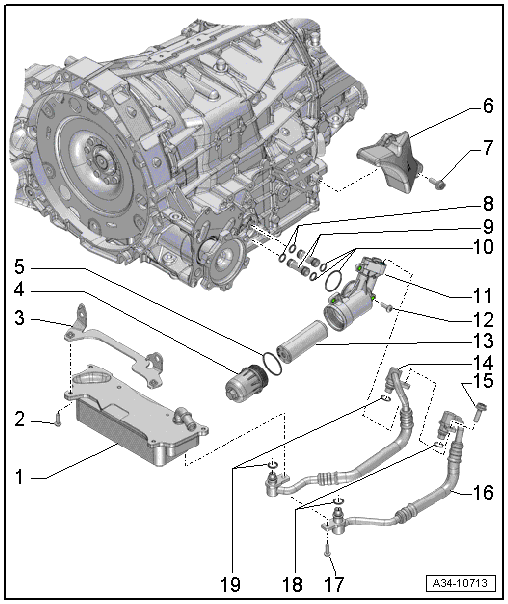

Overview - ATF Circuit: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 Audi S6, 2017 Audi S6, 2016 Audi S6, 2016 Audi S4, and 2015 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
- ATF Cooler
- Refer to ATF COOLER, REMOVING AND INSTALLING
- Bolt
- 9 N.m
- Bracket
- For the ATF cooler
- Cover
- 8 N.m
- For ATF filter housing
- Multiple variation, depending on version.
Note the allocation
- O-Ring
- Replace
- Coat with ATF before installing
- Cover
- Bolt
- 20 N.m
- O-Rings
- Are replaced together with the ATF line (-item 9- 9.)
- ATF Lines
- Replacing. Refer to ATF FILTER HOUSING, REMOVING AND INSTALLING .
- O-Rings
- Replace
- Coat with ATF before installing
- ATF Filter Housing
- Replace after removing
- Multiple variations, depending on version. Note the allocation
- Refer to ATF FILTER HOUSING, REMOVING AND INSTALLING
- Bolt
- 10 N.m
- ATF Filter
- Refer to ATF FILTER, REMOVING AND INSTALLING
- ATF Line/Hose Line
- Removing and Installling. Refer to ATF LINES, REMOVING AND INSTALLING
- Cleaning. Refer to Clean
- Bolt
- 20 N.m
- ATF Line/Hose Line
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING
- Cleaning. Refer to Clean
- Bolt
- 8 N.m
- O-Rings
- Replace
- Coat with ATF before installing
- O-Rings
- Replace
- Coat with ATF before installing
