Transmission cover, servicing: Notes
WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required

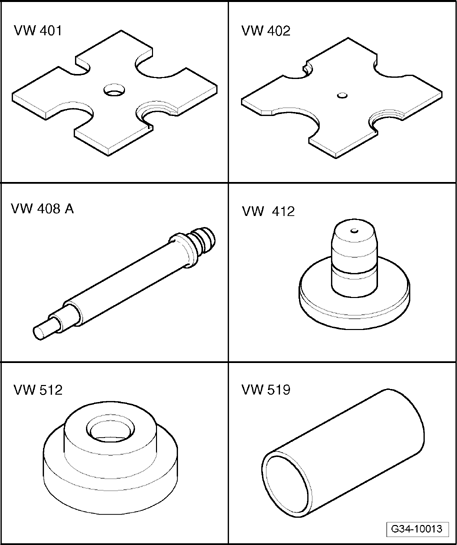

- Thrust plate VW 401
- Thrust plate VW 402
- Press tool VW 408 A
- Thrust disc VW 412
- Thrust pad VW 512
- Sleeve VW 519
Special tools, testers and auxiliary items required

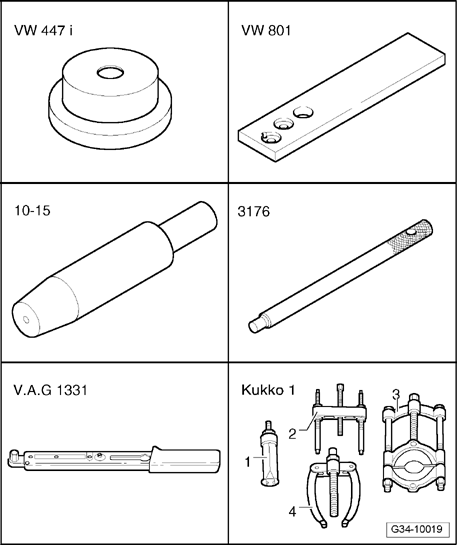

- Thrust pad VW 447 i
- Holding fixture VW 801
- Guide pin 10 - 15
- Centering mandrel 3176
- Torque wrench V.A.G 1331
- - 1 - internal puller Kukko 21/2
- - 1 - Internal puller Kukko 21/5
- - 1 - Internal puller Kukko 21/6
- - 4 - Counter-support Kukko 22/2

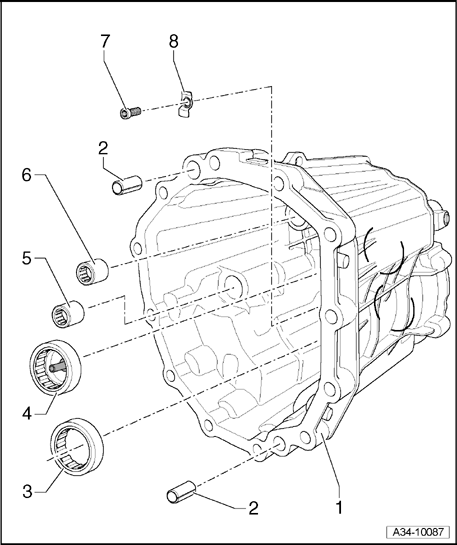

1 - Transmission cover
2 - Dowel sleeve
- 2 x
- For centralizing transmission cover on bearing housing
- Drive out and in with drift 3121
3 - Roller bearing
- Bearing for output shaft in transmission cover
- Always replace
- Pulling out Pulling roller bearing for output shaft out of transmission cover
- Pressing in Pressing new roller bearing for output shaft into transmission cover as far as the stop (press in carefully)
4 - Roller bearing
- Bearing for input shaft in transmission cover
- With lubricating unit
- Always replace
- Pulling out Pulling roller bearing for input shaft out of transmission cover
- Pressing in Pressing new roller bearing for input shaft into transmission cover as far as stop (press in carefully)
5 - Ball sleeve
- For selector rod for 1st and 2nd gear
- Pulling out Pulling out ball sleeve - C - from transmission cover
- Driving in Driving ball sleeve into transmission cover until flush
6 - Ball sleeve
- For selector rod for 5th and 6th gear
- Pulling out Pulling out ball sleeve - C - from transmission cover
- Driving in Driving ball sleeve into transmission cover until flush
7 - Multi-point socket head bolt, 24Nm
8 - Retaining plate
- Installation position Securing needle roller bearing and needle bearing in transmission cover.
