Oil Pan Upper

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine from the vehicle. < Ref. to REMOVAL , Engine Assembly. >
  2. Remove the water pump. < Ref. to REMOVAL , Water Pump. >
  3. Remove the thermostat cover. < Ref. to REMOVAL , Thermostat. >
  4. Remove the water pipe assembly. < Ref. to WATER PUMP , COMPONENT, General Description. >
  5. Remove the oil pan. < Ref. to OIL PAN , REMOVAL, Oil Pan and Strainer. >
  6. Remove the bolts which secure oil pan upper to cylinder block, and remove the oil pan upper.
    Fig 1: Locating Oil Pan Upper Bolts Of Cylinder Block
    G07665073Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the baffle plate from the oil pan upper.
  8. Remove the oil strainer from the oil pan upper.
  9. Remove stud bolts from the oil pan upper.

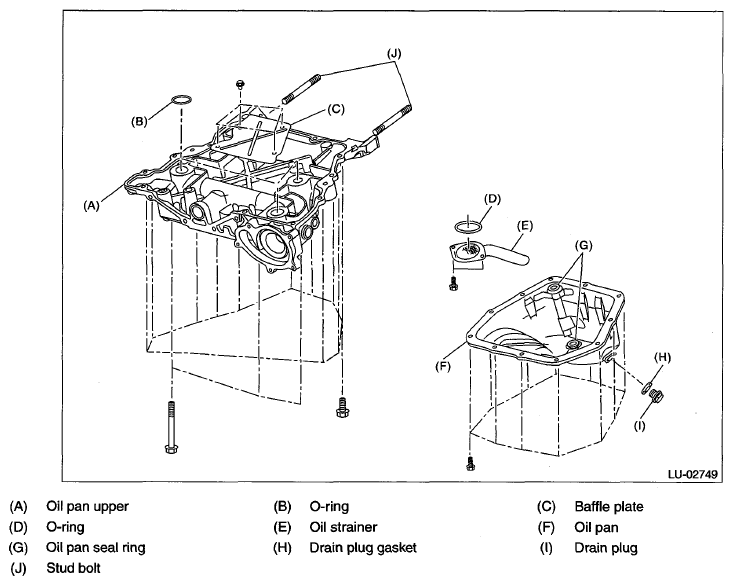

    Fig 2: Exploded View Of Oil Pan
    G07665074Courtesy of SUBARU OF AMERICA, INC.
