Oil Pan And Strainer

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

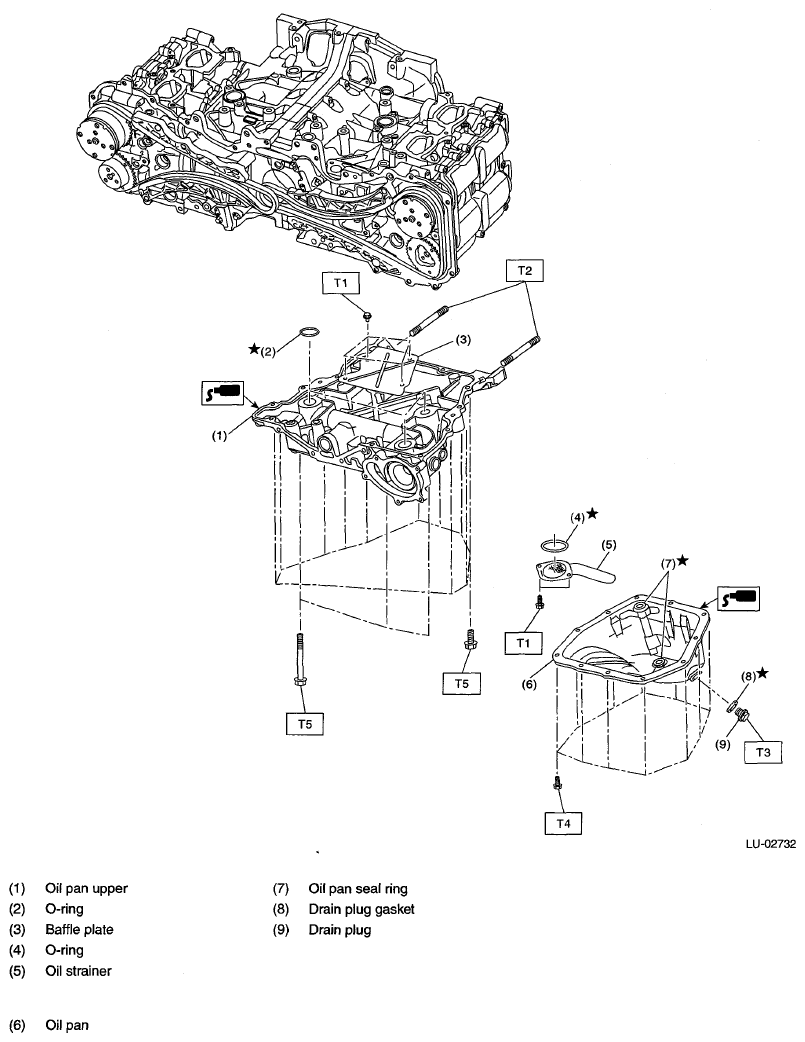

Fig 1: Exploded View Of Oil Pan And Strainer

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m(kgf-m, ft-lb)

T1. 6.4(0.7, 4.7)

T2: 18 (1.8, 13.3)

T3: 41.7(4.3, 30.8)

T4: < Ref. to OIL PAN , INSTALLATION, Oil Pan and Strainer. >

T5: < Ref. to OIL PAN UPPER , INSTALLATION, Oil Pan and Strainer. >
