Oil Pan Upper
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before installing the oil pan upper, clean the mating surface of oil pan upper and cylinder block.

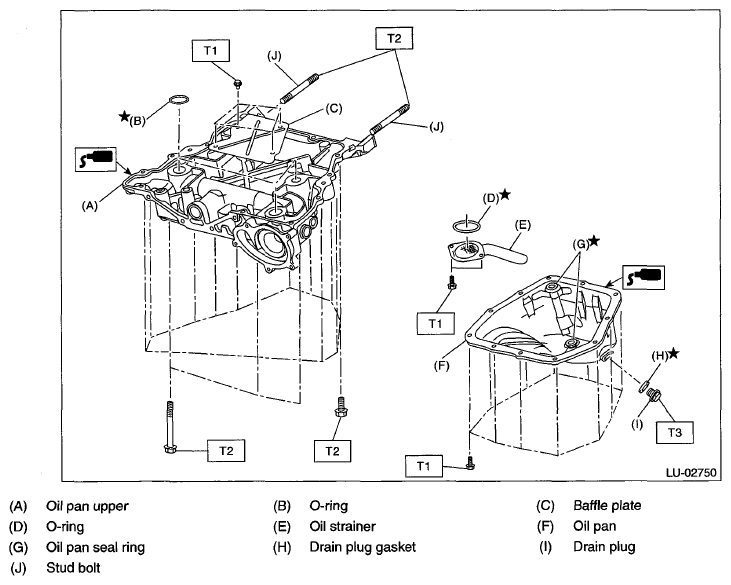

- Attach the stud bolts to the oil pan upper.
- Attach the oil strainer to the oil pan upper.NOTE: Use new O-rings.
- Attach the baffle plate to the oil pan upper.
Tightening torque:
T1:6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
T2:18 N.m (1.8 kgf-m, 13.3 ft-lb)
T3:41.7 N.m (4.3 kgf-m, 30.8 ft-lb)

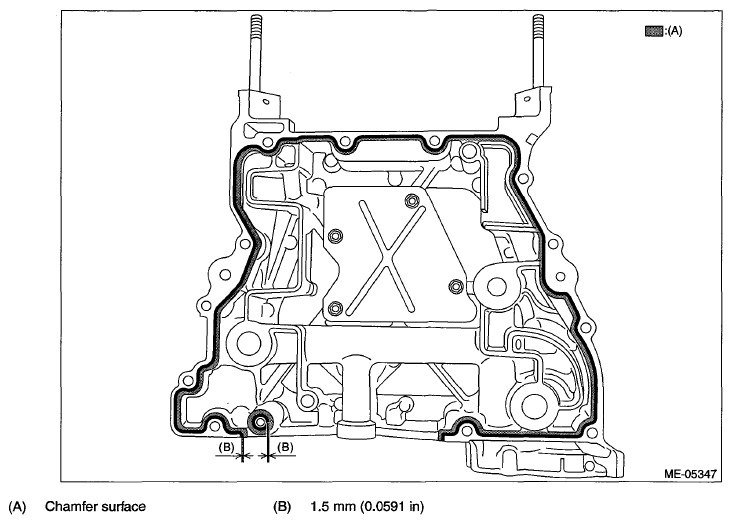

- Apply liquid gasket to the mating surface of the oil pan upper as shown in the figure, and install the oil pan upper to the cylinder block.CAUTION: Be careful not to apply any liquid gasket to the O-ring.NOTE:
- Use new O-rings.
- Install within 5 min. after applying liquid gasket.
- Apply liquid gasket 1.5 mm (0.0591 in) outside from the chamfer surface. However, application of liquid gasket on the chamfer surface around the bolt hole is allowed.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100) or equivalent
Liquid gasket applying diameter:
5±1 mm (0.1969±0.0394 in)
- Tighten the bolts to install the oil pan upper to the cylinder block in the numerical order.NOTE: After tightening, if the liquid gasket is squeezed out onto the seal surface of the chain cover, completely remove any squeezed-out liquid gasket.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the oil pan. < Ref. to OIL PAN , INSTALLATION, Oil Pan and Strainer. >
- Install the water pipe assembly. < Ref. to WATER PUMP , COMPONENT, General Description. >
- Install the thermostat cover. < Ref. to INSTALLATION , Thermostat. >
- Install the water pump. < Ref. to INSTALLATION , Water Pump. >
- Lower the vehicle.
- Install the engine to the vehicle. < Ref. to INSTALLATION , Engine Assembly. >
- Refill the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
