Fuel Pressure: Inspection

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before removing the fuel pressure gauge, release the fuel pressure.
Be careful not to spill fuel.
Catch the fuel from hoses using a container or cloth.

Remove the collector cover.
Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler lid and remove the fuel filler cap.
Disconnect the fuel delivery hose from fuel damper, and connect fuel pressure gauge.
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.
1. Attach ST to the fuel delivery pipe and push ST in the direction of arrow mark to disconnect the quick connector of the fuel delivery hose.
  ST 42099AE000 QUICK CONNECTOR RELEASE

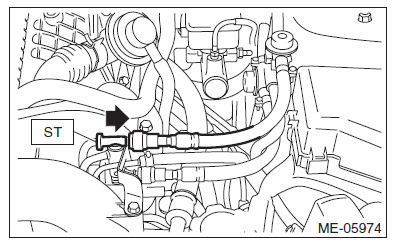

  Fig 1: Identifying Quick Connector Release
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect the fuel pressure gauge with ST1 and ST2.
  NOTE: ST1 is a SUBARU genuine part.
  ST1 42075AG690 FUEL HOSE
  ST2 18471AA000 FUEL PIPE ADAPTER

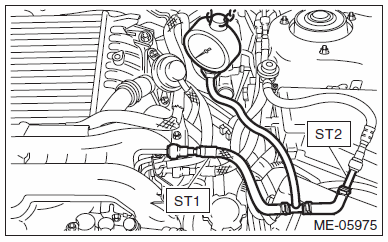

  Fig 2: Connecting Fuel Pressure Gauge To Fuel Damper
  Courtesy of SUBARU OF AMERICA, INC.
Start the engine.
Check the fuel pressure while disconnecting pressure regulator vacuum hose from intake manifold.
NOTE:
- The fuel pressure gauge registers 10 to 20 kPa (0.1 to 0.2 kgf/cm² , 1 to 3 psi) higher than standard values during high-altitude operations.
- If the fuel pressure is out of specification, check or replace the fuel pump, fuel line, pressure regulator and pressure regulator vacuum hose.
Fuel pressure:

Standard

284 - 314 kPa (2.9 - 3.2 kgf/cm ² , 41 - 46 psi)
After connecting the pressure regulator vacuum hose, recheck the fuel pressure.
NOTE:
- The fuel pressure gauge registers 10 to 20 kPa (0.1 to 0.2 kgf/cm² , 1 to 3 psi) higher than standard values during high-altitude operations.
- If the fuel pressure is out of specification, check or replace the fuel pump, fuel line, pressure regulator and pressure regulator vacuum hose.
Fuel pressure:

Standard

230 - 260 kPa (2.35 - 2.65 kgf/cm ² , 33 - 38 psi)
After inspection, install the related parts in the reverse order of removal.

NOTE: For information about connecting fuel delivery hose, refer to "Fuel Delivery, Return & Evaporation Lines". < Ref. to CONNECTING THE FUEL DELIVERY HOSE, FUEL RETURN HOSE AND FUEL HOSE , INSTALLATION, Fuel Delivery, Return and Evaporation Lines. >
