Satellite Radio Antenna Cable: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
Upper satellite radio antenna cable
- Lower the headliner. Refer to: HEADLINER - LOWERING .
- Remove the glove compartment. Refer to: Glove Compartment .
- Disconnect the electrical connectors. separate the wiring harness guides and remove the lower satellite antenna cable.

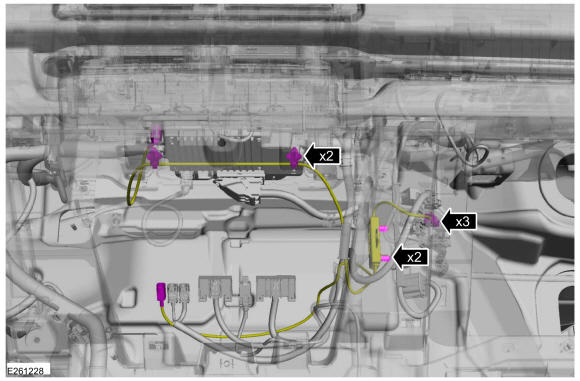

Lower satellite radio antenna cable
- Remove the ACM. Refer to: Audio Front Control Module (ACM)
- Remove the glove compartment. Refer to: Glove Compartment .
- Disconnect the electrical connectors. separate the wiring harness guides and remove the lower satellite antenna cable.
