Headliner - Lowering

Special Tool(s) / General Equipment

1. Remove the following items:
   1. On both sides. Remove the A-pillar trim panel. Refer to:A-Pillar Trim Panel .
   2. On both sides. Remove the B-pillar trim panel. Refer to:B-Pillar Trim Panel .
   3. On both sides. Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
   4. On both sides. Remove the D-pillar trim panel. Refer to: D-Pillar Trim Panel - Short Wheelbase . Refer to: D-Pillar Trim Panel - Long Wheelbase .

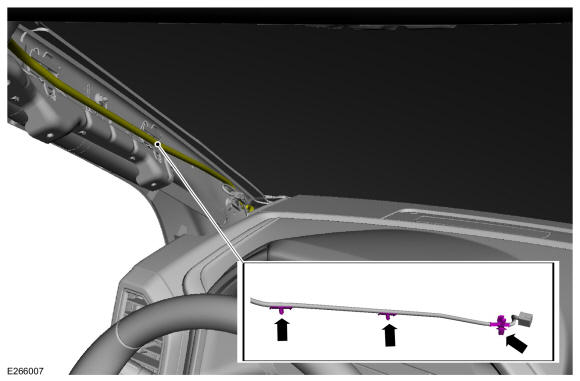

2. On LH side. Release the headliner wiring harness retainers and position the headliner wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

3. On RH side. Release the headliner wiring harness retainers and position the headliner wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

4. If equipped with IPMA. Release the clips and remove the IPMA cover.

   Courtesy of FORD MOTOR COMPANY

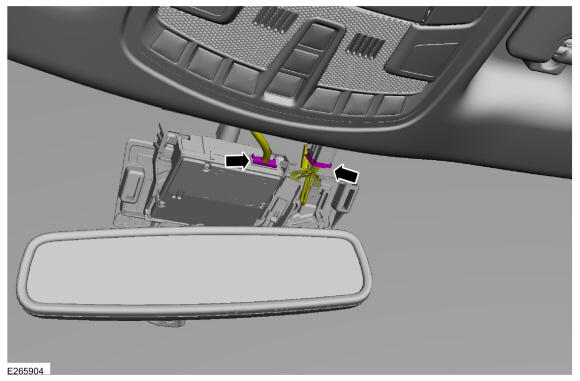

5. If equipped with IPMA. Disconnect the IPMA and the rain sensor wiring harness electrical connectors.

   Courtesy of FORD MOTOR COMPANY

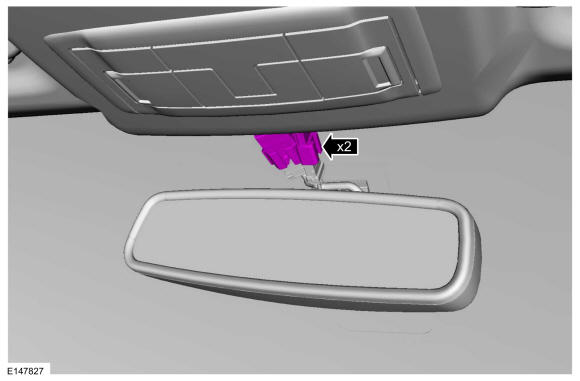

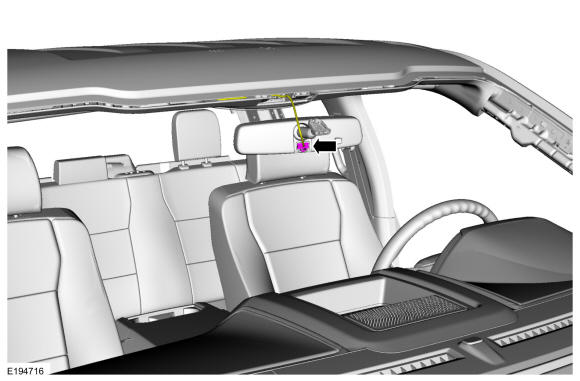

6. If equipped. Disconnect the rear view mirror electrical connector.

   Courtesy of FORD MOTOR COMPANY

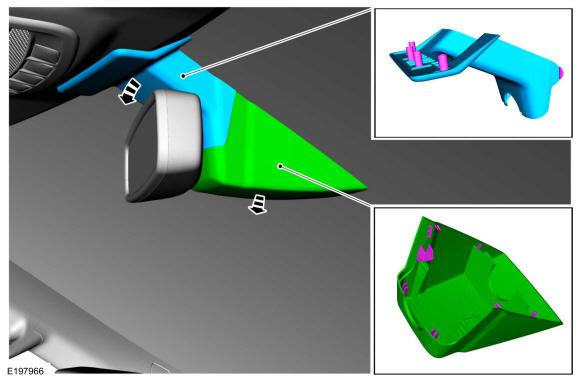

7. If equipped. Release the clips and remove the rain sensor outer covers.

   Courtesy of FORD MOTOR COMPANY

8. If equipped. Disconnect the rain sensor electrical connectors.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: RH shown, LH similar.

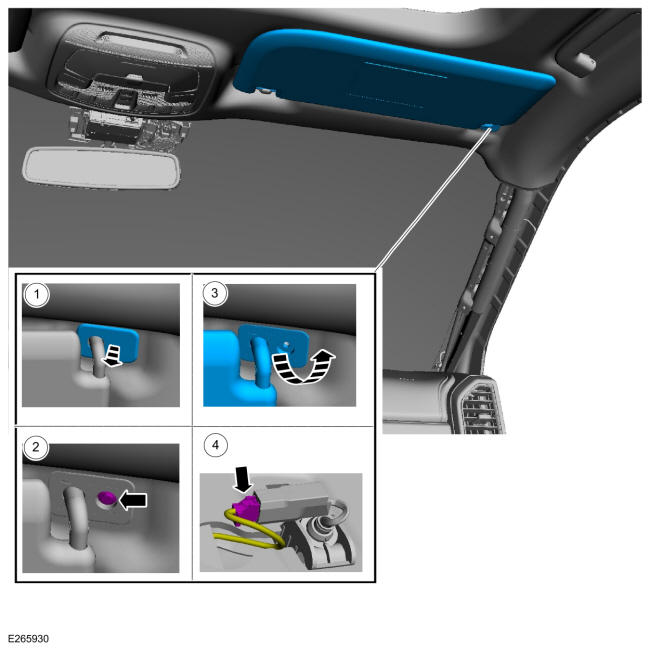

   On both sides. Remove the sun visor.

   1. Remove the bolt cover.
   2. Remove the bolt.
   3. Remove the sun visor.
   4. Disconnect the sun visor electrical connector.

   Courtesy of FORD MOTOR COMPANY

10. NOTE: RH shown, LH similar.

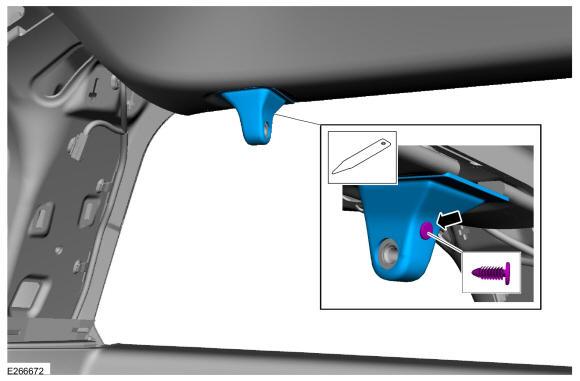

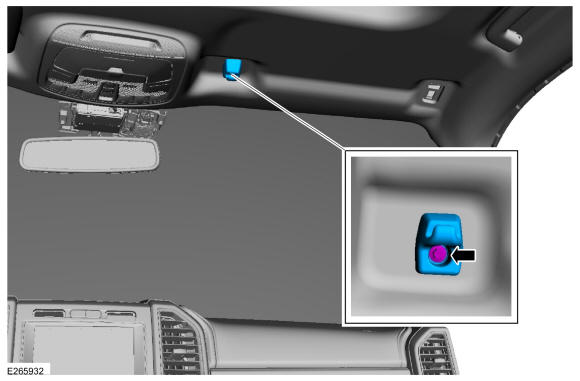

    On both sides. Remove the bolt and the sun visor clip.

    Courtesy of FORD MOTOR COMPANY

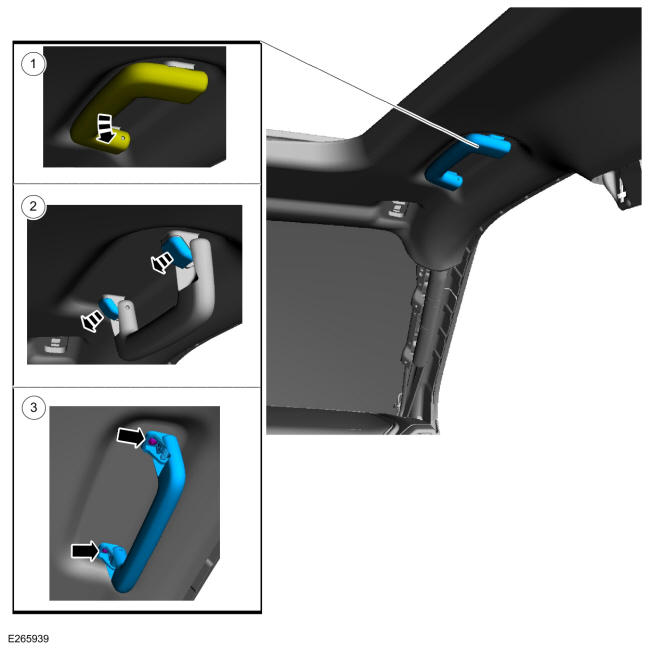

11. On RH side. Remove the front passenger assist handle.
    1. Position the front passenger assist handle down.
    2. Remove the bolt covers.
    3. Remove the bolts.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: RH shown, LH similar.

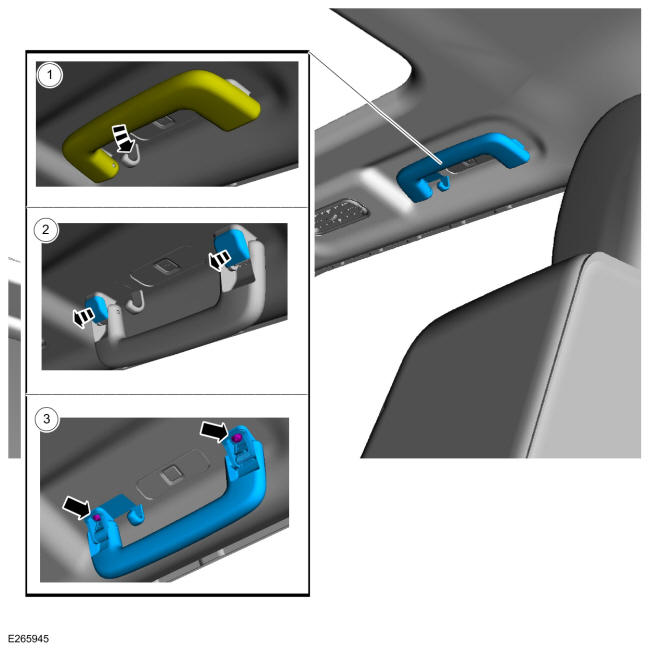

    On both sides. Remove the rear passenger assist handle.

    1. Position the rear passenger assist handle down.
    2. Remove the bolt covers.
    3. Remove the bolts.

    Courtesy of FORD MOTOR COMPANY

13. NOTE: RH shown, LH similar.

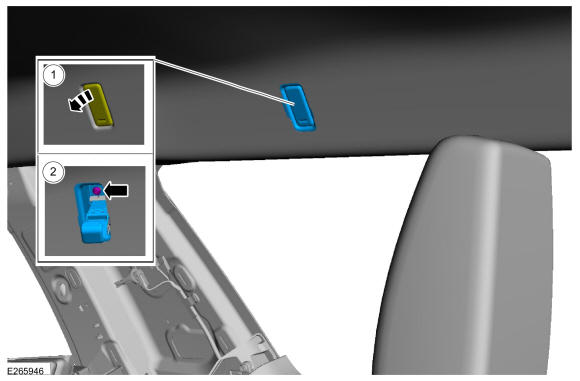

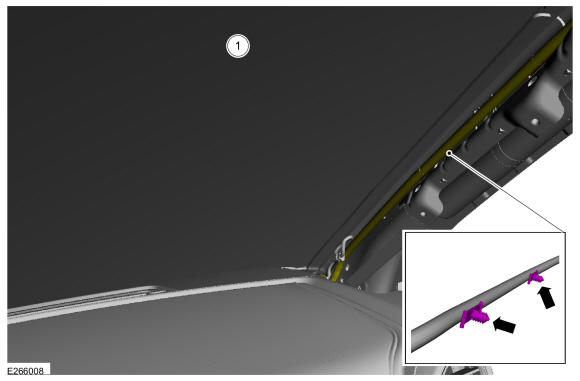

    On both sides. Remove the rear coat hook.

    1. Position the rear coat hook down.
    2. Remove the bolt.

    Courtesy of FORD MOTOR COMPANY

14. NOTE: LH shown, RH similar.

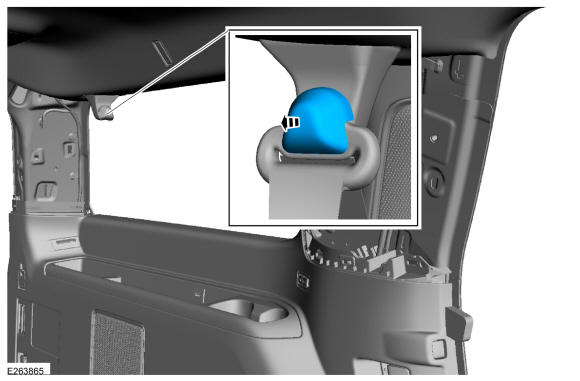

    On both side of vehicles equipped with long wheel base. Remove the third row outer seatbelt retractor D-ring bolt cover.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: LH shown, RH similar.

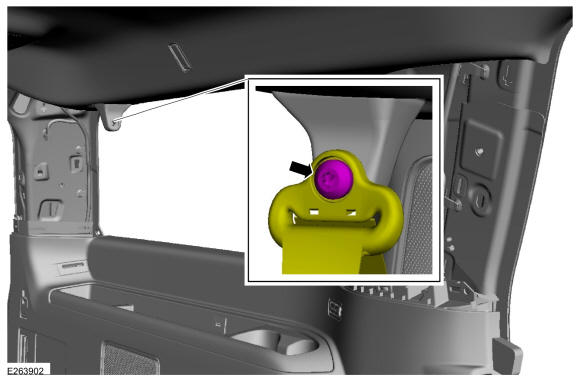

    On both side of vehicles equipped with long wheel base. Remove the third row outer seatbelt retractor D-ring bolt.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

16. NOTE: LH shown, RH similar.

    On both side of vehicles equipped with long wheel base. Remove the pin-type retainer and the third row outer seatbelt retractor bracket cover. Use the General Equipment: Interior Trim Remover.

    Courtesy of FORD MOTOR COMPANY

17. On vehicles equipped with long wheel base. Disconnect the third row center seatbelt retractor from the third row center seatbelt retractor mini-buckle.
    1. Press the release button. Use the General Equipment: Flat-Bladed Screwdriver
    2. Release the third row center seatbelt retractor.

    Courtesy of FORD MOTOR COMPANY

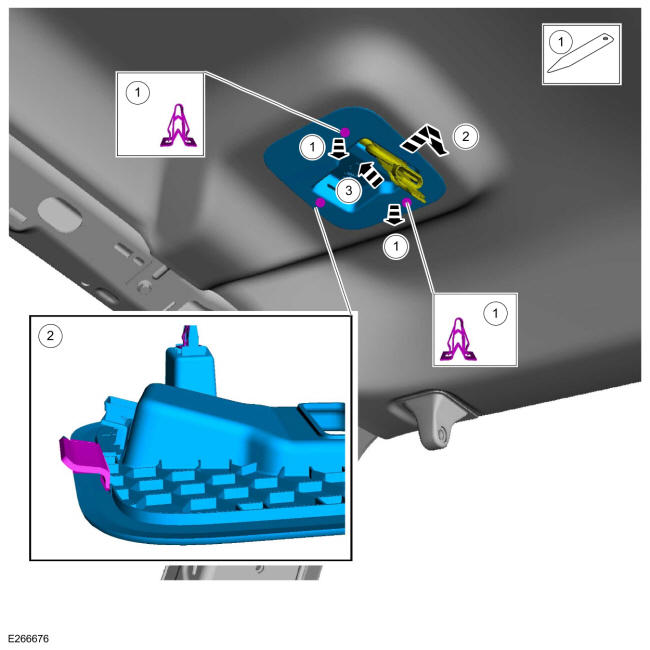

18. Remove the third row center seatbelt retractor cover.
    1. Release the clips. Use the General Equipment: Interior Trim Remover
    2. Slide cover forward and down to release the rear tab.
    3. Feed the third row center seatbelt through.

    Courtesy of FORD MOTOR COMPANY

19. NOTE: Long wheel base with roof opening panel shown, all others similar.

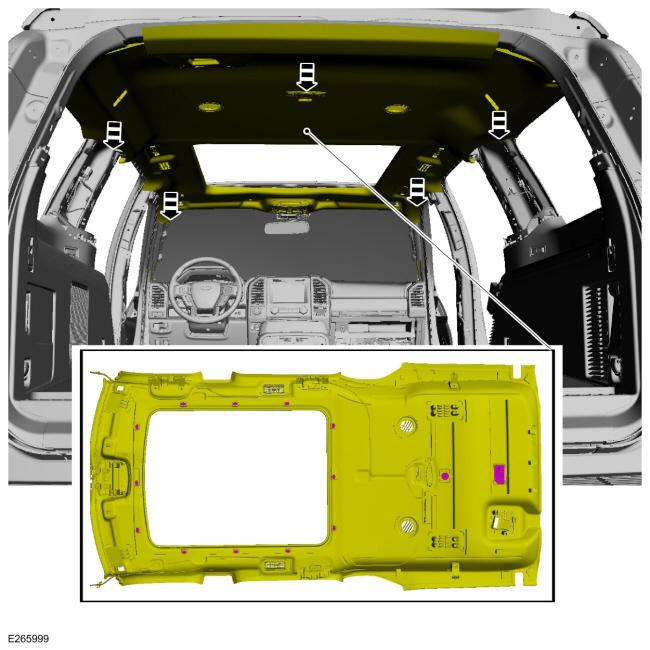

    Release the magnets and lower the headliner.
