Active Noise Control Microphone: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the headliner. Refer to: HEADLINER - LOWERING .

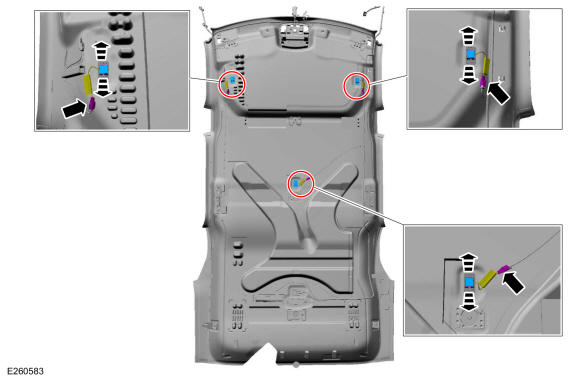

  2. Disconnect the electrical connector, release the tabs and remove the active noise control microphone.
GFD271146Courtesy of FORD MOTOR COMPANY
