Section 1094 (Automatic Transmission - 10R80 (2 Of 2)): Overhaul: Transmission

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-001 (T50T-100-A)Slide Hammer
Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C)Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	205-1018Installation Tube
Courtesy of FORD MOTOR COMPANY	307-003 (T57L-500-B)Holding Fixture, Transmission
Courtesy of FORD MOTOR COMPANY	307-091Handle, Torque Converter, TKIT-2009TC-F

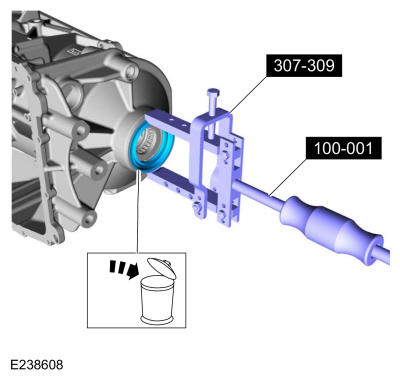

Courtesy of FORD MOTOR COMPANY	307-309Remover, Torque Converter Seal, TKIT-1994-FMH/FLMH, TKIT-1994-LMH/MH, TKIT-1994-FH
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A)Retainer, Torque Converter, TKIT-1998-LM (NavigatoR), TKIT-1997-F/FLM/LT
Courtesy of FORD MOTOR COMPANY	307-458Socket, Output Shaft Locknut, TKIT-2003N-F
Courtesy of FORD MOTOR COMPANY	307-549Installer, Shift Shaft Fluid Seal, TKIT-2005D1-F1
Courtesy of FORD MOTOR COMPANY	307-5842-6 Spring Compressor, TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	307-589Overdrive clutch and balance piston service set, TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	307-651Bracket, Pump Remover/Installer
Courtesy of FORD MOTOR COMPANY	307-651-01Adapter for 307-651 (Super Sub Assembly Lifting)
Courtesy of FORD MOTOR COMPANY	307-653Sizer, Input Shaft Teflon Seal
Courtesy of FORD MOTOR COMPANY	307-660Installer, Front Pump Seal, TKIT-2009C-F, TKIT-2009C-ROW

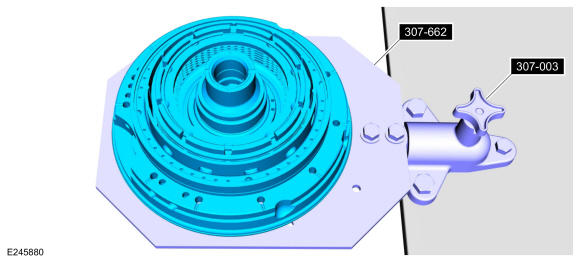

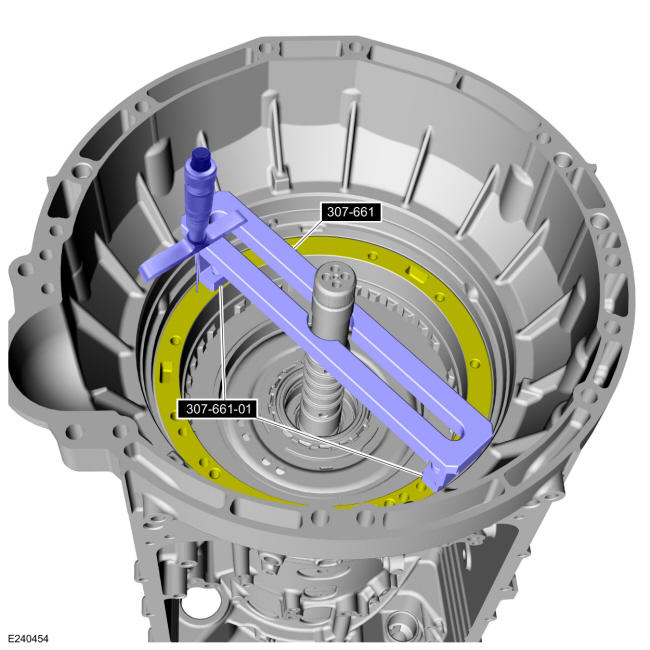

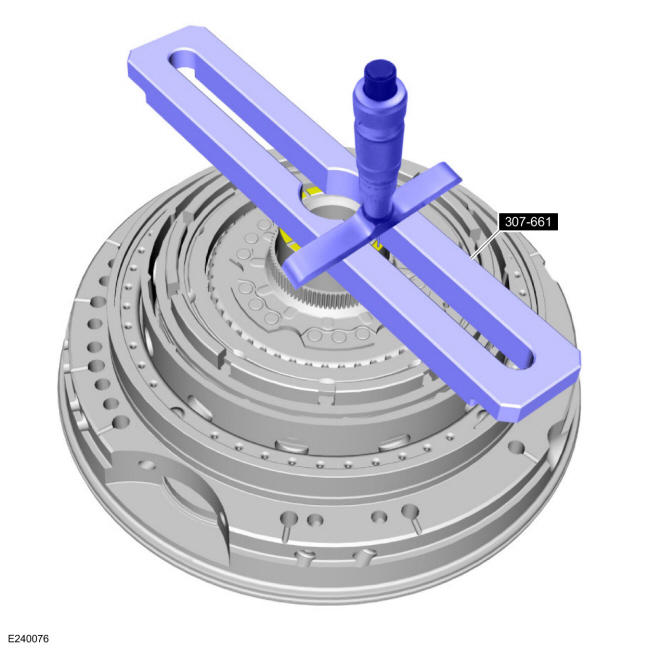

Courtesy of FORD MOTOR COMPANY	307-661Gauge, End Play, TKIT-2009C-F, TKIT-2009C-ROW
Courtesy of FORD MOTOR COMPANY	307-662Gauge, Clutch Pack Endplay, TKIT-2009C-F, TKIT-2009C-ROW
Courtesy of FORD MOTOR COMPANY	307-691Tester, Torque Convertor Leak
Courtesy of FORD MOTOR COMPANY	307-732Tool Kit, Torque Converter Flusher
Courtesy of FORD MOTOR COMPANY	307-733Compressor, Clutch Piston

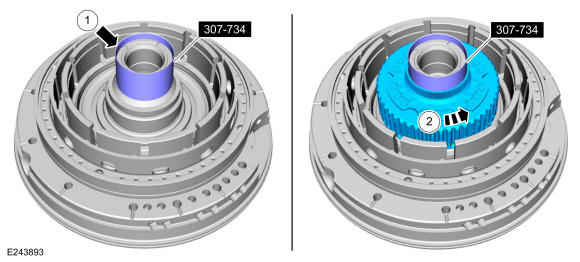

Courtesy of FORD MOTOR COMPANY	307-734Tool, OWC Alignment
Courtesy of FORD MOTOR COMPANY	307-736Installer, Pump Drive Gear Bearing
Courtesy of FORD MOTOR COMPANY	307-737Press Tool, Oil Pump Drive Idler Gear

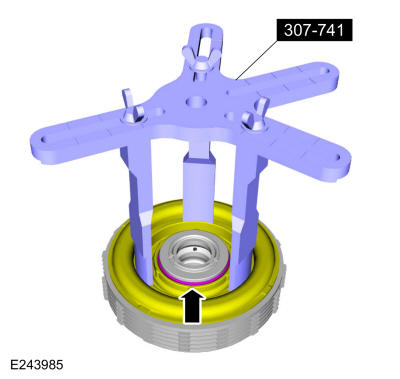

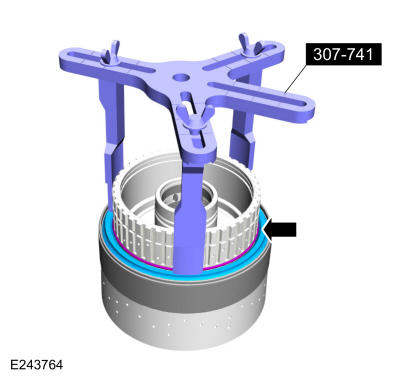

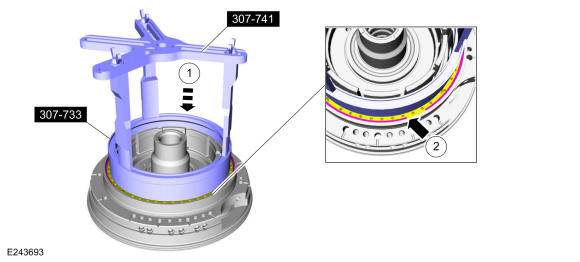

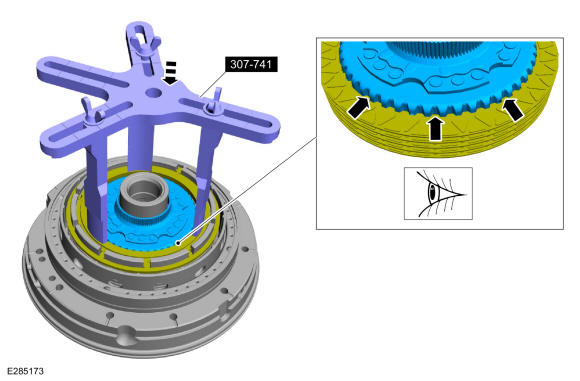

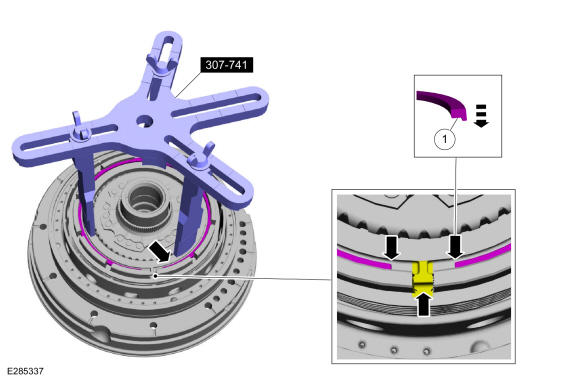

Courtesy of FORD MOTOR COMPANY	307-741Spring Compressor, F Clutch
Courtesy of FORD MOTOR COMPANY	307-743Remover, Pump Drive Gear

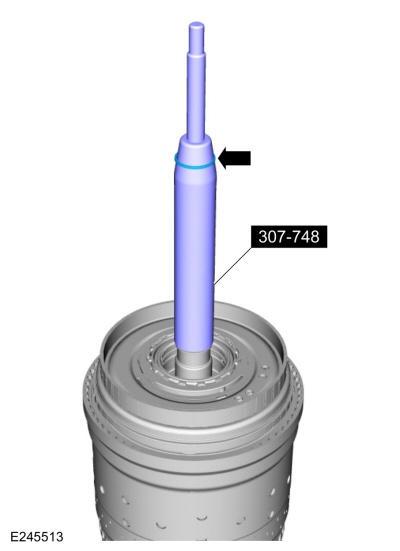

Courtesy of FORD MOTOR COMPANY	307-746Remover, Transmission Wiring Harness Connector
Courtesy of FORD MOTOR COMPANY	307-747Installer/ Sizer, Input Shaft Solid Sealing Rings; Large
Courtesy of FORD MOTOR COMPANY	307-748Installer/Sizer, Input Shaft Solid Sealing Rings; Small

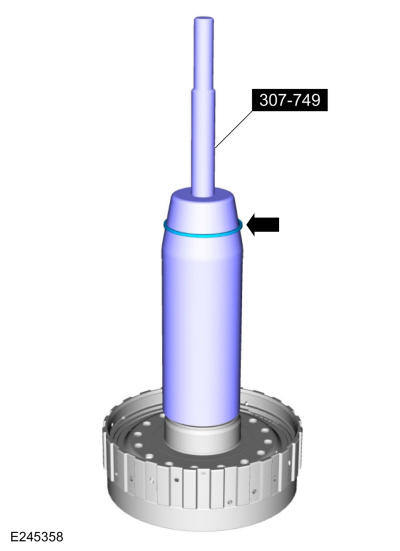

Courtesy of FORD MOTOR COMPANY	307-749Installer/Sizer, R2-S3 Shaft Solid Seal
Courtesy of FORD MOTOR COMPANY	307-750Installer, Converter Seal
Feeler Gauge
Hydraulic Press
Punch
Wooden Block
Magnet

Materials

All vehicles

1. The following components are discarded during disassembly and must be replaced:

   Description	Part Number
   Gasket and oil seal kit	7153
   Transmission fluid auxiliary pump tube seal	7J135
   Output shaft flange bolt (RWD only)	7N134
   Output shaft nut (RWD only)	7085
   Manual control shaft-to-TR sensor roll pin	7G100

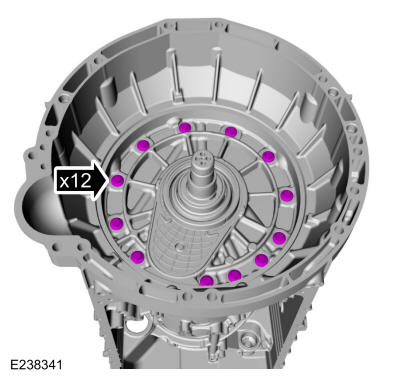

   Front support assembly bolts	7N134
   D clutch balance dam	7D343

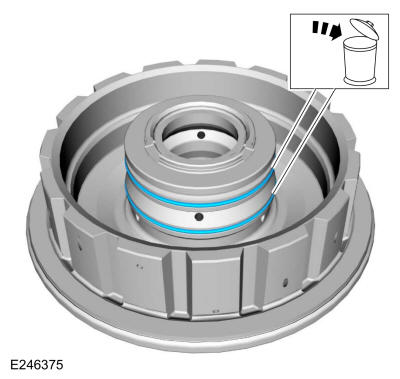

   E clutch piston	7A262

2. For information on component views and base part numbers. Refer to: Transmission Description .
3. Using the special tool, install the transmission on a bench. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.

   Courtesy of FORD MOTOR COMPANY

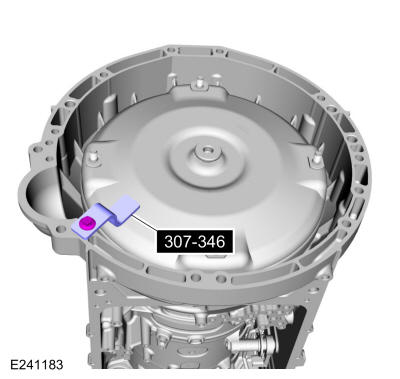

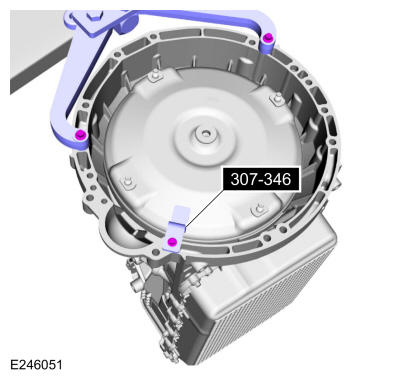

4. Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

5. Using the special tool, remove the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

6. A new or remanufactured torque converter must be installed if one or more of the following statements are true:
   • The sealing surface has a groove worn from the seal.
   • A torque converter malfunction has been determined based on complete diagnostic procedures.
   • The torque converter stud or studs, threaded pads, impeller hub or bushing are damaged.
   • The torque converter exhibits external discoloration (due to overheating).
   • There is evidence of water or antifreeze contamination.

   Courtesy of FORD MOTOR COMPANY

   Flush The Torque Converter With The Transmission Cooling System Heated Flusher

7. NOTE: Use transmission fluid specified for this transmission. Do not use any supplemental transmission fluid additives or cleaning agents. The use of these products could cause internal transmission components to fail, which will affect the operation of the transmission.

   The torque converter must be flushed every time the transmission is overhauled. It is mandatory that proper equipment and procedures be followed when flushing the torque converter. The flushing equipment used MUST:

   • Maintain the transmission fluid at 140°F or above
   • Pulsate the transmission fluid during cleaning
   • Have a GPM flow meter
   • Have a filter with a rating of 100 micron or less
   • Have air purge capability before and after flushing

8. If equipment meeting the specifications above is not available, the torque converter must be flushed by hand. Go to Flush The Torque Converter By Hand steps later in this procedure.
9. Check and top off the transmission fluid level of the transmission cooling system heated flusher with transmission fluid.
10. Turn on the heater and allow the transmission fluid in the transmission cooling system heated flusher 15-30 minutes to heat up to 60°C (140°F) before using.

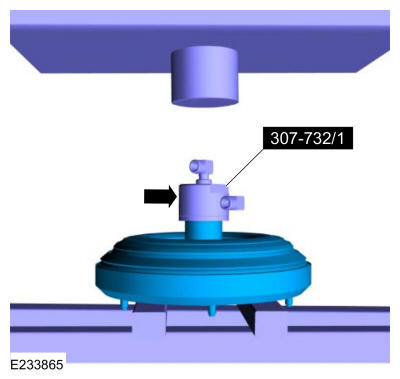

11. Place the torque converter in an arbor press. Support the torque converter on the mounting pads.

    Courtesy of FORD MOTOR COMPANY

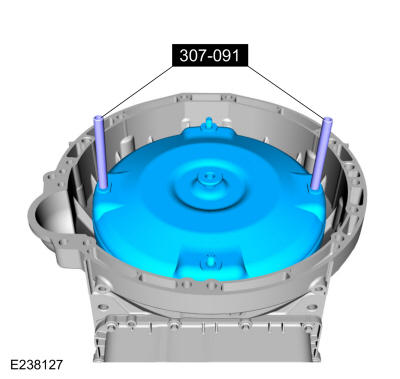

12. Using the special tools, assemble the correct turbine shaft simulator to the torque converter flush main hub and place it on the torque converter hub. Use Special Service Tool: 307-732 Tool Kit, Torque Converter Flusher.

    Courtesy of FORD MOTOR COMPANY

13. Using the special tool, install the slotted cap. Use Special Service Tool: 307-691 Tester, Torque Convertor Leak.

    Courtesy of FORD MOTOR COMPANY

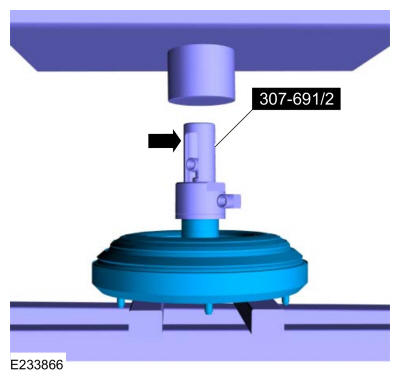

14. Apply enough force from the press to seal the torque converter flush main hub to the torque converter hub.

    Courtesy of FORD MOTOR COMPANY

15. Connect the flush machine to the main hub.
    1. Red hose on top.
    2. Blue hose on bottom.

    Courtesy of FORD MOTOR COMPANY

16. Follow the equipment instructions to purge transmission fluid from the torque converter prior to starting the flushing procedure.
17. WARNING: The torque converter, adaptor 307-732, and the hoses will be hot.
    NOTE: Maintain visual contact with torque converter during the entire flush procedure. Immediately stop the flush machine if a leak develops. Repeat set up steps to reseal the tool to the converter hub and continue flushing.

    Forward flush the converter for 15 minutes.

18. Monitor GPM flow meter periodically during the flush procedure. Flow rate above 2.0 gallons per minute is required to break up and dislodge any contamination trapped behind the TCC plate. Service flush machine filter(s) if flow rate drops below 2 GPM.
19. Follow the equipment instructions to purge the torque converter.
20. WARNING: The torque converter, adaptor 307-732, and the hoses will be hot.

    Allow torque converter and equipment to cool for 30 minutes before handling.

21. Disconnect the hoses and remove the special tools.

    Flush The Torque Converter By Hand

    NOTE: Do not use water-based cleaners or mineral spirits to clean or flush the torque converter or transmission damage will occur. Use only clean transmission fluid designated for the transmission and torque converter being serviced.
    NOTE: Only flush the torque converter by hand when the transmission cooling system heated flusher is not available.
22. Pour a small amount of transmission fluid from the torque converter onto an absorbent white tissue or through a paper filter.
23. Examine the transmission fluid for contaminants. The transmission fluid must be free of metallic contaminants. If metallic contaminants are present, do not continue with hand flushing. The torque converter must be flushed with the transmission cooling system heated flusher.
24. Drain the remaining transmission fluid from the torque converter.

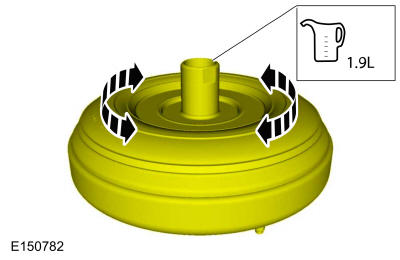

25. Using only the recommended transmission fluid, add 1.9L (2 qt) of clean transmission fluid into the converter and agitate by hand.

    Material

    : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

26. Thoroughly drain the transmission fluid.

    All vehicles

27. NOTE: Note the location of the bolts and studbolts for assembly.

    Remove the bolts and studbolts and the transmission fluid pan.

    1. Bolts
    2. Studbolts

    Courtesy of FORD MOTOR COMPANY

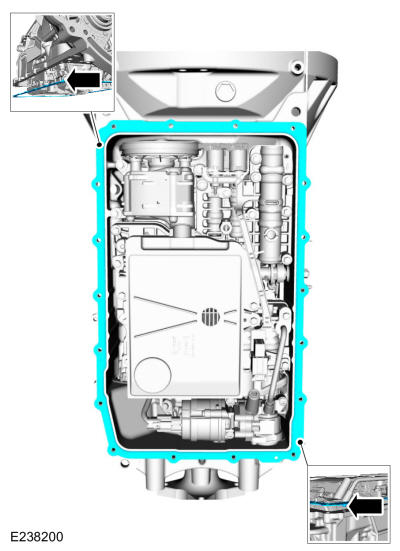

28. NOTE: The transmission fluid pan gasket can be reused if not damaged.
    NOTE: Note the location of the alignment tabs.

    Remove the transmission fluid pan gasket.

    Courtesy of FORD MOTOR COMPANY

29. Remove the transmission fluid level indicator and plug assembly.

    Courtesy of FORD MOTOR COMPANY

    Auto-Start-Stop vehicles

30. Remove the bolt and the transmission fluid auxiliary pump tube.

    Courtesy of FORD MOTOR COMPANY

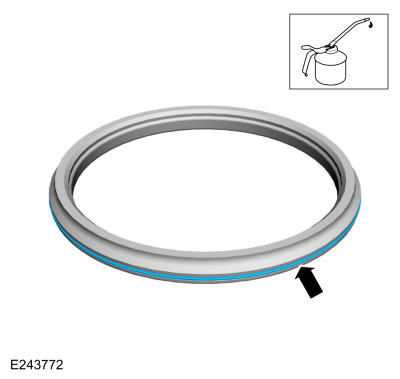

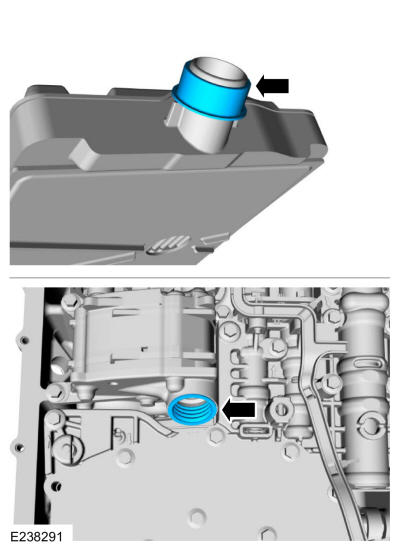

31. Remove and discard the transmission fluid auxiliary pump tube seal.

    Courtesy of FORD MOTOR COMPANY

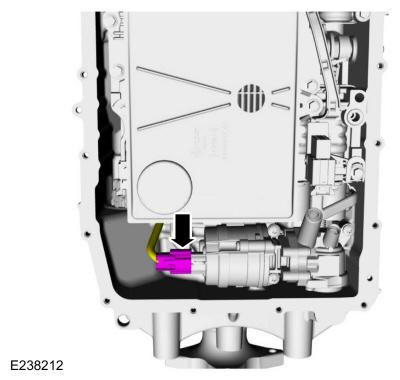

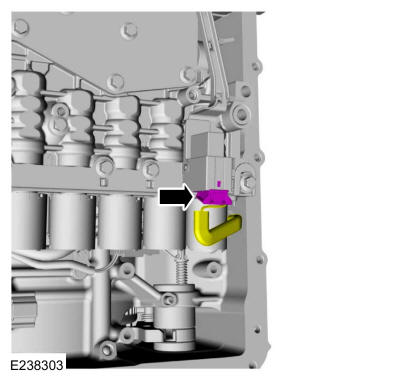

32. Disconnect the transmission fluid auxiliary pump electrical connector.

    Courtesy of FORD MOTOR COMPANY

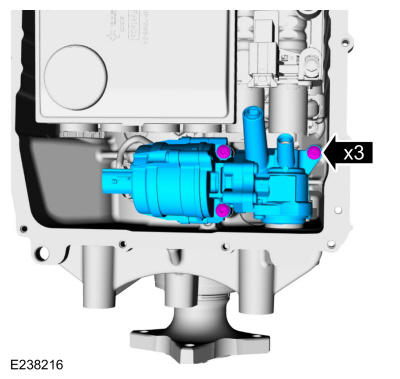

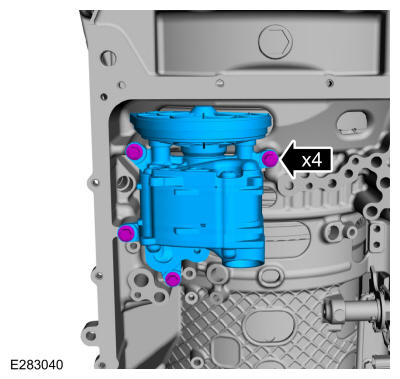

33. Remove the bolts and the transmission fluid auxiliary pump.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

34. NOTE: The transmission fluid filter may be reused if no excessive contamination is indicated.

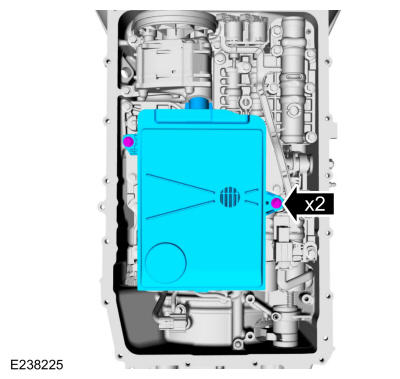

    Remove the 71 mm and 20 mm bolts and the transmission fluid filter.

    Courtesy of FORD MOTOR COMPANY

35. NOTE: The transmission fluid filter seal will either come off with the transmission fluid filter or it will be stuck in the pump.

    Remove the transmission fluid filter seal.

    Courtesy of FORD MOTOR COMPANY

36. Disconnect the main control main electrical connector.

    Courtesy of FORD MOTOR COMPANY

37. NOTE: Check to see if the main control-to-transmission fluid pump seal is attached to the main control.

    Remove the 68 mm bolts and the main control assembly.

    Courtesy of FORD MOTOR COMPANY

38. Clean and inspect the main control for damage. Refer to: Main Control Valve Body .

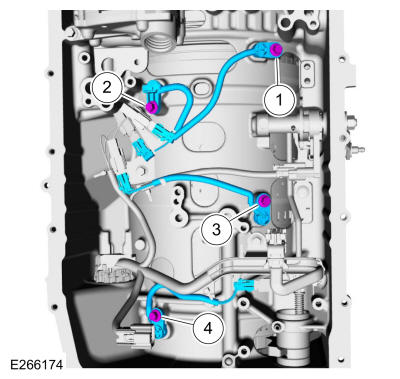

39. Unlock and disconnect the speed sensors.
    1. Intermediate Speed Sensor A (ISSA)
    2. TSS sensor
    3. Intermediate Speed Sensor B (ISSB)
    4. OSS sensor

    Courtesy of FORD MOTOR COMPANY

40. Remove the speed sensors.
    1. Intermediate Speed Sensor A (ISSA)
    2. TSS sensor
    3. Intermediate Speed Sensor B (ISSB)
    4. OSS sensor

    Courtesy of FORD MOTOR COMPANY

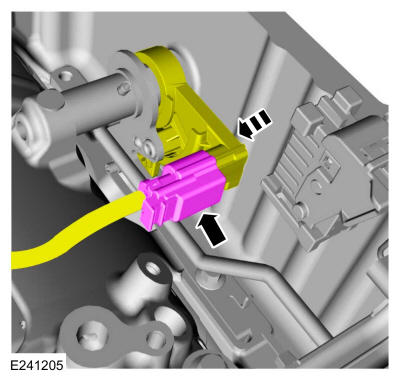

41. Disconnect the TR sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

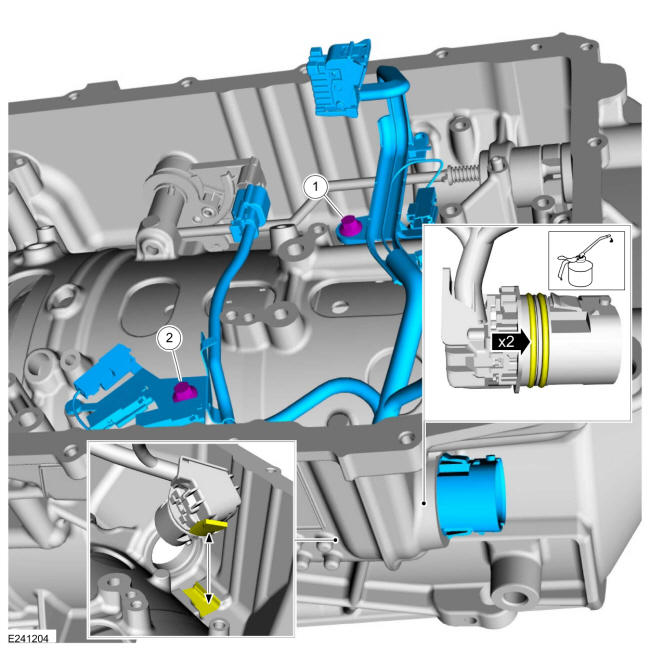

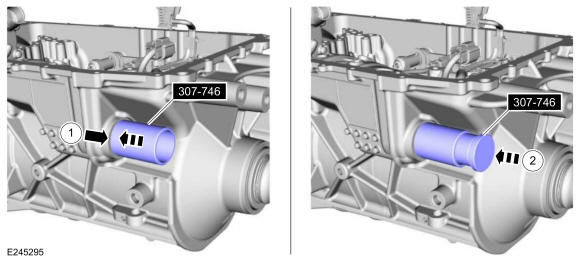

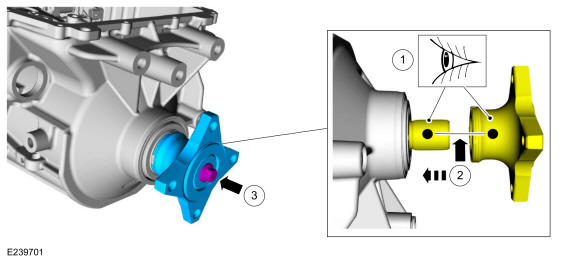

42. Using the special tool, disconnect the transmission internal wiring harness connector from the transmission case.
    1. Slide the special tool over the connector flush with the transmission case. Use Special Service Tool: 307-746 Remover, Transmission Wiring Harness Connector.
    2. Use the special tool to push the connector through the case.

    Courtesy of FORD MOTOR COMPANY

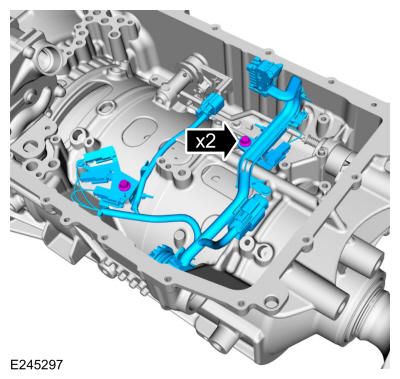

43. Remove the bolts and the transmission internal wiring harness.

    Courtesy of FORD MOTOR COMPANY

44. Remove the bolts and the transmission fluid pump.

    Courtesy of FORD MOTOR COMPANY

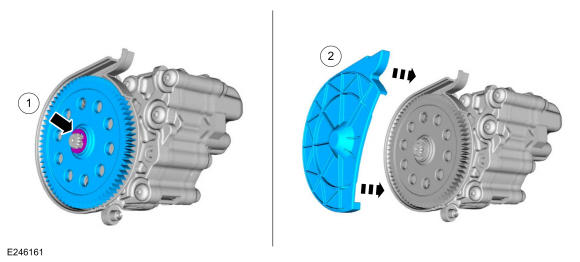

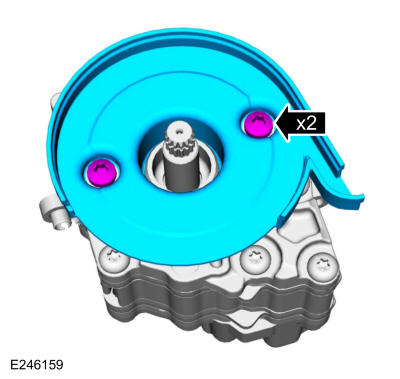

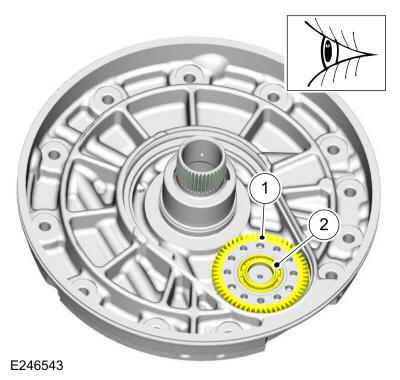

45. 1. Remove the transmission fluid pump driven gear outer cover.
    2. Clean and inspect the transmission fluid pump driven gear.
    3. If replacing the transmission fluid pump driven gear or transmission fluid pump driven gear inner cover, remove the retaining ring and the transmission fluid pump driven gear.

    Courtesy of FORD MOTOR COMPANY

46. If necessary, remove the bolts and the transmission fluid pump driven gear inner cover.

    Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

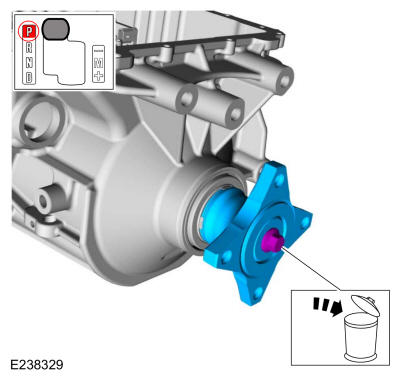

47. Rotate the manual control lever to P. Remove and discard the output shaft flange bolt. Remove the output shaft flange and anti-ting ring assembly.

    Courtesy of FORD MOTOR COMPANY

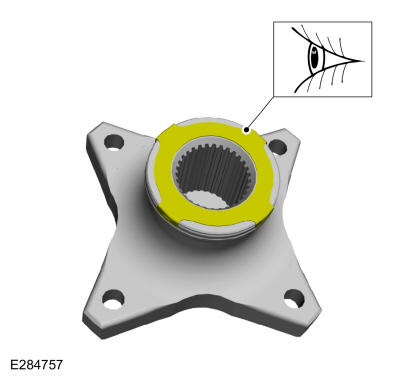

48. Clean and inspect the anti-ting ring.

    Courtesy of FORD MOTOR COMPANY

49. Using the special tool, remove and discard the output shaft nut. Use Special Service Tool: 307-458 Socket, Output Shaft Locknut.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with Rotary Gear Shift Knob / Gear Shift Buttons

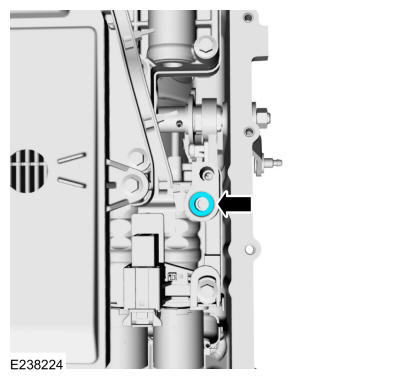

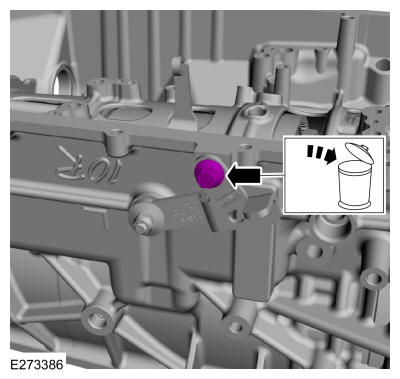

50. Remove and discard the park override lever bolt.

    Courtesy of FORD MOTOR COMPANY

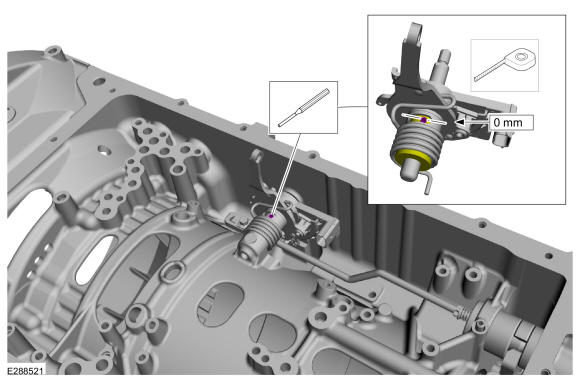

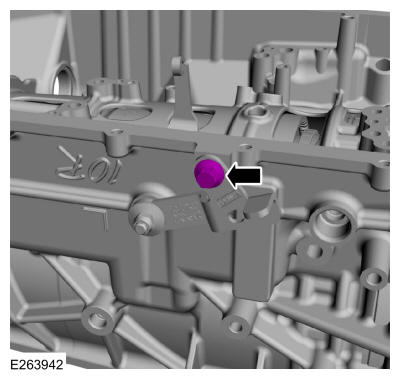

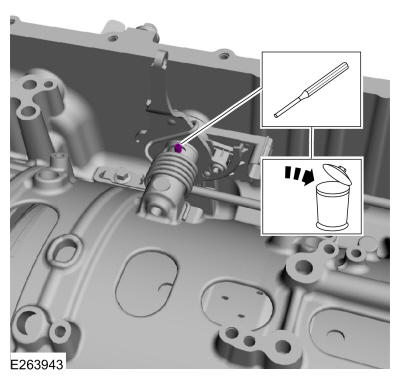

51. Using a punch, remove and discard the manual shaft-to-TR sensor roll pin. Use the General Equipment: Punch

    Courtesy of FORD MOTOR COMPANY

52. Release the tension from the park return spring.

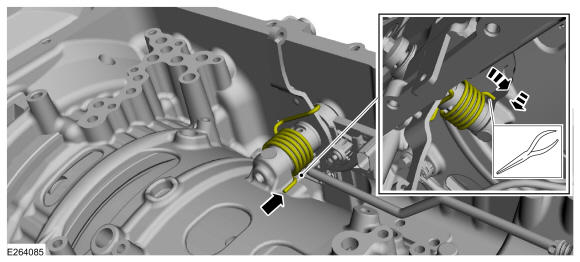

    • Slide the end of the park return spring off the transmission case.

    Courtesy of FORD MOTOR COMPANY

53. Remove the manual shaft and park override lever, the TR sensor and the park pawl actuator rod.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with Manual Control Lever

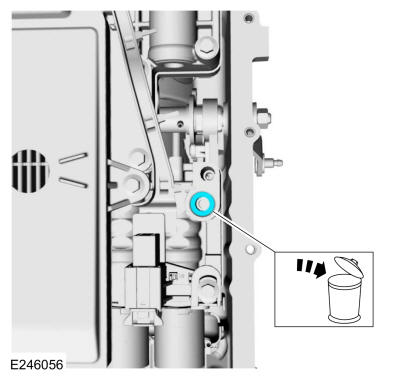

54. Remove and discard the manual control shaft-to-TR sensor roll pin. Use the General Equipment: Punch

    Courtesy of FORD MOTOR COMPANY

55. Remove the nut and the manual control lever.

    Courtesy of FORD MOTOR COMPANY

56. Remove the manual control shaft, the TR sensor and the park pawl actuator rod.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

57. Remove and discard the manual control shaft seal.

    Courtesy of FORD MOTOR COMPANY

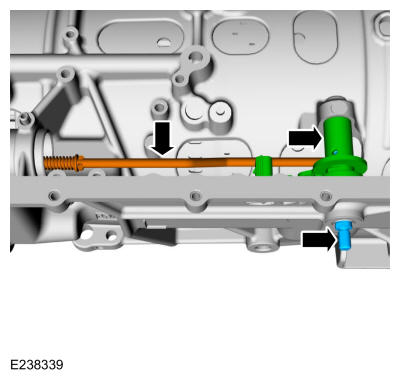

58. Remove the bolt and the TR sensor detent spring.

    Courtesy of FORD MOTOR COMPANY

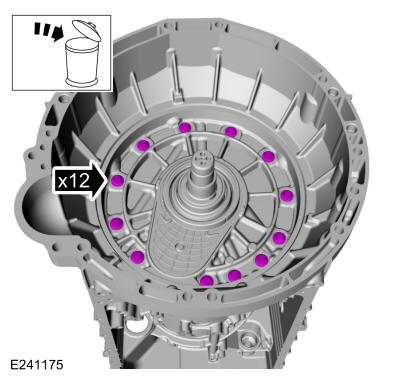

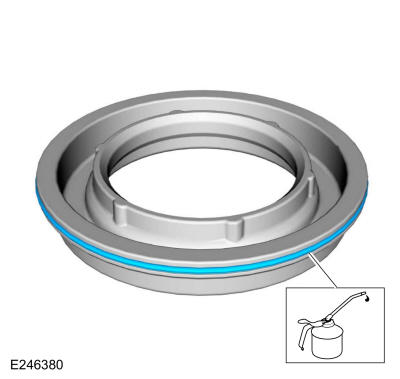

59. Rotate the transmission to a vertical position. Remove and discard the front support assembly bolts.

    Courtesy of FORD MOTOR COMPANY

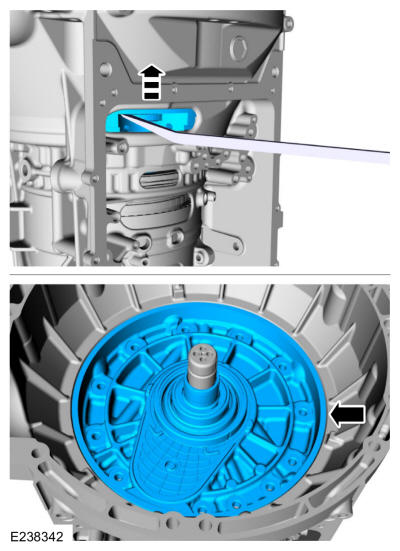

60. NOTE: Be careful not to contact the transmission fluid pump drive gear, or damage to the gear can occur.

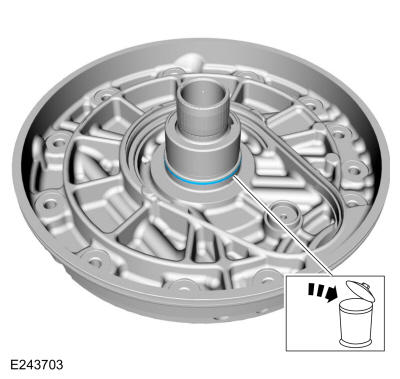

    Using a prybar, pry the front support assembly out of the transmission case and remove the front support assembly.

    Courtesy of FORD MOTOR COMPANY

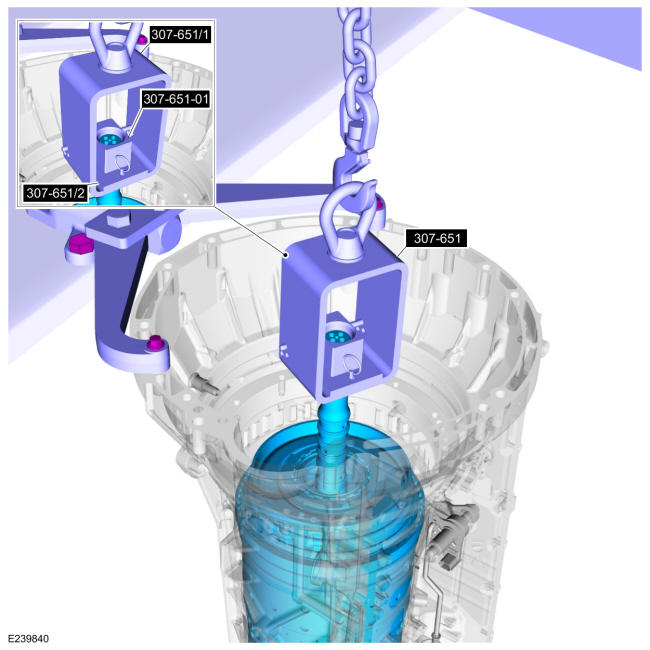

61. Using the special tools and a floor crane, remove the clutch and planetary assembly. Use Special Service Tool: 307-651 Bracket, Pump Remover/Installer., 307-651-01 Adapter for 307-651 (Super Sub Assembly Lifting).

    Courtesy of FORD MOTOR COMPANY

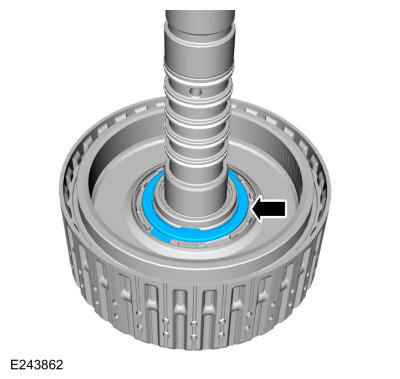

62. Remove the (T9) thrust bearing.

    Courtesy of FORD MOTOR COMPANY

63. Remove the output shaft and planetary carrier No. 4 assembly.

    Courtesy of FORD MOTOR COMPANY

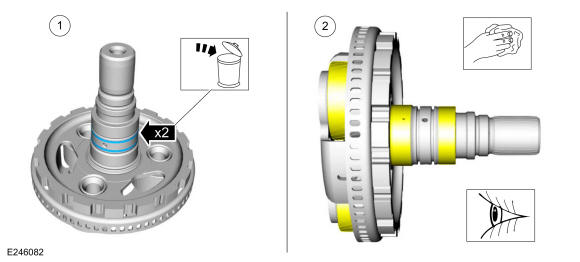

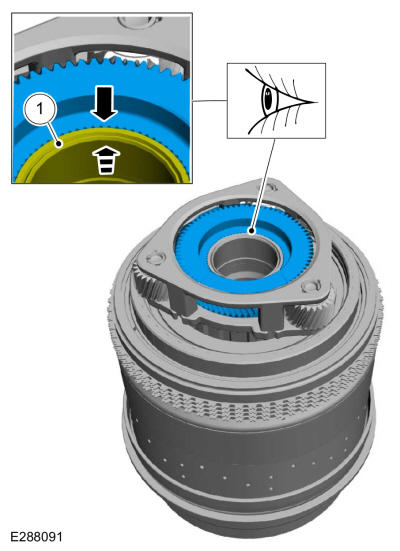

64. 1. Remove and discard the output shaft seals.
    2. Clean and inspect the output shaft and planetary carrier No. 4 assembly.

    Courtesy of FORD MOTOR COMPANY

65. Using the special tools, remove and discard the output shaft seal. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 307-309 Remover, Torque Converter Seal.

    Courtesy of FORD MOTOR COMPANY

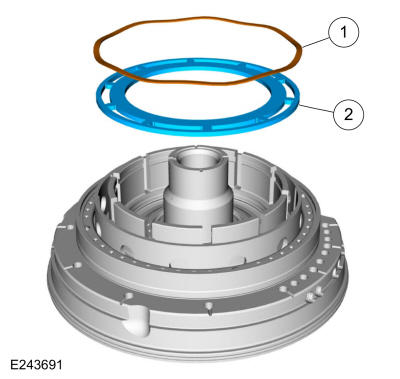

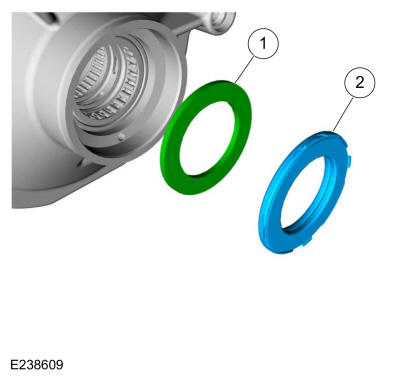

66. If equipped with 2WD, remove the (T11) thrust bearing and the thrust washer.
    1. Thrust washer
    2. Thrust bearing (T11)

    Courtesy of FORD MOTOR COMPANY

67. Clean and inspect the transmission case and bearings. Check for leaks from plugs and park pawl actuator rod sleeve. Repair or replace as necessary. Refer to: Transmission Case .

    Courtesy of FORD MOTOR COMPANY

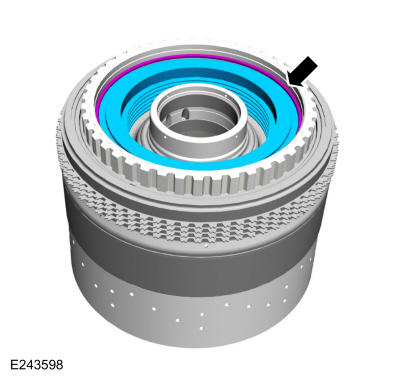

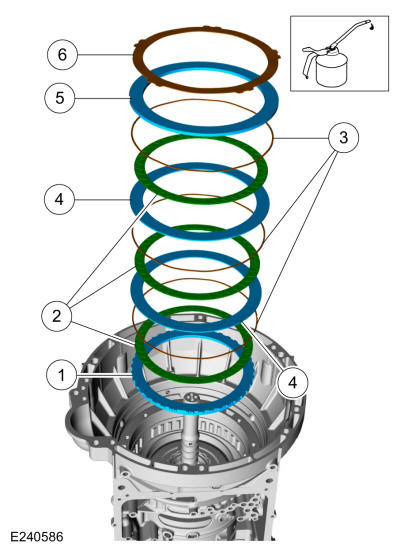

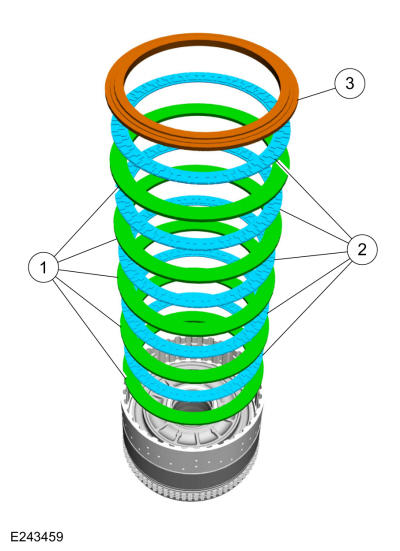

68. NOTE: If replacing A clutch separating springs, all separating springs must be replaced as a matching set or damage can occur.

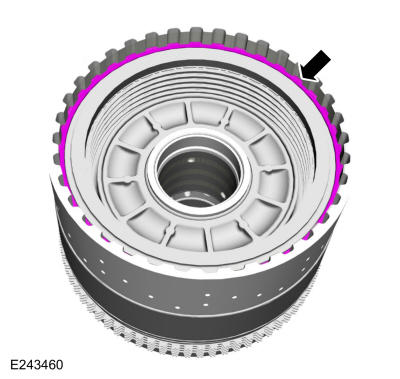

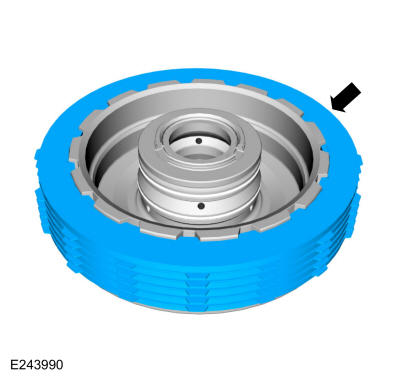

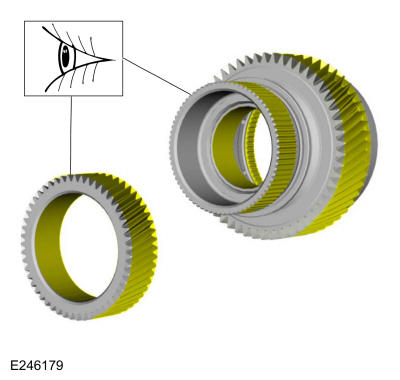

    Remove the A clutch assembly. Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

    Courtesy of FORD MOTOR COMPANY

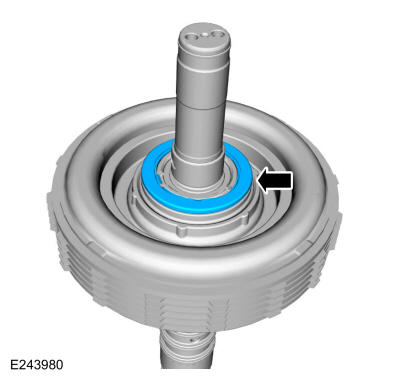

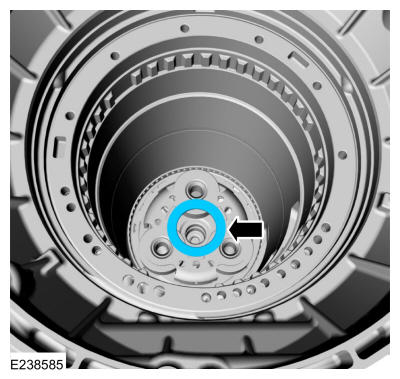

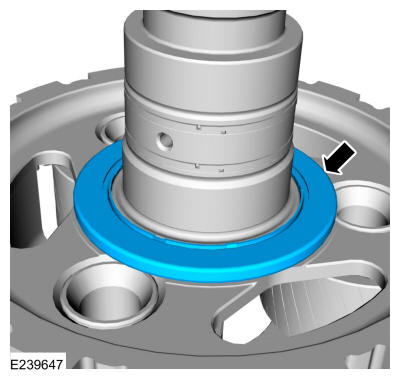

69. Using a magnet, remove the selective shim and the (T3) thrust bearing. Use the General Equipment: Magnet

    Courtesy of FORD MOTOR COMPANY

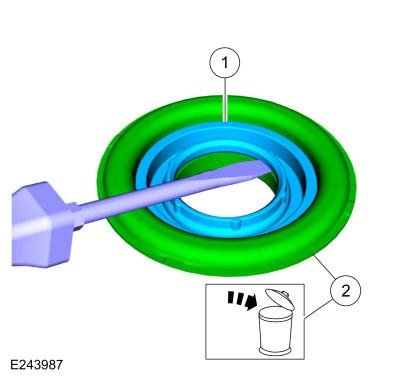

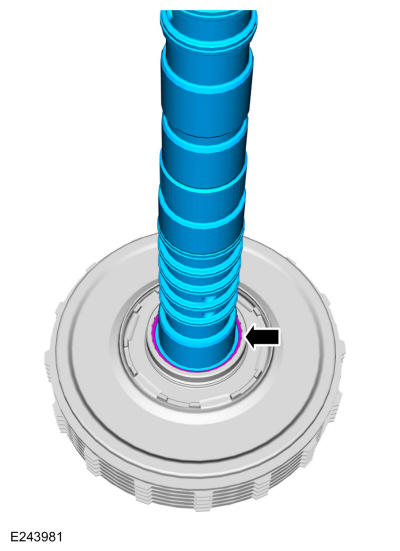

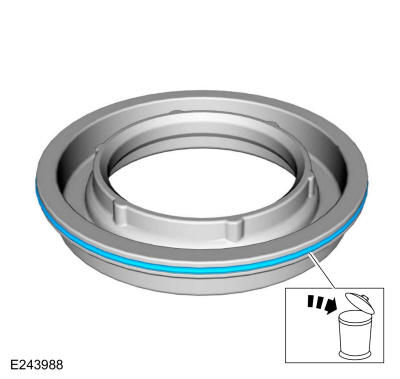

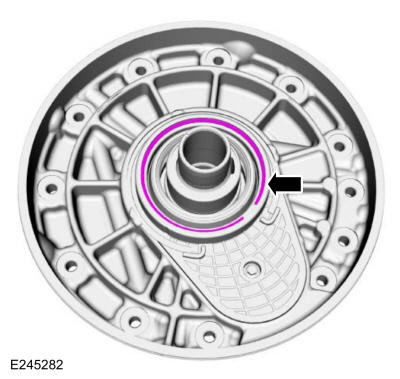

70. Remove and discard the input shaft front Teflon® seals.

    Courtesy of FORD MOTOR COMPANY

71. Remove one side of the No. 1 planetary carrier snap ring.

    Courtesy of FORD MOTOR COMPANY

72. Flip the clutch and planetary assembly over with the input shaft through a hole in the bench. Remove the No. 1 planetary carrier snap ring and remove the clutch and planetary container cylinder.

    Courtesy of FORD MOTOR COMPANY

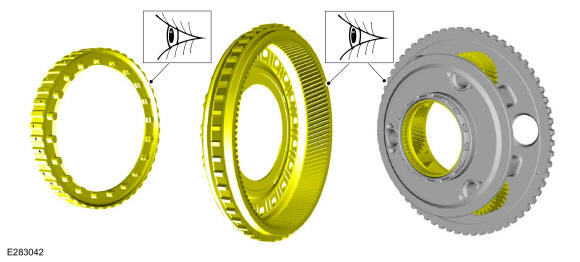

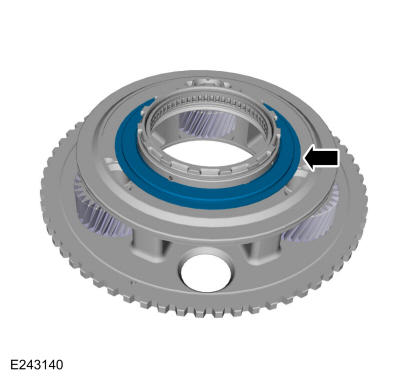

73. 1. Inspect the No. 4 ring gear.
    2. NOTE: Remove the ring gear when replacement is necessary.

       If necessary, remove the ring gear snap ring.

    3. If necessary, remove the ring gear fron the inside of the clutch and planetary container cylinder.

    Courtesy of FORD MOTOR COMPANY

74. Remove the (T8) thrust bearing.

    Courtesy of FORD MOTOR COMPANY

75. Remove the E clutch and input shaft assembly.

    Courtesy of FORD MOTOR COMPANY

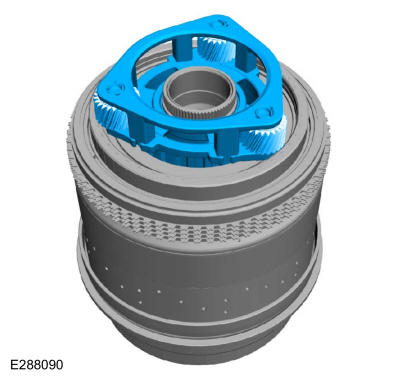

76. Remove the No. 3 planetary carrier and the No. 3 sun gear.

    Courtesy of FORD MOTOR COMPANY

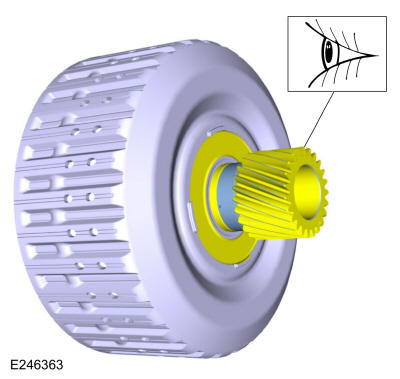

77. Inspect the No. 3 planetary carrier and the No. 3 sun gear.

    Courtesy of FORD MOTOR COMPANY

78. Remove the CDF clutch assembly from the planetary carrier assembly.

    Courtesy of FORD MOTOR COMPANY

79. Remove the No. 3 sun gear shaft and No. 2 ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

80. Inspect the No. 3 sun gear shaft and No. 2 ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

81. Remove the (T5) thrust bearing.

    Courtesy of FORD MOTOR COMPANY

82. Remove the No. 2 planetary carrier.

    Courtesy of FORD MOTOR COMPANY

83. NOTE: It is not necessary to remove the fluid collector from the No. 2 planetary carrier.

    Inspect the No. 2 planetary carrier and the fluid collector.

    1. If the fluid collector is broken remove and discard.

    Courtesy of FORD MOTOR COMPANY

84. If necessary, install the new the fluid collector.

    Courtesy of FORD MOTOR COMPANY

85. Remove the No. 2 sun gear.

    Courtesy of FORD MOTOR COMPANY

86. Remove the No. 1 sun gear.

    Courtesy of FORD MOTOR COMPANY

87. Inspect the No. 1 and No. 2 sun gears.

    Courtesy of FORD MOTOR COMPANY

88. Gently pry up on the 3 tabs and remove the No. 1 bearing support locking ring.

    Courtesy of FORD MOTOR COMPANY

89. Rotate the No. 1 bearing support clockwise and remove the bearing support.

    Courtesy of FORD MOTOR COMPANY

90. Remove the No. 1 ring gear bearing.

    Courtesy of FORD MOTOR COMPANY

91. Remove the No. 1 ring gear.

    Courtesy of FORD MOTOR COMPANY

92. Remove the ring gear No 1 bearing.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with Welded A Clutch Hub

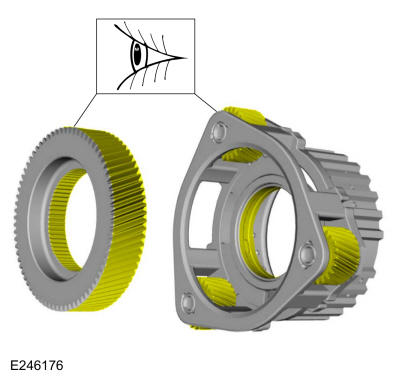

93. Inspect the No. 1 ring gear and the No. 1 planetary carrier.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with Splined A Clutch Hub

94. Remove the ring gear No 1 snap ring.

    Courtesy of FORD MOTOR COMPANY

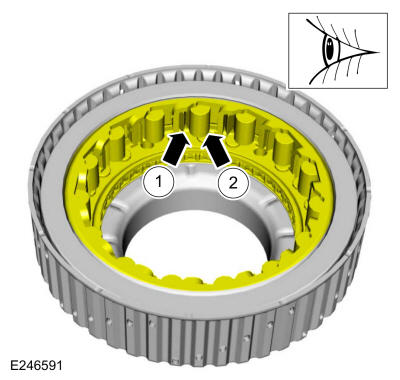

95. Inspect the A clutch hub, No. 1 ring gear and the No. 1 planetary carrier.

    Courtesy of FORD MOTOR COMPANY

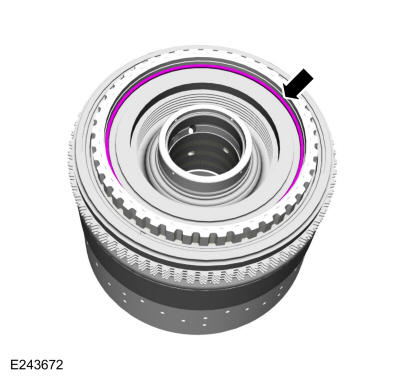

96. Install the ring gear No 1 snap ring.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

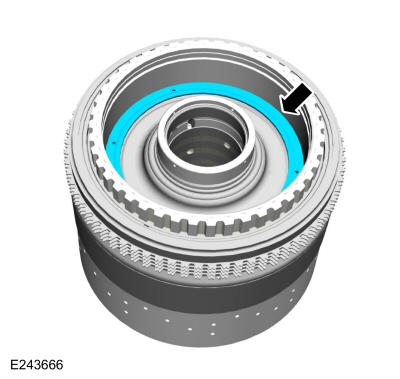

97. Install the ring gear No. 1 bearing.

    Courtesy of FORD MOTOR COMPANY

98. Install the No. 1 ring gear.

    Courtesy of FORD MOTOR COMPANY

99. Install the No. 1 ring gear bearing.

    Courtesy of FORD MOTOR COMPANY

100. Install the ring gear No. 1 bearing support and rotate it counter clockwise to lock it.

     Courtesy of FORD MOTOR COMPANY

101. Align the tabs with the slots and install the No. 1 bearing support locking ring.

     Courtesy of FORD MOTOR COMPANY

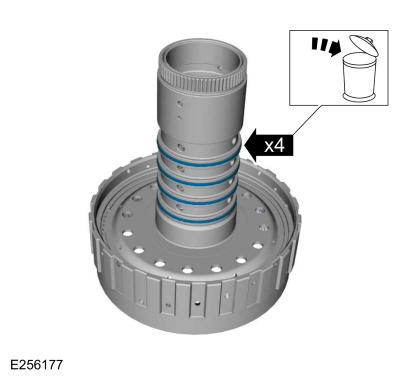

102. Remove and discard the sun gear No. 3 shaft Teflon® seals.

     Courtesy of FORD MOTOR COMPANY

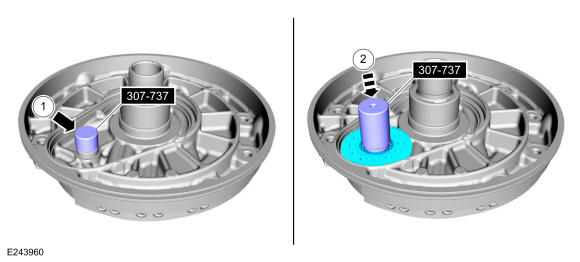

103. Install the special tool and adjust the special tool to align the bottom edge of the tool with the top edge of the bottom Teflon® seal groove. Use Special Service Tool: 307-749 Installer/Sizer, R2-S3 Shaft Solid Seal.

     Courtesy of FORD MOTOR COMPANY

104. Install a new Teflon® seal on the special tool. Use Special Service Tool: 307-749 Installer/Sizer, R2-S3 Shaft Solid Seal.

     Courtesy of FORD MOTOR COMPANY

105. Using the top half of the special tool, slide the Teflon® seal into the groove. Remove the special tools and repeat the steps for the other 3 Teflon® seals. Use Special Service Tool: 307-749 Installer/Sizer, R2-S3 Shaft Solid Seal.

     Courtesy of FORD MOTOR COMPANY

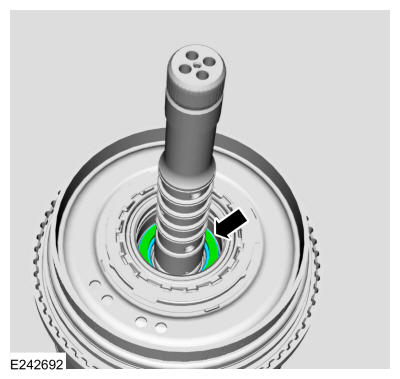

106. Install the special tool to size the 4 Teflon® seals. Allow the special tool to stay on the No 3 sun gear shaft for 5 minutes prior to final assembly. Use Special Service Tool: 307-749 Installer/Sizer, R2-S3 Shaft Solid Seal.

     Courtesy of FORD MOTOR COMPANY

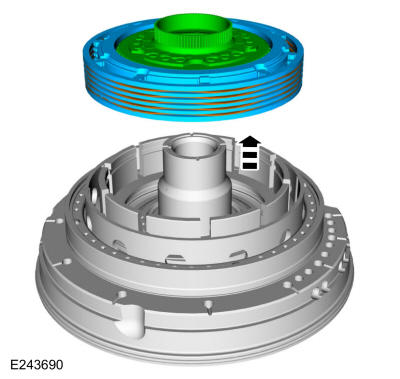

107. Remove the snap ring and the C clutch assembly. Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

     Courtesy of FORD MOTOR COMPANY

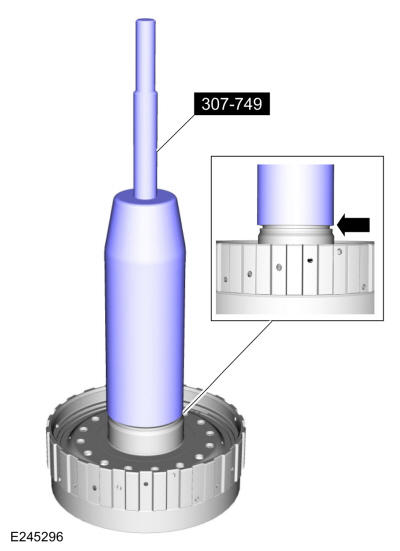

108. Using the special tools and a press, remove the C clutch balance dam retainer. Use Special Service Tool: 307-584 2-6 Spring Compressor., 307-589 Overdrive clutch and balance piston service set. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

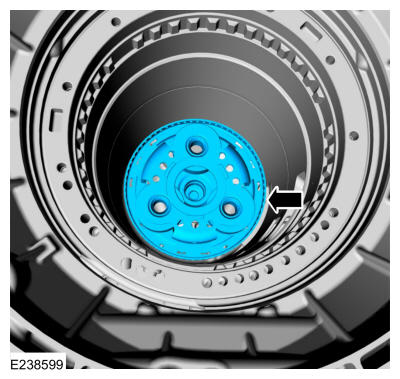

109. Remove the C clutch balance dam.

     Courtesy of FORD MOTOR COMPANY

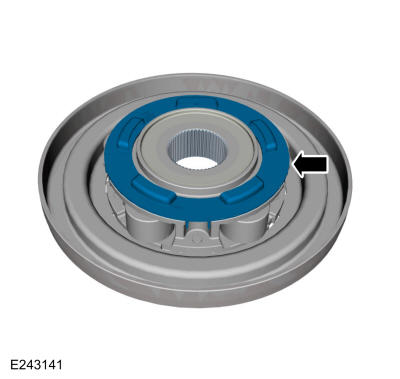

110. Remove the C clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

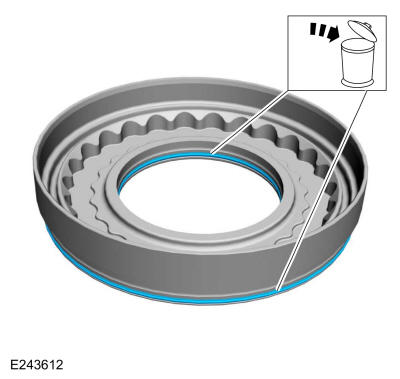

111. Remove and discard the C clutch balance dam inner and outer seals.

     Courtesy of FORD MOTOR COMPANY

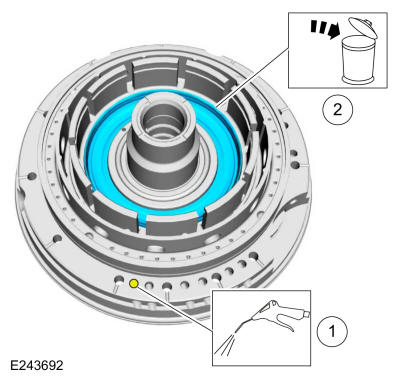

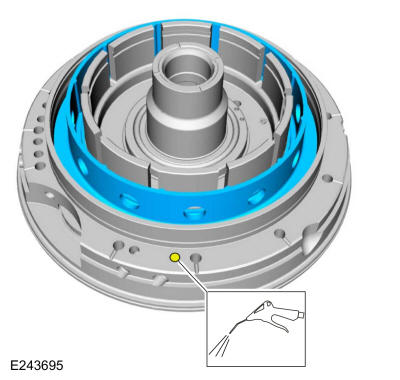

112. Remove the C clutch piston. Use compressed air into one oil passage hole while plugging the hole on the opposite side.

     Courtesy of FORD MOTOR COMPANY

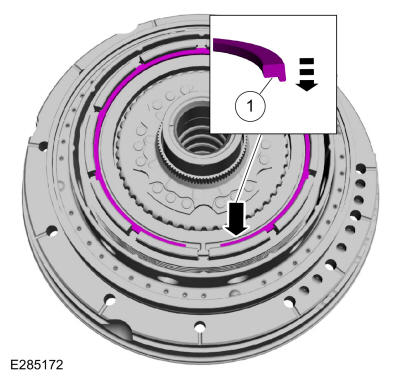

113. Remove and discard the C clutch piston inner and outer seals.

     Courtesy of FORD MOTOR COMPANY

114. Remove the snap ring and the D clutch assembly. Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

     Courtesy of FORD MOTOR COMPANY

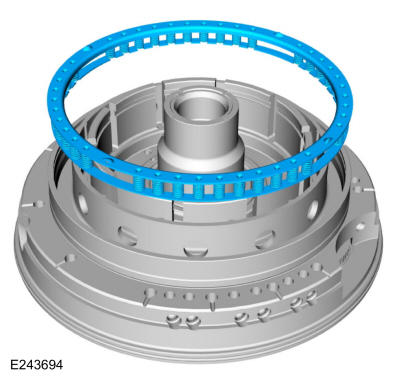

115. Remove the D clutch apply ring.

     Courtesy of FORD MOTOR COMPANY

116. Using the special tools and a press, remove the D clutch balance dam retainer. Use Special Service Tool: 307-584 2-6 Spring Compressor., 307-589 Overdrive clutch and balance piston service set. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

117. Remove and discard the balance dam.

     Courtesy of FORD MOTOR COMPANY

118. Remove the D clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

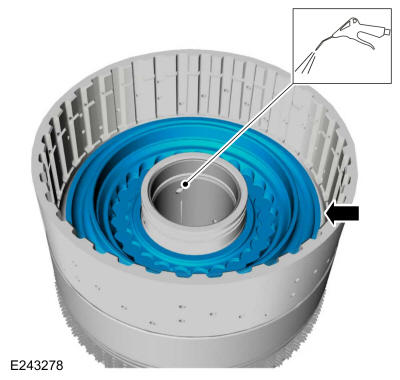

119. Remove the D clutch piston. Use compressed air into one oil passage hole while plugging the hole on the opposite side.

     Courtesy of FORD MOTOR COMPANY

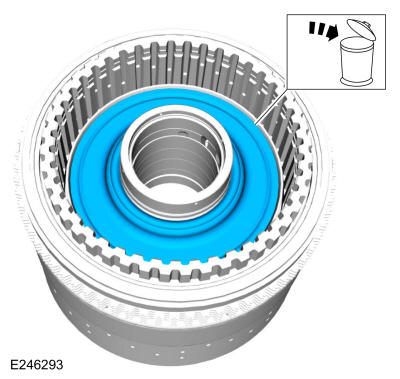

120. Remove and discard the D clutch piston inner and outer seals.

     Courtesy of FORD MOTOR COMPANY

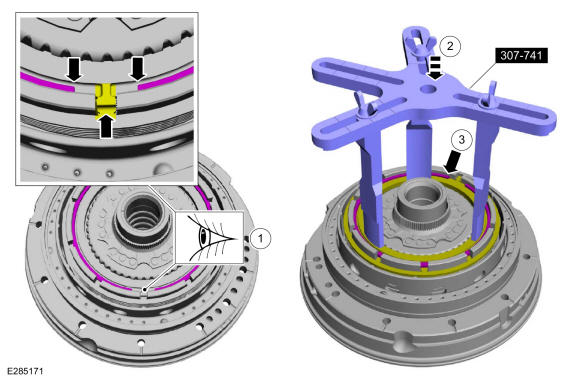

121. Remove the F clutch keeper snap ring, F clutch snap ring keeper and the F clutch snap ring.
     1. F clutch keeper snap ring
     2. F clutch snap ring keeper
     3. F clutch snap ring

     Courtesy of FORD MOTOR COMPANY

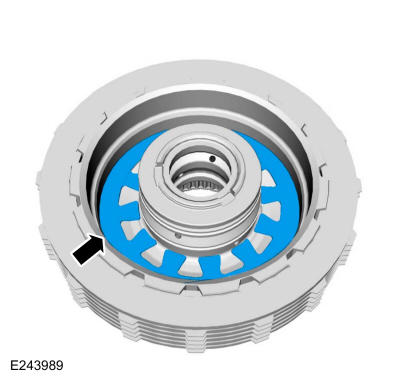

122. Remove the F clutch assembly. Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

     Courtesy of FORD MOTOR COMPANY

123. Remove the F clutch apply ring.

     Courtesy of FORD MOTOR COMPANY

124. Using the special tools and a press, compress the F clutch balance dam and remove the retainer. Remove the F clutch balance dam. Use Special Service Tool: 307-741 Spring Compressor, F Clutch. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

125. Remove and discard the F clutch balance dam outer seal.

     Courtesy of FORD MOTOR COMPANY

126. Remove the F clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

127. Remove and discard the F clutch balance dam inner seal.

     Courtesy of FORD MOTOR COMPANY

128. Remove the F clutch piston.

     Courtesy of FORD MOTOR COMPANY

129. Remove and discard the F clutch piston seals.

     Courtesy of FORD MOTOR COMPANY

130. Clean and inspect the CDF clutch cylinder.

     Courtesy of FORD MOTOR COMPANY

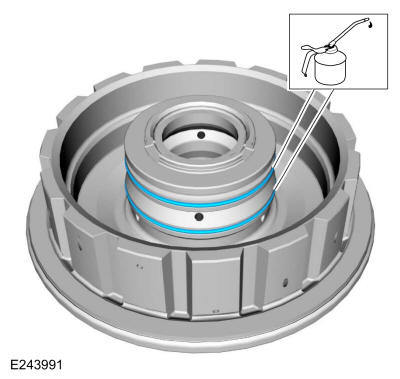

131. Install the new F clutch piston seals. Lubricate the seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

132. Install the F clutch piston.

     Courtesy of FORD MOTOR COMPANY

133. Install the new F clutch balance dam inner seal. Lubricate the seal with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

134. Install the F clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

135. Install the new F clutch balance dam outer seal. Lubricate the seal with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

136. NOTE: The F clutch balance dam retainer will not be in the groove at this time.

     Install the F clutch balance dam and retainer on the CDF clutch cylinder.

     Courtesy of FORD MOTOR COMPANY

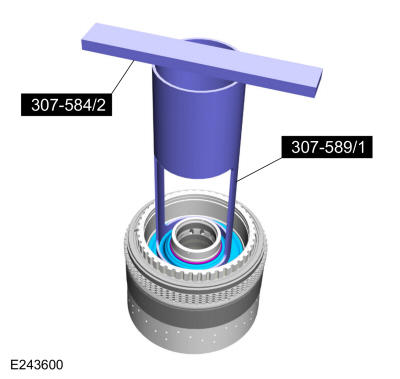

137. Using the special tools and a press, compress the F clutch balance dam and install the retainer into the groove. Use Special Service Tool: 307-741 Spring Compressor, F Clutch. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

138. 1. Position the F clutch apply ring onto the F clutch piston.
     2. Position the F clutch pressure plate upside-down onto the apply ring. Using the special tools and a press, press the apply ring onto the F clutch piston. Use Special Service Tool: 307-741 Spring Compressor, F Clutch. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

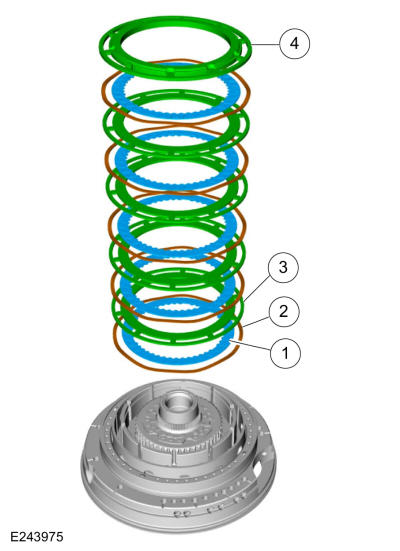

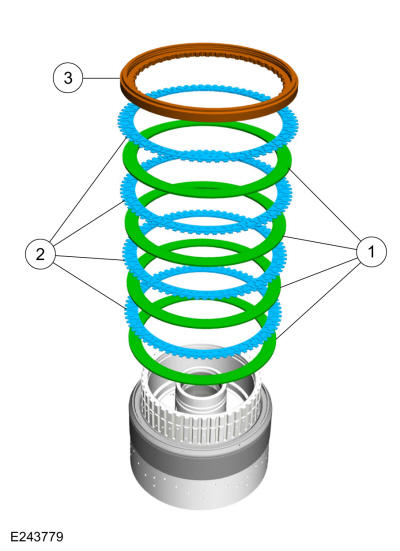

139. NOTE: Clutch plate quantity is model dependent based on engine displacement.

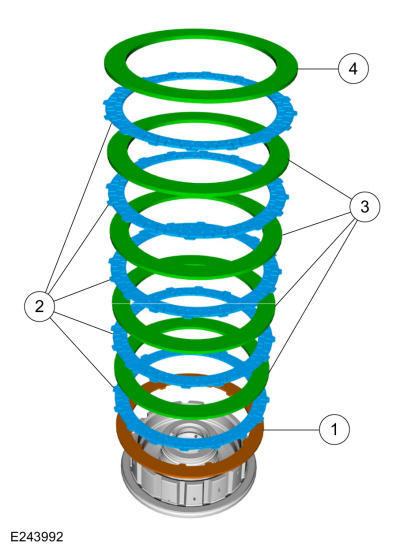

     Soak the F clutch plates in clean transmission fluid. Install the F clutch assembly.

     1. Steel plates
     2. Friction plates

        Material

        : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)

     3. Pressure plate

     Courtesy of FORD MOTOR COMPANY

140. Install the F clutch snap ring, F clutch snap ring keeper and the F clutch keeper snap ring.
     1. F clutch snap ring
     2. F clutch snap ring keeper
     3. F clutch keeper snap ring

     Courtesy of FORD MOTOR COMPANY

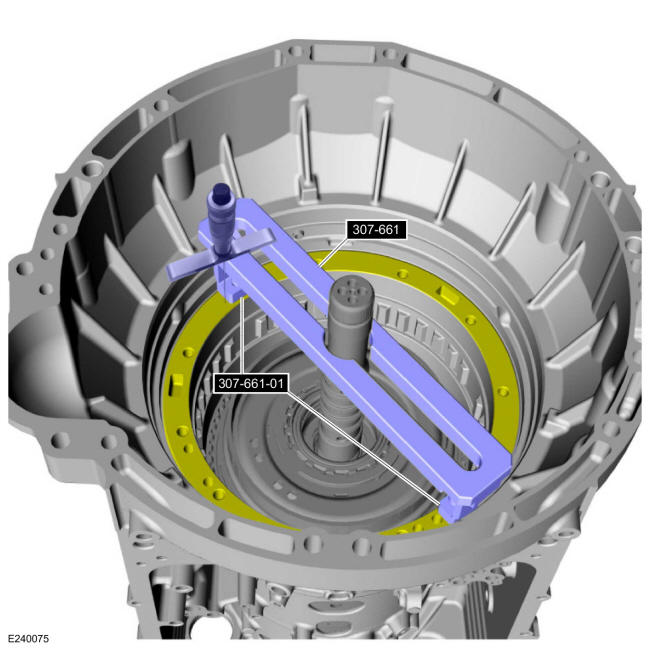

141. Assemble the special tools and position the CDF clutch cylinder with the F clutch facing up. Use Special Service Tool: 307-662 Gauge, Clutch Pack Endplay., 307-003 (T57L-500-B) Holding Fixture, Transmission.

     Courtesy of FORD MOTOR COMPANY

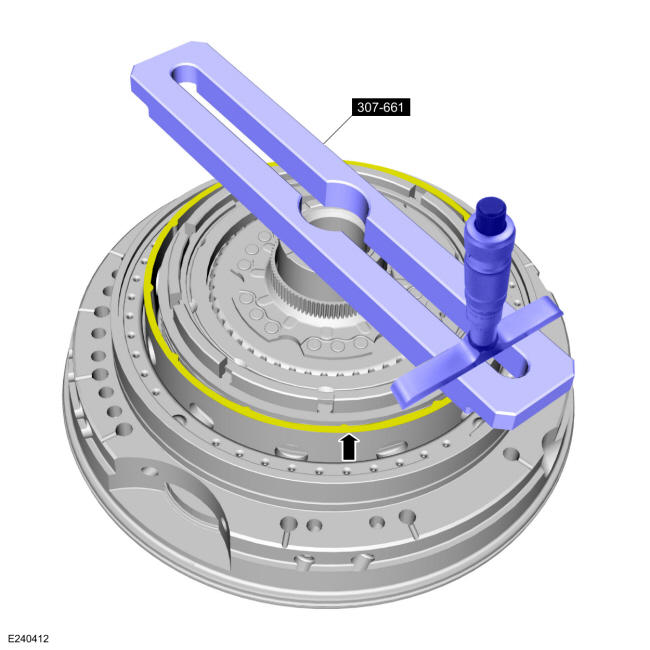

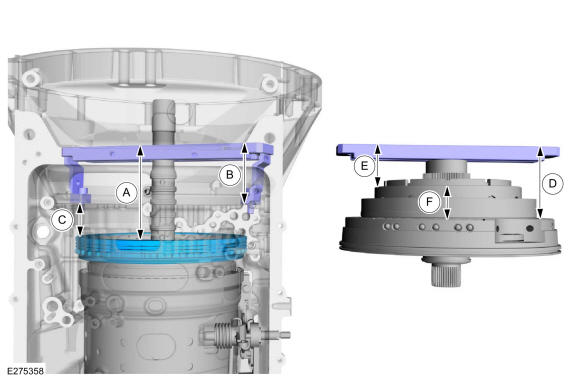

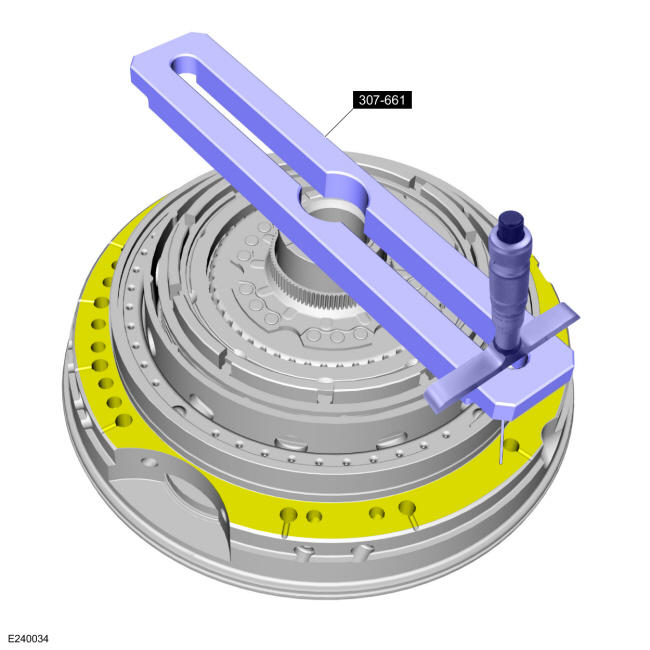

142. Using the special tool, measure the F clutch clearance. Position the plunger so it rests on the top surface of the pressure plate. Zero the dial indicator. Pull up on the pressure plate and measure and record the clutch clearance in 3 different places. Average the 3 recorded clutch clearance measurements and compare the measurement to the clutch clearance chart in specifications to determine the correct size snap ring. Install the correct F clutch snap ring. Refer to: Specifications . Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

     Courtesy of FORD MOTOR COMPANY

143. Install the new D clutch piston inner and outer seals. Lubricate the seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

144. Install the D clutch piston.

     Courtesy of FORD MOTOR COMPANY

145. Install the D clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

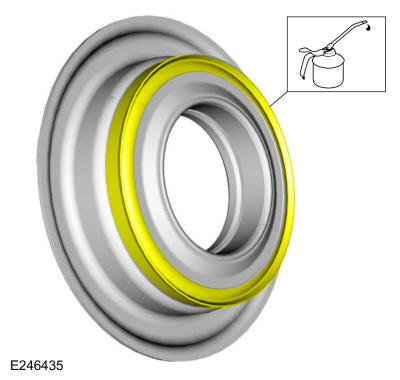

146. Lubricate the new D clutch balance dam seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

147. Using the special tools and a press, Install the D clutch balance dam and install the retainer. Use Special Service Tool: 307-584 2-6 Spring Compressor., 307-589 Overdrive clutch and balance piston service set. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

148. Install the D clutch apply ring.

     Courtesy of FORD MOTOR COMPANY

149. NOTE: Clutch plate quantity is model dependent based on engine displacement.

     Soak the D clutch plates in clean transmission fluid. Install the D clutch assembly.

     1. Steel plates
     2. Friction plates

        Material

        : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)

     3. Pressure plate

     Courtesy of FORD MOTOR COMPANY

150. Install the D clutch snap ring.

     Courtesy of FORD MOTOR COMPANY

151. Assemble the special tools and position the CDF clutch cylinder with the D clutch facing up. Use Special Service Tool: 307-662 Gauge, Clutch Pack Endplay., 307-003 (T57L-500-B) Holding Fixture, Transmission.

     Courtesy of FORD MOTOR COMPANY

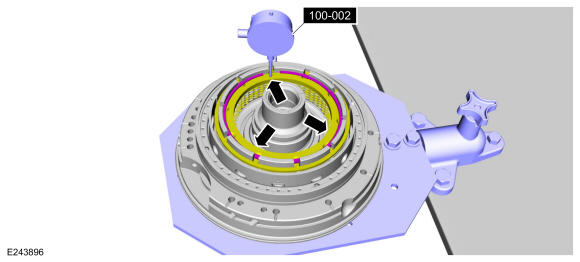

152. Using the special tool, measure the D clutch clearance. Position the plunger so it rests on the top surface of the pressure plate. Zero the dial indicator. Pull up on the pressure plate and measure and record the clutch clearance in 3 different places. Average the 3 recorded clutch clearance measurements and compare the measurement to the clutch clearance chart in specifications to determine the correct size snap ring. Install the correct D clutch snap ring. Refer to: Specifications . Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

     Courtesy of FORD MOTOR COMPANY

153. Install the new C clutch piston inner and outer seals. Lubricate the seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

154. Install the C clutch piston.

     Courtesy of FORD MOTOR COMPANY

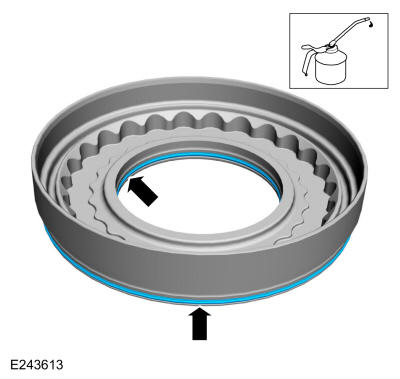

155. Install the new C clutch balance dam seals. Lubricate the seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

156. Install the C clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

157. Install the C clutch balance dam.

     Courtesy of FORD MOTOR COMPANY

158. Using the special tools and a press, compress the C clutch balance dam and install the retainer. Use Special Service Tool: 307-584 2-6 Spring Compressor., 307-589 Overdrive clutch and balance piston service set. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

159. NOTE: Clutch plate quantity is model dependent based on engine displacement.

     Soak the C clutch plates in clean transmission fluid. Install the C clutch assembly.

     1. Steel plates
     2. Friction plates

        Material

        : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)

     3. Pressure plate

     Courtesy of FORD MOTOR COMPANY

160. Install the C clutch snap ring.

     Courtesy of FORD MOTOR COMPANY

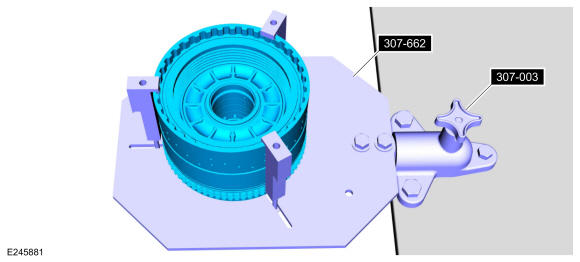

161. Assemble the special tools and position the CDF clutch cylinder with the C clutch facing up. Use Special Service Tool: 307-662 Gauge, Clutch Pack Endplay., 307-003 (T57L-500-B) Holding Fixture, Transmission.

     Courtesy of FORD MOTOR COMPANY

162. Using the special tool, measure the C clutch clearance. Position the plunger so it rests on the top surface of the pressure plate. Zero the dial indicator. Pull up on the pressure plate and measure and record the clutch clearance in 3 different places. Average the 3 recorded clutch clearance measurements and compare the measurement to the clutch clearance chart in specifications to determine the correct size snap ring. Install the correct C clutch snap ring. Refer to: Specifications . Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

     Courtesy of FORD MOTOR COMPANY

163. Remove the (T6) thrust bearing.

     Courtesy of FORD MOTOR COMPANY

164. Remove the snap ring and the No. 3 ring gear.

     Courtesy of FORD MOTOR COMPANY

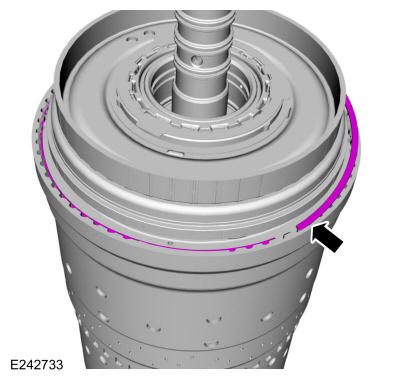

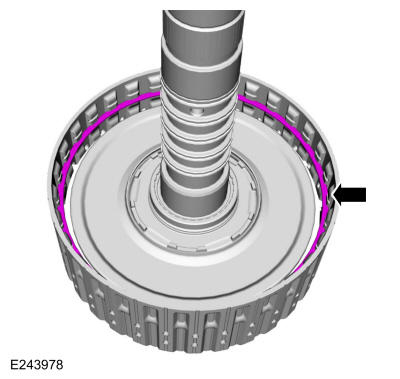

165. Remove the rear No. 3 ring gear snap ring.

     Courtesy of FORD MOTOR COMPANY

166. Inspect the No. 3 ring gear.

     Courtesy of FORD MOTOR COMPANY

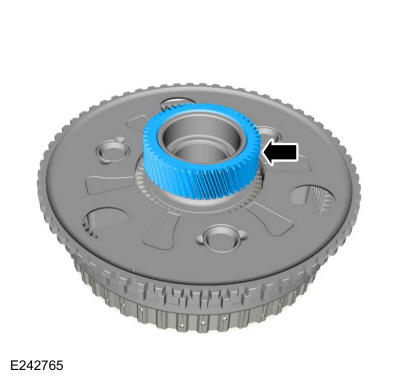

167. Remove the input shaft and the E clutch from No. 4 shell and sun gear.

     Courtesy of FORD MOTOR COMPANY

168. Inspect the No. 4 shell and sun gear.

     Courtesy of FORD MOTOR COMPANY

169. Remove the (T7) thrust bearing.

     Courtesy of FORD MOTOR COMPANY

170. Remove the snap ring and remove the input shaft from the E clutch assembly.

     Courtesy of FORD MOTOR COMPANY

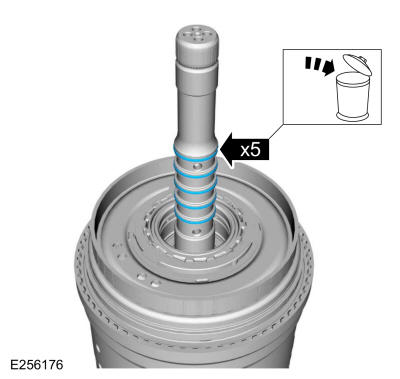

171. Remove and discard the input shaft-to-sun gear No. 3 shaft Teflon® seals.

     Courtesy of FORD MOTOR COMPANY

172. Remove and discard the input shaft D-ring seals.

     Courtesy of FORD MOTOR COMPANY

173. Remove and discard the input shaft Teflon® seal.

     Courtesy of FORD MOTOR COMPANY

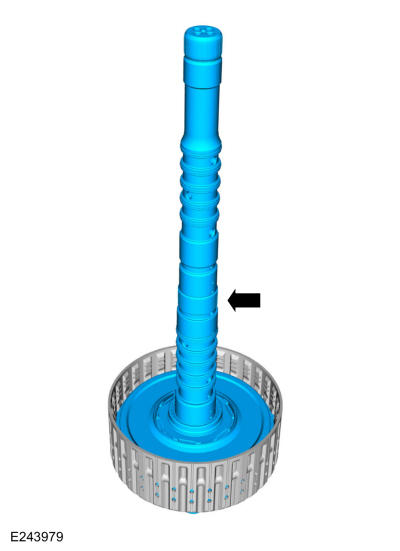

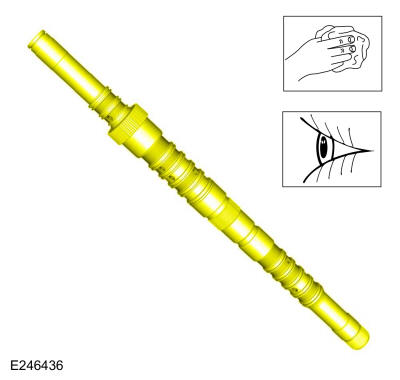

174. Clean and inspect the input shaft.

     Courtesy of FORD MOTOR COMPANY

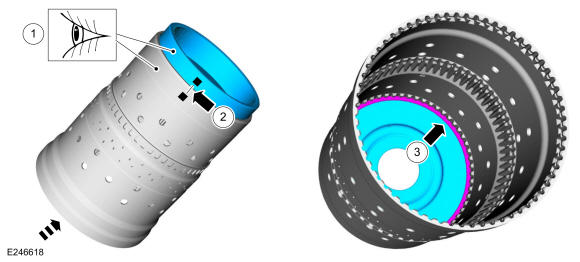

175. NOTE: Do not compress the balance dam too far or damage to the E clutch hub can occur. Only compress the E clutch hub far enough to remove the retainer.

     Using the special tool and a press, compress the E clutch balance dam and remove the retainer. Use Special Service Tool: 307-741 Spring Compressor, F Clutch. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

176. Pry the E clutch piston and balance dam upward and remove the piston and balance dam from the E clutch hub.

     Courtesy of FORD MOTOR COMPANY

177. Remove the E clutch balance dam and discard the E clutch piston.

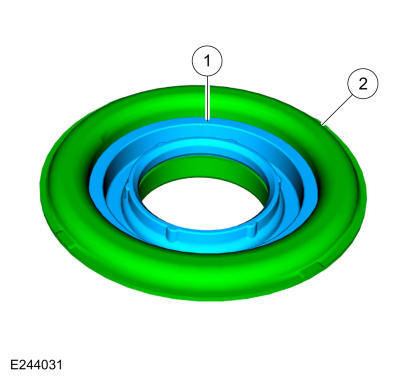

     1. E clutch balance dam
     2. E clutch piston

     Courtesy of FORD MOTOR COMPANY

178. Remove and discard the E clutch balance dam outer seal.

     Courtesy of FORD MOTOR COMPANY

179. Remove the E clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

180. Remove the E clutch assembly. Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

     Courtesy of FORD MOTOR COMPANY

181. Remove and discard the E clutch piston and balance dam inner seals.

     Courtesy of FORD MOTOR COMPANY

182. Clean and inspect the E clutch hub.

     Courtesy of FORD MOTOR COMPANY

183. Install the new E clutch piston and balance dam inner seals. Lubricate the seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

184. NOTE: Clutch plate quantity is model dependent based on engine displacement.

     Soak the E clutch plates in clean transmission fluid. Install the E clutch assembly.

     1. Pressure plate (select fit)
     2. Friction plates

        Material

        : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)

     3. NOTE: Align the inner splines of the steel plates with the pressure plate internal splines.

        Steel plates

     4. Apply plate (2.9-3.0)

     Courtesy of FORD MOTOR COMPANY

185. Install the E clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

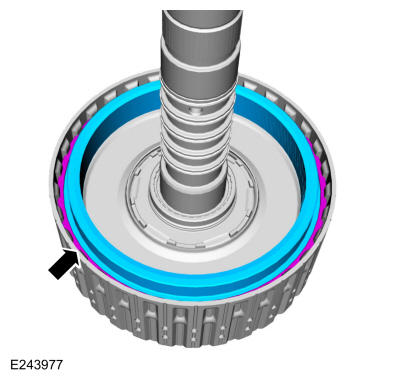

186. Install a new E clutch balance dam outer seal. Lubricate the seal with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

187. Install the E clutch balance dam in the new E clutch piston.
     1. E clutch balance dam
     2. E clutch piston

     Courtesy of FORD MOTOR COMPANY

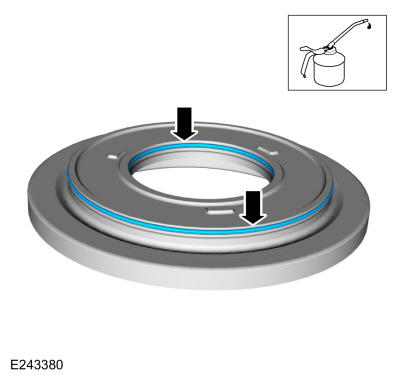

188. Lubricate the new E clutch piston seal with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

189. Install the new E clutch piston and balance dam in the E clutch hub.

     Courtesy of FORD MOTOR COMPANY

190. NOTE: Do not compress the balance dam too far or damage to the E clutch hub can occur. Only compress the E clutch hub far enough to install the retainer.

     Using the special tool and a press, compress the E clutch balance dam and install the retainer. Use Special Service Tool: 307-741 Spring Compressor, F Clutch. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

191. Assemble the special tools and position the E clutch assembly on the special tool. Use Special Service Tool: 307-662 Gauge, Clutch Pack Endplay., 307-003 (T57L-500-B) Holding Fixture, Transmission.

     Courtesy of FORD MOTOR COMPANY

192. Using the special tool, measure the E clutch clearance. Position the plunger so it rests on the top surface of the pressure plate. Zero the dial indicator. Pull up on the pressure plate and measure and record the clutch clearance in 3 different places. Average the 3 recorded clutch clearance measurements and compare the measurement to the clutch clearance chart in specifications to determine the correct size pressure plate. Install the correct E clutch pressure plate. Refer to: Specifications . Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

     Courtesy of FORD MOTOR COMPANY

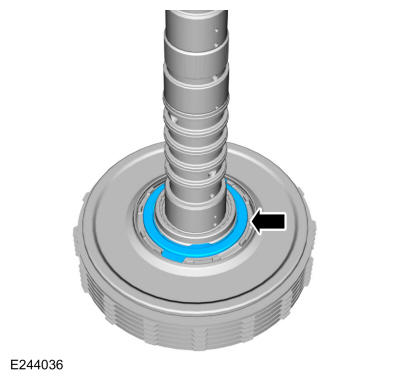

193. Install the new input shaft D-ring seals.

     Courtesy of FORD MOTOR COMPANY

194. Install the input shaft in the E clutch and install the snap ring.

     Courtesy of FORD MOTOR COMPANY

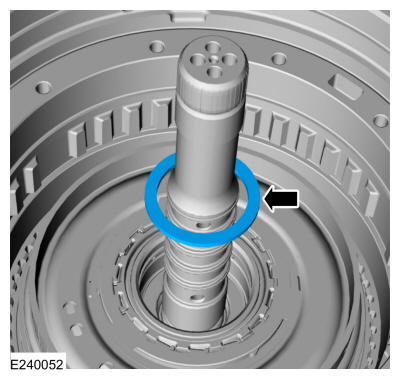

195. Install the (T6) thrust bearing onto the E clutch with the tab locators down. Snap the bearing into place.

     Courtesy of FORD MOTOR COMPANY

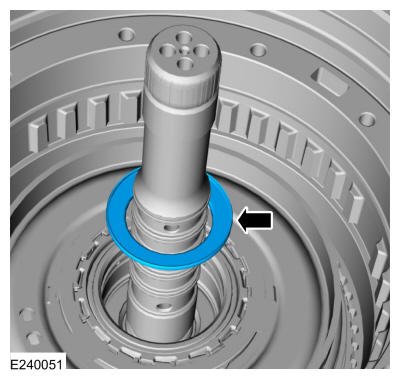

196. Install the (T7) thrust bearing onto the E clutch with the tab locators up. Snap the bearing into place.

     Courtesy of FORD MOTOR COMPANY

197. NOTE: Align the outer splines on the friction plates.

     Install the input shaft and the E clutch into the No. 4 shell and sun gear.

     Courtesy of FORD MOTOR COMPANY

198. Install the lower rear No. 3 ring gear snap ring.

     Courtesy of FORD MOTOR COMPANY

199. Install the No. 3 ring gear and the snap ring. Align the snap ring gap 180° from the bottom snap ring gap.

     Courtesy of FORD MOTOR COMPANY

200. Install the special tool and adjust the special tool to align the bottom edge of the tool with the top edge of the bottom Teflon® seal groove. Use Special Service Tool: 307-747 Installer/ Sizer, Input Shaft Solid Sealing Rings; Large.

     Courtesy of FORD MOTOR COMPANY

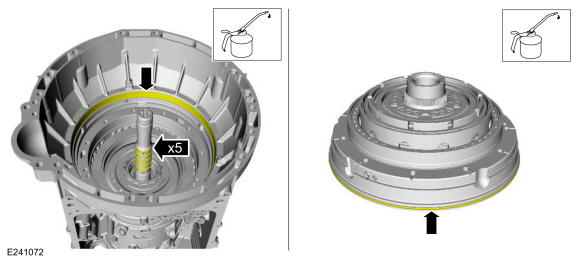

201. Install a new Teflon® seal on the special tool. Use Special Service Tool: 307-747 Installer/ Sizer, Input Shaft Solid Sealing Rings; Large.

     Courtesy of FORD MOTOR COMPANY

202. Using the top half of the special tool, slide the Teflon® seal into the groove. Remove the special tools and repeat the steps for the other 4 Teflon® seals. Use Special Service Tool: 307-747 Installer/ Sizer, Input Shaft Solid Sealing Rings; Large.

     Courtesy of FORD MOTOR COMPANY

203. Install the special tool to size the 5 Teflon® seals. Allow the special tool to stay on the input shaft for 5 minutes prior to final assembly. Use Special Service Tool: 307-747 Installer/ Sizer, Input Shaft Solid Sealing Rings; Large.

     Courtesy of FORD MOTOR COMPANY

204. Install the No. 1 sun gear in the No. 1 planetary carrier.

     Courtesy of FORD MOTOR COMPANY

205. Install the No. 2 sun gear.

     Courtesy of FORD MOTOR COMPANY

206. Install the No. 2 planetary carrier.

     Courtesy of FORD MOTOR COMPANY

207. Install the (T5) bearing.

     Courtesy of FORD MOTOR COMPANY

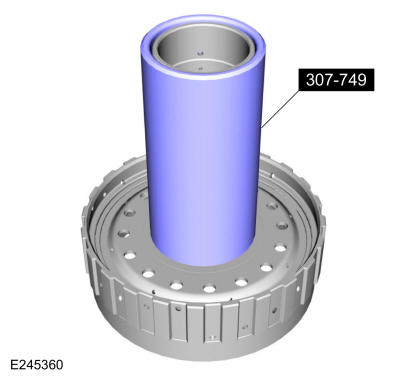

208. Remove Special Service Tool: 307-749 Installer/Sizer, R2-S3 Shaft Solid Seal.

     Courtesy of FORD MOTOR COMPANY

209. Install the No. 3 sun gear shaft into the CDF clutch assembly.
     1. Position the CDF clutch assembly on 2 blocks of wood. Use the General Equipment: Wooden Block
     2. Rotate the No. 3 sun gear shaft back and forth to install.
     3. NOTE: When the No. 3 sun gear shaft is correctly installed the clearance between CDF clutch assembly and the special tool is approximately 1 mm.

        Using the special tool and a feeler gauge, check the clearance between the CDF clutch assembly and the special tool. Use Special Service Tool: 307-661 Gauge, End Play. Use the General Equipment: Feeler Gauge

     Courtesy of FORD MOTOR COMPANY

210. While holding the sun gear No. 3 shaft, flip the CDF clutch assembly over and install it on to the No. 2 planetary carrier.

     Courtesy of FORD MOTOR COMPANY

211. Install the No. 3 planetary carrier.

     Courtesy of FORD MOTOR COMPANY

212. Install the No. 3 sun gear.
     1. NOTE: The No. 3 sun gear shaft splines will be flush with the No. 3 sun gear splines when correctly installed.

        Check the No. 3 sun gear shaft for correct installation.

     Courtesy of FORD MOTOR COMPANY

213. Remove Special Service Tool: 307-747 Installer/ Sizer, Input Shaft Solid Sealing Rings; Large.

     Courtesy of FORD MOTOR COMPANY

214. Install the E clutch and input shaft assembly.

     Courtesy of FORD MOTOR COMPANY

215. Install the (T8) thrust bearing.

     Courtesy of FORD MOTOR COMPANY

216. 1. NOTE: Some early build transmissions are not equipped with lazer applied ink marks.

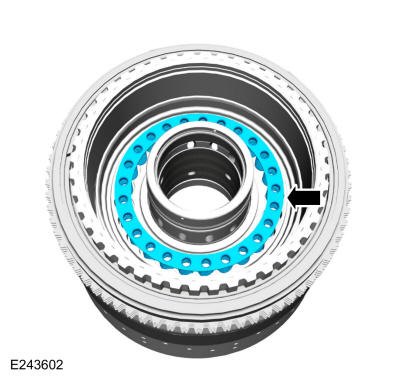

        If the No. 4 ring gear was removed, inspect the ring gear and the clutch and planetary container cylinder for lazer applied ink marks.

     2. NOTE: If ink marks are present the marks must be aligned or a transmission vibration can occur.

        If ink marks are present align the marks and install the No. 4 ring gear on the clutch and planetary container cylinder.

     3. Install the No. 4 ring gear snap ring.

     Courtesy of FORD MOTOR COMPANY

217. 1. NOTE: Some early build transmissions are not equipped with lazer applied ink marks.

        Inspect the No. 1 planetary carrier and the clutch and planetary container cylinder for lazer applied ink marks.

     2. NOTE: If ink marks are present the marks must be aligned or a transmission vibration can occur.

        If ink marks are present align the marks and install the clutch and planetary container cylinder onto the No. 1 planetary carrier and install the snap ring. Make sure the snap ring is seated.

     3. Install the No. 1 planetary carrier snap ring. Make sure the snap ring is seated.

     Courtesy of FORD MOTOR COMPANY

218. Using the special tool, install a new Teflon® seal in the groove on the input shaft. Use Special Service Tool: 307-653 Sizer, Input Shaft Teflon Seal.

     Courtesy of FORD MOTOR COMPANY

219. Using the special tool, size the Teflon® seal. Allow the special tool to stay on the input shaft for 5 minutes prior to final assembly. Use Special Service Tool: 307-653 Sizer, Input Shaft Teflon Seal.

     Courtesy of FORD MOTOR COMPANY

220. Install the special tool and adjust the special tool to align the bottom edge of the tool with the top edge of the bottom Teflon® seal groove. Use Special Service Tool: 307-748 Installer/Sizer, Input Shaft Solid Sealing Rings; Small.

     Courtesy of FORD MOTOR COMPANY

221. Install a new Teflon® seal on the special tool. Use Special Service Tool: 307-748 Installer/Sizer, Input Shaft Solid Sealing Rings; Small.

     Courtesy of FORD MOTOR COMPANY

222. Using the top half of the special tool, slide the Teflon® seal into the groove. Remove the special tools and repeat the steps for the other 4 Teflon® seals. Use Special Service Tool: 307-748 Installer/Sizer, Input Shaft Solid Sealing Rings; Small.

     Courtesy of FORD MOTOR COMPANY

223. Install the special tool to size the 5 Teflon® seals. Allow the special tool to stay on the input shaft for 5 minutes prior to final assembly. Use Special Service Tool: 307-748 Installer/Sizer, Input Shaft Solid Sealing Rings; Small.

     Courtesy of FORD MOTOR COMPANY

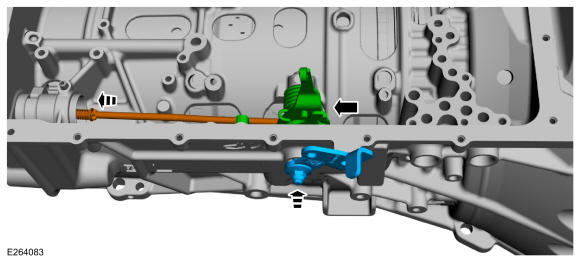

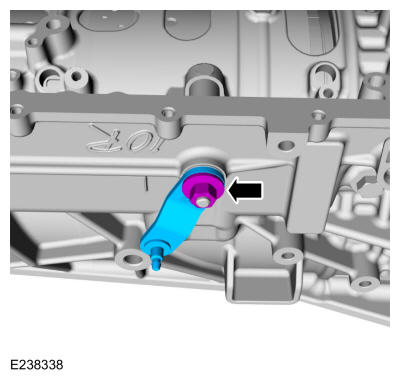

224. Install the TR sensor detent spring and loosely install the bolt.

     Courtesy of FORD MOTOR COMPANY

     Vehicles with Rotary Gear Shift Knob / Gear Shift Buttons

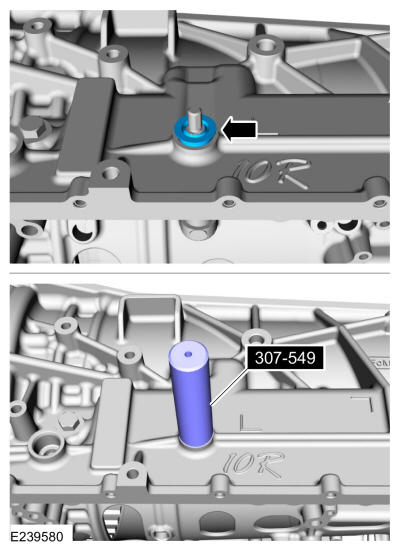

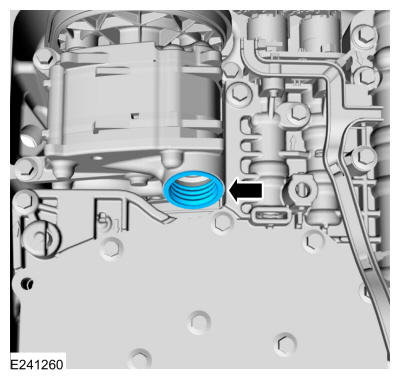

225. Using the special tool install the new manual shaft seal in the transmission case. Use Special Service Tool: 307-549 Installer, Shift Shaft Fluid Seal.

     Courtesy of FORD MOTOR COMPANY

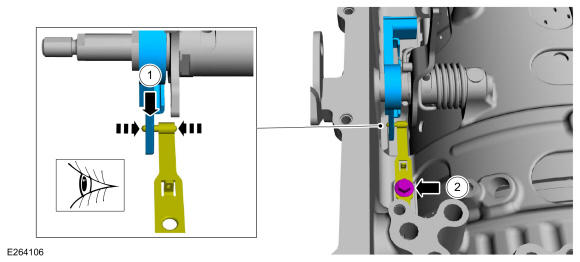

226. Slide the manual shaft and park override lever into the TR sensor.

     Courtesy of FORD MOTOR COMPANY

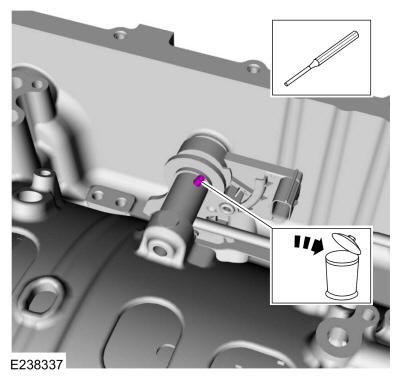

227. Install the new manual shaft-to-TR sensor roll pin flush with the shaft. Use the General Equipment: Punch

     Courtesy of FORD MOTOR COMPANY

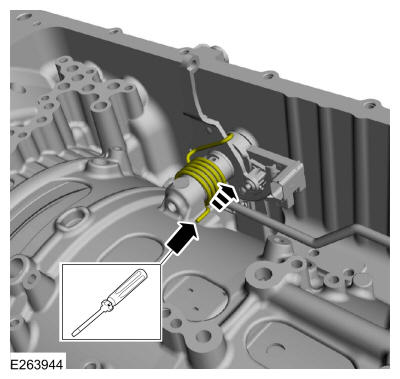

228. Slide the end of the park return spring onto the transmission case.

     Courtesy of FORD MOTOR COMPANY

     Vehicles with Manual Control Lever

229. Install the park pawl actuator rod, manual shaft and the TR sensor.

     Courtesy of FORD MOTOR COMPANY

230. Install the new manual control shaft-to-TR sensor roll pin to the specified height.

     Courtesy of FORD MOTOR COMPANY

231. Install the manual shaft seal on the manual shaft. Using the special tool install the manual shaft seal in the transmission case. Use Special Service Tool: 307-549 Installer, Shift Shaft Fluid Seal.

     Courtesy of FORD MOTOR COMPANY

232. Install the selector lever and the nut.

     Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

     All vehicles

233. 1. Align the detent spring in the center of the TR sensor.
     2. Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

234. If equipped with 2WD, install the (T11) thrust bearing and thrust washer.
     1. Thrust washer
     2. Thrust bearing (T11)

     Courtesy of FORD MOTOR COMPANY

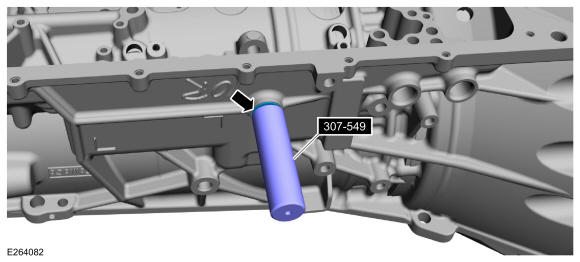

235. Using the special tool, install the output shaft seal. Use Special Service Tool: 307-660 Installer, Front Pump Seal.

     Courtesy of FORD MOTOR COMPANY

236. Install new seals on the output shaft.

     Courtesy of FORD MOTOR COMPANY

237. Install the (T10) thrust bearing on the output shaft.

     Courtesy of FORD MOTOR COMPANY

238. Rotate the manual lever to N. Install the output shaft and planetary carrier assembly No. 4.

     Courtesy of FORD MOTOR COMPANY

239. If equipped with a park override lever, install a new park override lever bolt.

     Torque: 177 lb.in (20 Nm)

     Courtesy of FORD MOTOR COMPANY

     Rear Wheel Drive (RWD) vehicles

240. Rotate the manual lever to P. Using the special tool, install the new output shaft nut. Hold the output shaft and planetary carrier assembly No. 4 to the back of the transmission case while tightening. Use Special Service Tool: 307-458 Socket, Output Shaft Locknut.

     Torque: 148 lb.ft (200 Nm)

     Courtesy of FORD MOTOR COMPANY

241. If removed, install the anti-ting ring.

     Courtesy of FORD MOTOR COMPANY

242. 1. NOTE: Some early build transmissions are not equipped with lazer applied ink marks.

        Inspect the output shaft and the output shaft flange for lazer applied ink marks.

     2. NOTE: If ink marks are present the marks must be aligned or a transmission vibration can occur.

        If ink marks are present align the marks and install the output shaft flange on the output shaft.

     3. Install a new output shaft flange bolt.

        Torque: 81 lb.ft (110 Nm)

     Courtesy of FORD MOTOR COMPANY

     All vehicles

243. Install the (T9) thrust bearing.

     Courtesy of FORD MOTOR COMPANY

244. Lubricate the output shaft bushing with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

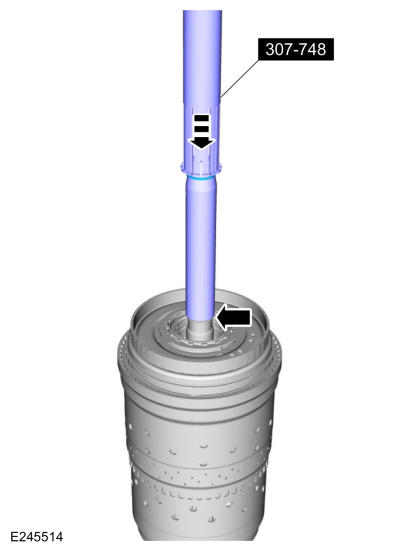

245. Remove Special Service Tool: 307-748 Installer/Sizer, Input Shaft Solid Sealing Rings; Small.

     Courtesy of FORD MOTOR COMPANY

246. Remove Special Service Tool: 307-653 Sizer, Input Shaft Teflon Seal.

     Courtesy of FORD MOTOR COMPANY

247. Using the special tools and a floor crane, install the clutch and planetary assembly. Use Special Service Tool: 307-651 Bracket, Pump Remover/Installer., 307-651-01 Adapter for 307-651 (Super Sub Assembly Lifting).

     Courtesy of FORD MOTOR COMPANY

248. Using the special tool, remove the B clutch snap ring.
     1. NOTE: The B clutch snap ring ends are positioned in the opening of the B clutch pressure plate with a raised notch.

        Note the position of the B clutch snap ring ends for assembly.

     2. Using the special tools and a press, compress the B clutch assembly. Use Special Service Tool: 307-741 Spring Compressor, F Clutch. Use the General Equipment: Hydraulic Press
     3. Remove the B clutch snap ring.

     Courtesy of FORD MOTOR COMPANY

249. NOTE: Remove the One-Way Clutch (OWC) and B clutch assembly gently, as the One-Way Clutch (OWC) rollers and springs could become dislodged.

     Gently remove the One-Way Clutch (OWC) and B clutch assembly.

     Courtesy of FORD MOTOR COMPANY

250. NOTE: If replacing B clutch separating springs, all separating springs must be replaced as a matching set or damage can occur.

     Remove the B clutch assembly from the One-Way Clutch (OWC). Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

     Courtesy of FORD MOTOR COMPANY

251. Remove the B clutch apply plate and the one remaining B clutch separating spring.
     1. B clutch separating spring
     2. B clutch apply plate

     Courtesy of FORD MOTOR COMPANY

252. 1. Use compressed air into the oil passage hole.
     2. Remove and discard the B clutch piston.

     Courtesy of FORD MOTOR COMPANY

253. 1. Using the special tools and a press, compress the A clutch piston return spring. Use Special Service Tool: 307-741 Spring Compressor, F Clutch., 307-733 Compressor, Clutch Piston. Use the General Equipment: Hydraulic Press
     2. Remove the A clutch piston return spring snap ring.

     Courtesy of FORD MOTOR COMPANY

254. Remove the A clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

255. Use compressed air into the oil passage hole and remove the A clutch piston.

     Courtesy of FORD MOTOR COMPANY

256. Remove and discard the A clutch piston outer seal and the A clutch piston inner seal.

     Courtesy of FORD MOTOR COMPANY

257. Remove and discard the front support-to-case seal.

     Courtesy of FORD MOTOR COMPANY

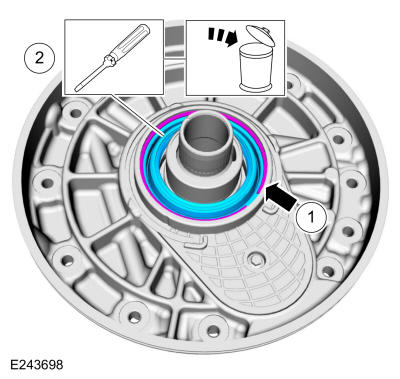

258. 1. Remove the torque converter hub seal snap ring.
     2. NOTE: When removing the torque converter hub seal use care not to scratch the front support cover sealing surface.

        Remove and discard the torque converter hub seal.

     Courtesy of FORD MOTOR COMPANY

259. Remove the front support cover bolt and the front support cover snap ring.

     Courtesy of FORD MOTOR COMPANY

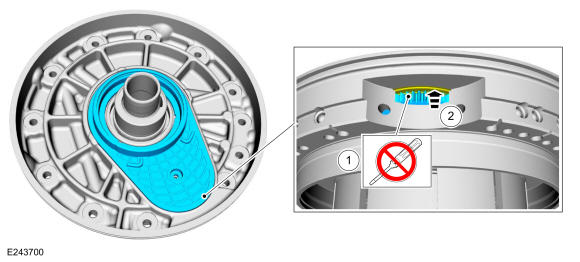

260. 1. NOTE: Do not pry on the transmission fluid pump drive gear to remove the front support cover or damage to the transmission fluid pump drive gear can occur.
     2. Push up on the back of the front support cover and remove the front support cover from the front support.

     Courtesy of FORD MOTOR COMPANY

261. Remove the transmission fluid pump drive gear.

     Courtesy of FORD MOTOR COMPANY

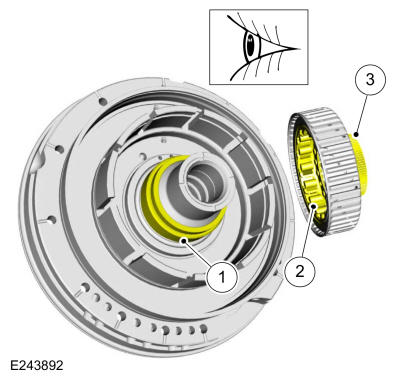

262. 1. Inspect the transmission fluid pump idler gear for damage.
     2. Make sure the transmission fluid pump idler gear bearing spins freely and has no excessive end play.

     Courtesy of FORD MOTOR COMPANY

263. NOTE: Tighten the special tools evenly to remove the transmission fluid pump idler gear.

     If necessary, use the special tools, to remove the transmission fluid pump idler gear and bearing. Use Special Service Tool: 307-743 Remover, Pump Drive Gear.

     Courtesy of FORD MOTOR COMPANY

264. Using a press, to remove and discard the transmission fluid pump idler gear bearing. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

265. Remove and discard the stator support seal.

     Courtesy of FORD MOTOR COMPANY

266. NOTE: If the One-Way Clutch (OWC) needs to be replaced the front support must be replaced.

     Clean and inspect the components for damage or excessive ware.

     1. One-Way Clutch (OWC) inner race
     2. One-Way Clutch (OWC) rollers
     3. Gear splines

     Courtesy of FORD MOTOR COMPANY

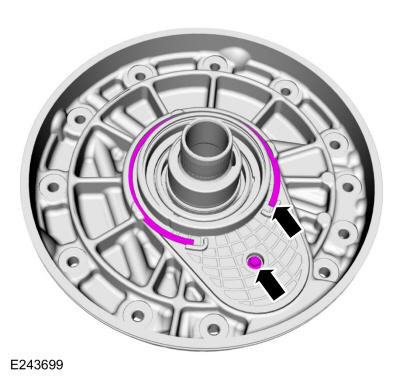

267. Install the new stator support seal on the front support. Lubricate the stator support seal with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

268. If removed, using the special tool and a press, install the new transmission fluid pump idler gear bearing. Use Special Service Tool: 307-736 Installer, Pump Drive Gear Bearing. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

269. 1. Position the special tool on the front support. Use Special Service Tool: 307-737 Press Tool, Oil Pump Drive Idler Gear.
     2. Using the special tools and a press, install the transmission fluid pump idler gear and bearing. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

270. Install the transmission fluid pump drive gear with the flat side down.

     Courtesy of FORD MOTOR COMPANY

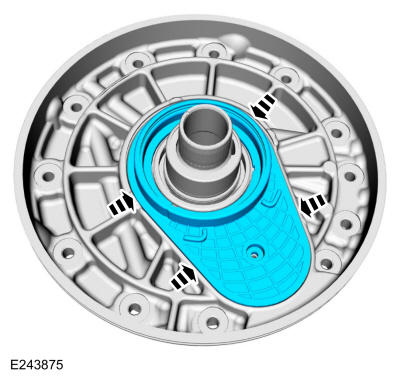

271. Install the front support cover by pressing down evenly by hand.

     Courtesy of FORD MOTOR COMPANY

272. NOTE: The front support cover snap ring ends are located in the cover alignment features.

     Install the front support cover bolt and the front support cover snap ring.

     Torque: 62 lb.in (7 Nm)

     Courtesy of FORD MOTOR COMPANY

273. Install the new torque converter hub seal on the special tools. Use Special Service Tool: 307-750 Installer, Converter Seal., 205-1018 Installation Tube.

     Courtesy of FORD MOTOR COMPANY

274. Using the special tools, install the new torque converter hub seal. Use Special Service Tool: 307-750 Installer, Converter Seal., 205-1018 Installation Tube.

     Courtesy of FORD MOTOR COMPANY

275. Install the torque converter hub seal snap ring.

     Courtesy of FORD MOTOR COMPANY

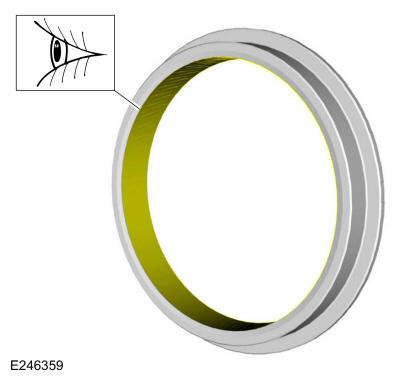

276. Install the new front support-to-case seal with the seal color visible from the outside.

     Courtesy of FORD MOTOR COMPANY

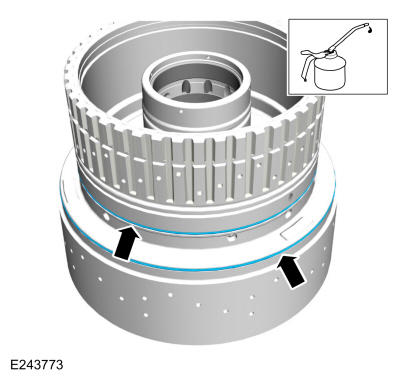

277. Install the new A clutch piston outer seal and the new A clutch piston inner seal. Lubricate the A clutch piston seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

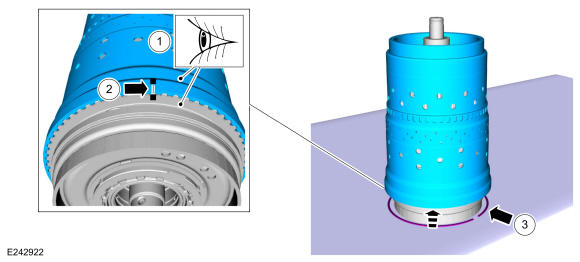

278. Install the A clutch piston by pushing down on the piston until an audible click is heard.

     Courtesy of FORD MOTOR COMPANY

279. Install the A clutch piston return spring with the retaining tabs facing upward.

     Courtesy of FORD MOTOR COMPANY

280. 1. Using the special tools and a press, compress the A clutch piston return spring. Use Special Service Tool: 307-741 Spring Compressor, F Clutch., 307-733 Compressor, Clutch Piston. Use the General Equipment: Hydraulic Press
     2. NOTE: Be sure snap ring ends are not located on the A clutch piston return spring retaining tabs.

        Install the A clutch piston return spring snap ring ends in the center of the return spring retaining tabs.

     Courtesy of FORD MOTOR COMPANY

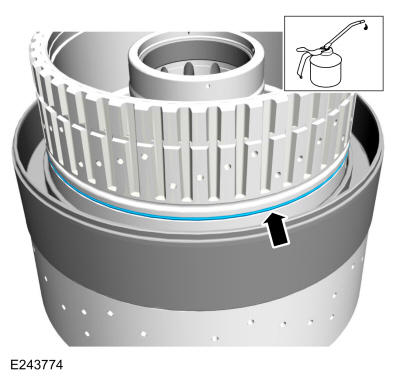

281. 1. Lubricate the B clutch piston seals with petroleum jelly.
     2. Install the new B clutch piston.

     Courtesy of FORD MOTOR COMPANY

282. Install the B clutch apply plate.

     Courtesy of FORD MOTOR COMPANY

283. NOTE: The B clutch separating springs are not installed when measuring the B clutch clearance.

     Temporarily install the B clutch friction plates, B clutch steel plates and the B clutch pressure plate to measure the B clutch clearance.

     Courtesy of FORD MOTOR COMPANY

284. Install the B clutch snap ring with the grooved side down.
     1. B clutch snap ring grooved side

     Courtesy of FORD MOTOR COMPANY

285. Assemble the special tools and position the front support assembly on the special tool. Use Special Service Tool: 307-662 Gauge, Clutch Pack Endplay., 307-003 (T57L-500-B) Holding Fixture, Transmission.

     Courtesy of FORD MOTOR COMPANY

286. Using the special tool, measure the B clutch clearance. Position the plunger so it rests on the top surface of the pressure plate. Gently push down on the pressure plate to zero the dial indicator. Pull up on the pressure plate and measure and record the clutch clearance in 3 different places. Average the 3 recorded clutch clearance measurements and compare the measurement to the clutch clearance chart in specifications to determine the correct size snap ring. Install the correct B clutch snap ring. Refer to: Specifications . Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

     Courtesy of FORD MOTOR COMPANY

287. Remove the B clutch snap ring.

     Courtesy of FORD MOTOR COMPANY

288. Remove the B clutch assembly.

     Courtesy of FORD MOTOR COMPANY

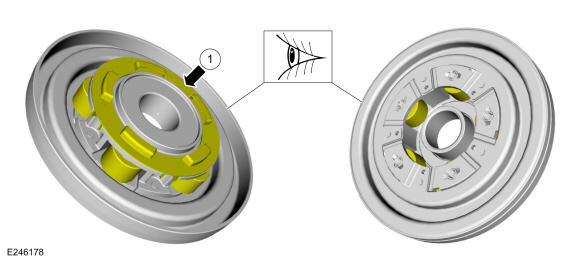

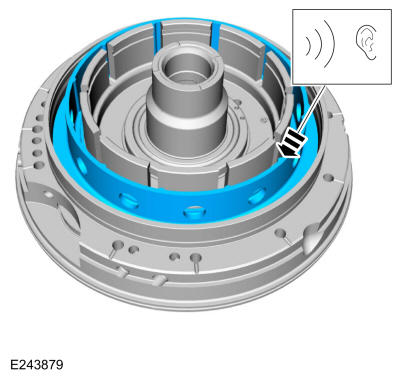

289. Verify that all the One-Way Clutch (OWC) rollers and springs are seated.
     1. Springs
     2. Rollers

     Courtesy of FORD MOTOR COMPANY

290. NOTE: The One-Way Clutch (OWC) hub should rotate counter-clockwise freely when installed correctly.
     1. Position the special tool on the front support. Use Special Service Tool: 307-734 Tool, OWC Alignment.
     2. With a counter-clockwise rotation gently install the One-Way Clutch (OWC) onto the front support.

     Courtesy of FORD MOTOR COMPANY

291. NOTE: If replacing B clutch separating springs, all separating springs must be replaced as a matching set or damage can occur.
     NOTE: Clutch plate quantity is model dependent based on engine displacement.

     Soak the B clutch plates in clean transmission fluid. With the B clutch apply plate installed, correctly install the B clutch plates and springs.

     1. B clutch friction plates

        Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)

     2. B clutch separating springs
     3. B clutch steel plates
     4. B clutch pressure plate

     Courtesy of FORD MOTOR COMPANY

292. NOTE: Be sure to align the top B clutch friction to the One-Way Clutch (OWC) hub or damage can occur.

     Use the special tools to compress the B clutch assembly. Use Special Service Tool: 307-741 Spring Compressor, F Clutch. Use the General Equipment: Hydraulic Press

     Courtesy of FORD MOTOR COMPANY

293. Install the B clutch snap ring in the correct location with the grooved side down.
     1. B clutch snap ring grooved side

     Courtesy of FORD MOTOR COMPANY

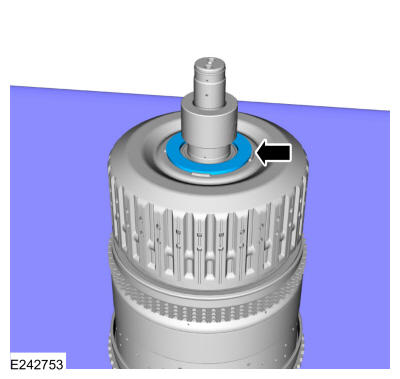

294. Install the (T3) thrust bearing.

     Courtesy of FORD MOTOR COMPANY

295. Using the special tools and a depth gauge, measure the distance from the top of the special tool to top of the (T3) thrust bearing in 2 different places. Average the measurements. Record this as measurement A. Use Special Service Tool: 307-661 Gauge, End Play.

     Courtesy of FORD MOTOR COMPANY

296. Using the special tools and a depth gauge, measure the distance from the top of the special tool to front support mating surface in 2 different places. Average the measurements. Record this as measurement B. Use Special Service Tool: 307-661 Gauge, End Play.

     Courtesy of FORD MOTOR COMPANY

297. Using the special tool and a depth gauge, measure the distance from the top of the special tool to the transmission deck mating surface in 2 different places. Average the measurements. Record this measurement as measurement D. Use Special Service Tool: 307-661 Gauge, End Play.

     Courtesy of FORD MOTOR COMPANY

298. Using the special tool and a depth gauge, measure the distance from the top of the special tool to (T3) thrust bearing surface in 2 different places. Average the measurements. Record this as measurement E. Use Special Service Tool: 307-661 Gauge, End Play.

     Courtesy of FORD MOTOR COMPANY

299. NOTE: Recorded measurements B and E are included to compensate for the difference in height of the special tool.

     Calculate the correct shim thickness. Subtract measurement B from measurement A and record this as measurement C. Subtract measurement E from measurement D and record this as measurement F. Subtract measurement F from measurement C to get the clearance between the front support and the (T3) thrust bearing. Using the Selective Fit Shim Charts in specifications, select the correct shim. Refer to: Specifications .

     Courtesy of FORD MOTOR COMPANY

300. Install the selective shim.

     Courtesy of FORD MOTOR COMPANY

301. NOTE: The A clutch separating springs are not installed when measuring the A clutch clearance.

     Temporarily install the A clutch into the transmission out of order to measure the A clutch clearance.

     1. Install the pressure plate.
     2. Install the friction plates.
     3. Install the steel plates.
     4. Install the wave spring.
     5. Install the apply plate.

     Courtesy of FORD MOTOR COMPANY

302. Using the special tools and a depth gauge, measure the distance from the top of the special tool to the top of the A clutch apply plate in 2 different places. Average the measurements. Record this as measurement A. Use Special Service Tool: 307-661 Gauge, End Play.

     Courtesy of FORD MOTOR COMPANY

303. Using the special tools and a depth gauge, measure the distance from the top of the special tool to the front support mating surface in 2 different places. Average the measurements. Record this as measurement B. Use Special Service Tool: 307-661 Gauge, End Play.

     Courtesy of FORD MOTOR COMPANY

304. Using the special tool and a depth gauge, measure the distance from the top of the special tool to the transmission deck mating surface in 2 different places. Average the measurements. Record this as measurement D. Use Special Service Tool: 307-661 Gauge, End Play.

     Courtesy of FORD MOTOR COMPANY

305. Using the special tool and a depth gauge, measure the distance from the top of the special tool to the A clutch piston surface in 2 different places. Average the measurements. Record this as measurement E. Use Special Service Tool: 307-661 Gauge, End Play.

     Courtesy of FORD MOTOR COMPANY

306. Subtract measurement B from measurement A and record this as measurement C. Subtract measurement E from measurement D and record this as measurement F. Subtract measurement F from measurement C to get the A clutch clearance. Compare the A clutch clearance to the clutch specifications chart. If the A clutch clearance is not with in the specification range select the correct A clutch apply plate. Refer to: Specifications .

     Courtesy of FORD MOTOR COMPANY

307. NOTE: If replacing A clutch separating springs, all separating springs must be replaced as a matching set or damage can occur.
     NOTE: Clutch plate quantity is model dependent based on engine displacement.

     Soak the A clutch plates in clean transmission fluid. Install the A clutch assembly.

     1. Pressure plate
     2. Friction plates

        Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)

     3. Separator springs
     4. Steel plates
     5. Apply plate (select fit)
     6. Wave spring

     Courtesy of FORD MOTOR COMPANY

308. Lubricate the transmission case-to-front support sealing surface, the Teflon seals and the front support O-ring with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

309. Install the front support into the transmission case. Align the pump gear to the pump drive gear pocket area. Rotate the input and output shafts to align the one-way clutch splines with the No. 1 sun gear.

     Courtesy of FORD MOTOR COMPANY

310. Install the new front support bolts. Tighten the bolts in a crisscross pattern.

     Torque: 20 lb.ft (27 Nm)

     Courtesy of FORD MOTOR COMPANY

311. Using the special tool, install the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.

     Courtesy of FORD MOTOR COMPANY

312. Install the special tool to hold the torque converter. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

     Courtesy of FORD MOTOR COMPANY

313. Install the wiring harness. Lubricate the O-ring seals with petroleum jelly. Align the tab on the electrical connector with the indention in the transmission case and install the main electrical connector in the transmission case. Align the wiring harness and install the bolts.
     1. Torque: 97 lb.in (11 Nm)
     2. Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

314. Support the opposite side of the TR sensor and connect the electrical connector.

     Courtesy of FORD MOTOR COMPANY

315. Install the speed sensors.
     1. Intermediate Speed Sensor A (ISSA)
     2. TSS sensor
     3. Intermediate Speed Sensor B (ISSB)
     4. OSS sensor
     • Torque

       : 62 lb.in (7 Nm)

     Courtesy of FORD MOTOR COMPANY

316. Connect and lock the speed sensors.
     1. Intermediate Speed Sensor A (ISSA)
     2. TSS sensor
     3. Intermediate Speed Sensor B (ISSB)
     4. OSS sensor

     Courtesy of FORD MOTOR COMPANY

317. If removed, install the transmission fluid pump driven gear inner cover and the bolts.

     Torque: 115 lb.in (13 Nm)

     Courtesy of FORD MOTOR COMPANY

318. 1. If removed, install the transmission fluid pump driven gear and the retaining ring.
     2. Install the transmission fluid pump driven gear outer cover.

     Courtesy of FORD MOTOR COMPANY

319. Install the transmission fluid pump and the bolts.

     Torque: 71 lb.in (8 Nm)

     Courtesy of FORD MOTOR COMPANY

320. NOTE: Do not install a 71 mm length bolt in the location shown or the transmission clutch and planetary container will be damaged and result in transmission failure.

     Loosely install the main control valve body.

     1. NOTE: Be sure the main control-to-case seal is attached to the main control.

        Connect the internal wiring harness electrical connector while installing the main control valve body.

     2. If equipped with a park pawl lock valve, align the TR sensor with the park pawl lock valve.
     3. Align the guide pins on the main control valve body with the alignment holes in the transmission case.
     4. Loosely install the 68 mm length main control-to-transmission case bolts.

     Courtesy of FORD MOTOR COMPANY

321. Tighten the bolts in the sequence shown.

     Torque: 89 lb.in (10 Nm)

     Fig 1: Main Control Valve Body Bolts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY
322. Lock the main control main electrical connector.

     Courtesy of FORD MOTOR COMPANY

323. Install the filter seal in the pump.

     Courtesy of FORD MOTOR COMPANY

324. NOTE: If the bolts are installed in the wrong locations, transmission damage will occur.
     NOTE: The transmission fluid filter may be reused if no excessive contamination is indicated.

     Install the filter and the bolts in the correct locations.

     1. Short bolt 20 mm
     2. Long bolt 71 mm
     • Torque

       : 93 lb.in (10.5 Nm)

     Courtesy of FORD MOTOR COMPANY

     Auto-Start-Stop vehicles

325. Install the transmission fluid auxiliary pump and loosely install the bolts.

     Courtesy of FORD MOTOR COMPANY

326. Install the new transmission fluid auxiliary pump tube seal.

     Courtesy of FORD MOTOR COMPANY

327. Inspect the transmission fluid auxiliary pump tube O-ring.

     Courtesy of FORD MOTOR COMPANY

328. Install the transmission fluid auxiliary pump tube and loosely install the bolt.

     Courtesy of FORD MOTOR COMPANY

329. 1. Transmission fluid auxiliary pump bolts

        Torque: 97 lb.in (11 Nm)

     2. Transmission fluid auxiliary pump tube bolt

        Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

330. Connect the transmission fluid auxiliary pump electrical connector.

     Courtesy of FORD MOTOR COMPANY

     All vehicles

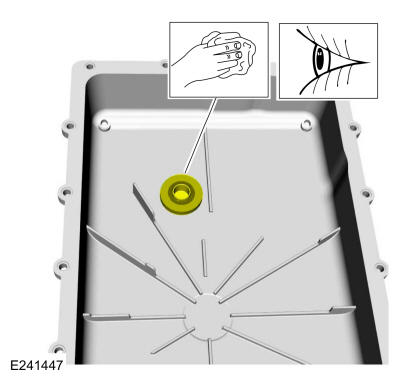

331. Clean and inspect the magnet and the retainer.

     Courtesy of FORD MOTOR COMPANY

332. NOTE: The transmission fluid pan gasket can be reused if not damaged.

     Align the tabs in the noted location and install the transmission fluid pan gasket.

     Courtesy of FORD MOTOR COMPANY

333. NOTE: Install the bolts and studbolts in the correct locations noted during removal.

     Install the transmission fluid pan and loosely install the bolts and studbolts.

     1. Tighten the studbolts in a crisscross pattern.

        Torque: 106 lb.in (12 Nm)

     2. Tighten the bolts in a crisscross pattern.

        Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

334. Install the transmission fluid level indicator.

     Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY
