Transmission Case

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	204-594Forcing screw
Courtesy of FORD MOTOR COMPANY	307-744Remover, Output Shaft Bearing

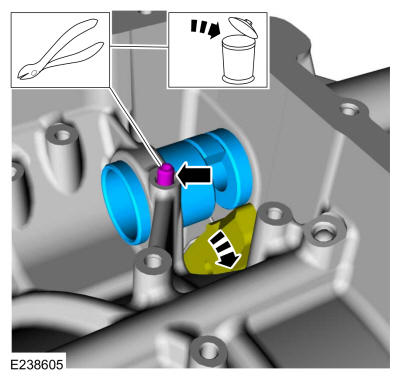

Remove and discard the park pawl actuator rod sleeve roll pin (7G100), move the park pawl out of the park pawl actuator rod sleeve and remove the park pawl actuator rod sleeve.

Courtesy of FORD MOTOR COMPANY
Remove and discard the park pawl actuator rod sleeve seals (2D330).

Courtesy of FORD MOTOR COMPANY
Remove the park pawl shaft plug.

Courtesy of FORD MOTOR COMPANY

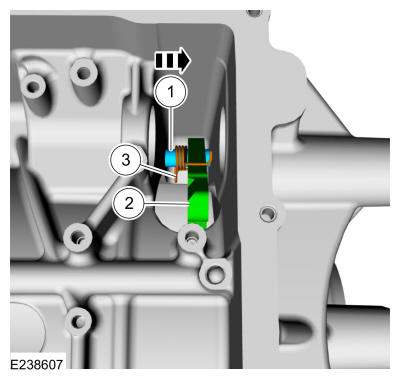

1. Disconnect the park pawl return spring to remove tension from the park pawl shaft and remove the park pawl shaft.
2. Remove the park pawl.
3. Remove the park pawl return spring.
Courtesy of FORD MOTOR COMPANY
Remove the line pressure port and rear case plugs.

Courtesy of FORD MOTOR COMPANY
Using the special tools, remove the bearings and the fluid passage sleeve.
1. Outer output shaft bearingUse Special Service Tool: 204-594 Forcing screw., 307-744 Remover, Output Shaft Bearing.
2. Fluid passage sleeve
3. Inner output shaft bearing

Courtesy of FORD MOTOR COMPANY
