SUBFRAME Front Bearing, Replacing, Vehicles With Fwd: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If a bonded rubber bushing is faulty, then the bonded rubber bushing on the opposite side must also be replaced. For the correct allocation. Refer to the Parts information.

Check the other bushings before replacing a faulty bonded rubber bushing.

If cracks, oil leaks or other damage is visible, this bonded rubber busing must be replaced too.

There are different versions of the bonded rubber bushing. For the correct allocation. Refer to the Parts information.

To replace the rubber bonded bushing, lower the front of the subframe. It is not necessary to remove the subframe.

Do not lower the subframe more than 4 cm on one side.

Identify mounting location to subframe before removing the bonded rubber bushing.

-- Remove the rear wheels. Refer to WHEELS AND TIRES .

-- Remove the rear section from the exhaust system. .

Vehicles with Steel Suspension

-- Remove the coil springs. Refer to SPRING, REMOVING AND INSTALLING, COIL SPRING .

Vehicles with Air Suspension

-- Bleed the rear axle air spring. Refer to SYSTEM, VENTING OR FILLING .

Continuation for All Vehicles

-- Secure the vehicle to the hoist lifting arms -arrow B- with the :T10038 over the striker pin -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Place a piece of foam rubber -1- between the sill panel and the :T10038 and then tension the :T10038 .

NOTE:

Be careful not to scratch the sill panel.

CAUTION:

The Vehicle Could Fall off the Hoist If It Is Not Secured.

-- Remove the underbody covers -1 and 2-. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

-- Place the :VAS6931 under the subframe -1-.

Courtesy of AUDI OF AMERICA, LLC

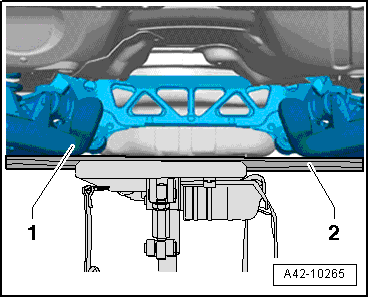

-- Support the subframe on a piece of wood -2-.

-- Remove the left and right bolts -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Install the :T40253 with the thrust bearing from the :3301 and the :T40253/1 , as illustrated, on the opposite side of the bonded rubber bushing being replaced approximately 1.5 cm into the vehicle body.

Courtesy of AUDI OF AMERICA, LLC

:3301
:T40253/1
:T40253

NOTE:

Turn the :T40253/1 on the :T40253 until dimension -a- 4 cm is reached.

-- Lower the subframe 4 cm only.
