Front Bumper Cover End Plate, Removing And Installing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
Removing
-- Remove the front noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

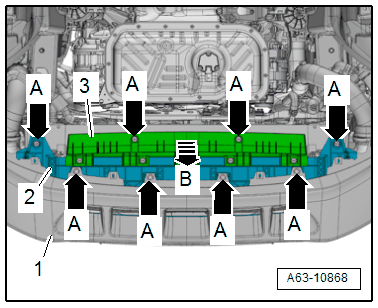

-- Remove the bolts -A arrows-.
-- Pull the rear end panel -3- down slightly -arrow B- and then pull the front end panel -2- back from the bumper cover -1-.
Installing
- Tightening specifications. Refer to OVERVIEW - BUMPER COVER, ONE-PIECE VERSION, AUDI Q5 S LINE AND AUDI SQ5 .
Install in reverse order of removal.
