Overview - Bumper Cover, One-Piece Version, AUDI Q5 S Line And AUDI Sq5

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

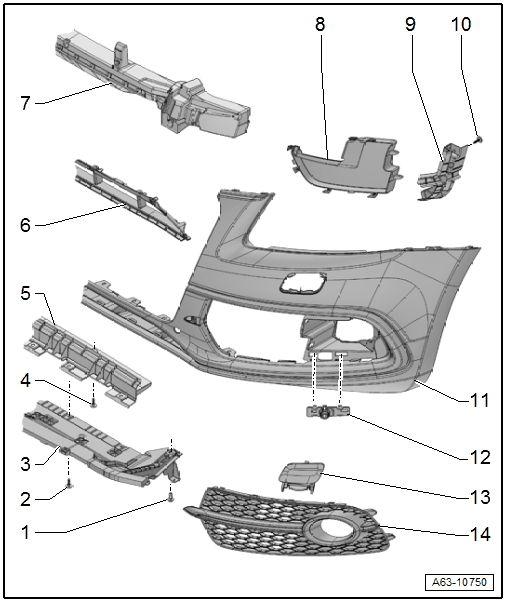

Fig 1: Overview Of Bumper Cover, One-Piece Version (AUDI Q5 S Line And AUDI SQ5)

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 5 Nm
Bolt
- Quantity: 4
- 5 Nm
Front Bumper Cover End Plate
- Removing and installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING, AUDI Q5 S LINE AND AUDI SQ5 .
Bolt
- Quantity: 2
- 5 Nm
Rear Bumper Cover End Plate
- Removing and installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING, AUDI Q5 S LINE AND AUDI SQ5 .
Center Air Intake Grille
- Removing and installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI Q5 S LINE AND AUDI SQ5 .
Molded Foam Piece
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
Cover
Connecting Strip
Bolt
- Quantity: 2
- 2.5 Nm
Front Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Mount
- for the parking aid sensor
- Removing and installing. Refer to PARKING AID SENSOR MOUNT, REMOVING AND INSTALLING .
Spray Nozzle Cover
- For the headlamp washer system
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
Air Intake Grille
- Removing and installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI Q5 .
