Timing Chain Covers Overview

Vehicles built through 05.10

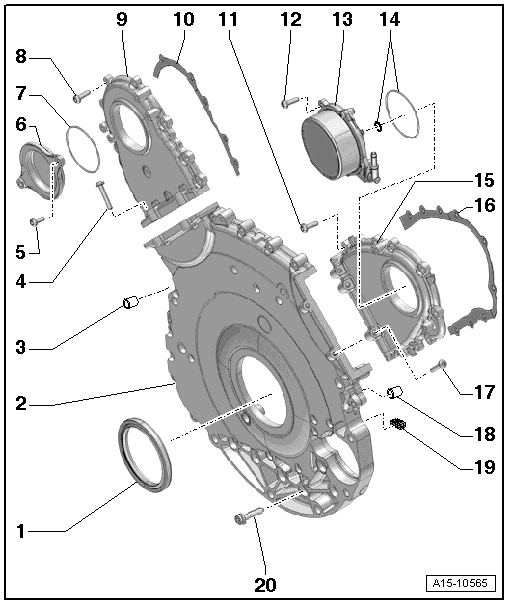

Fig 1: Timing Chain Covers Overview (Vehicles Built Through 05.10)

Courtesy of AUDI OF AMERICA, LLC

1. Crankshaft Shaft Seal, Transmission Side
   • Replacing. Refer to CRANKSHAFT SEAL, REMOVING AND INSTALLING, TRANSMISSION SIDE .
2. Timing Chain Cover Lower Section
   • Removing and Installing. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
3. Alignment Sleeve
   • Quantity: 2
4. Bolt
   • Replace
   • Tightening specification and sequence, refer to Fig 3.
5. Bolt
   • 9 Nm
6. Cover
7. O-Ring
   • Replace
8. Bolt
   • Replace
   • Tightening specification and sequence, refer to Fig 3.
9. Left Timing Chain Cover
   • Removing and Installing. Refer to LEFT TIMING CHAIN COVER, REMOVING AND INSTALLING .
10. Seal
    • Replace
11. Bolt
    • Replace
    • Tightening specification and sequence, refer to Fig 4.
12. Bolt
    • Tightening specification: 9 Nm. .
13. Vacuum Pump
    • Removing and Installing. Refer to VACUUM PUMP, REMOVING AND INSTALLING, 3.0L TDI ENGINE .
14. O-Rings
    • Replace
15. Right Timing Chain Cover
    • Removing and Installing. Refer to RIGHT TIMING CHAIN COVER, REMOVING AND INSTALLING .
16. Seal
    • Replace
17. Bolt
    • Replace
    • Tightening specification and sequence, refer to Fig 4.
18. Alignment Sleeve
    • Quantity: 2
19. Seal
    • Quantity: 2
20. Bolt
    • Tightening specification and sequence, refer to Fig 5.

Vehicles built from 06.10

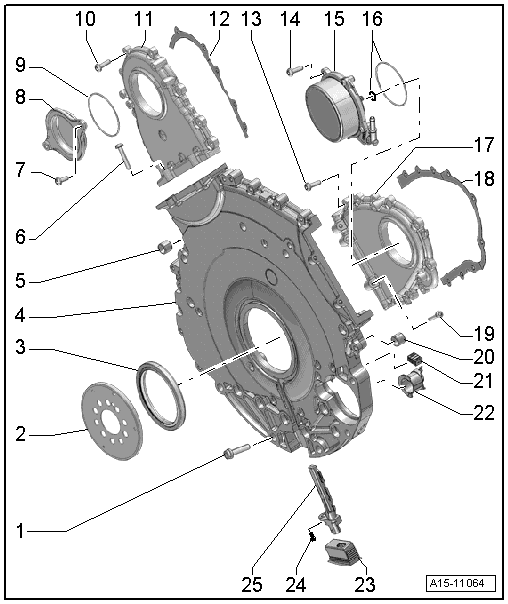

Fig 2: Timing Chain Cover Overview (Vehicles Built From 06.10)

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Tightening specification and sequence, refer to Fig 5.
2. Sensor Wheel
   • For the Engine Speed Sensor -G28-.
3. Crankshaft Shaft Seal, Transmission Side
   • Replacing. Refer to CRANKSHAFT SEAL, REMOVING AND INSTALLING, TRANSMISSION SIDE .
4. Timing Chain Cover Lower Section
   • Removing and Installing. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
5. Alignment Sleeve
   • Quantity: 2
6. Bolt
   • Replace
   • Tightening specification and sequence, refer to Fig 3.
7. Bolt
   • 9 Nm
8. Cover
9. O-Ring
   • Replace
10. Bolt
    • Replace
    • Tightening specification and sequence, refer to Fig 3.
11. Left Timing Chain Cover
    • Removing and Installing. Refer to LEFT TIMING CHAIN COVER, REMOVING AND INSTALLING .
12. Seal
    • Replace
13. Bolt
    • Replace
    • Tightening specification and sequence, refer to Fig 4.
14. Bolt
    • Tightening specification: 9 Nm. .
15. Vacuum Pump
    • Removing and Installing. Refer to VACUUM PUMP, REMOVING AND INSTALLING, 3.0L TDI ENGINE .
16. O-Rings
    • Replace
17. Right Timing Chain Cover
    • Removing and Installing. Refer to RIGHT TIMING CHAIN COVER, REMOVING AND INSTALLING .
18. Seal
    • Replace
19. Bolt
    • Replace
    • Tightening specification and sequence, refer to Fig 4.
20. Alignment Sleeve
    • Quantity: 2
21. Seal
    • Quantity: 2
22. Cover
    • For the starter
23. Cover
    • For the Engine Speed Sensor -G28-
24. Bolt
    • Tightening specification. Refer to Special Tools .
25. Engine Speed Sensor -G28-
    • Removing and Installing.

Left Timing Chain Cover Tightening Sequence And Torque Specification:

Fig 3: Left Timing Chain Cover Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in 4 steps as follows:

Right Timing Chain Cover Tightening Sequence And Torque Specification:

Fig 4: Right Timing Chain CoverBolts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in 4 steps as follows:

Lower Timing Chain Cover Tightening Sequence And Torque Specification:

Fig 5: Lower Timing Chain Cover Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in three steps and in the sequence shown:
