Crankshaft Seal, Removing And Installing, Transmission Side

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Procedure

Fig 1: Prying Out Sealing Ring Using Extractor Lever T20143/2

Courtesy of AUDI OF AMERICA, LLC

-- Remove the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Pry the shaft seal out with the Pulling HookT20143/2.

-- Drill an 8 mm -arrow 2- hole in the Guide SleeveT10122/2 for the alignment sleeve; use the hole in the washer as a template -arrow 1-.

Fig 2: Drill An 8 Mm Hole -Arrow 2- In Guide Sleeve T10122/2 For Alignment Sleeve

Courtesy of AUDI OF AMERICA, LLC

-- Clean the running and sealing surface.

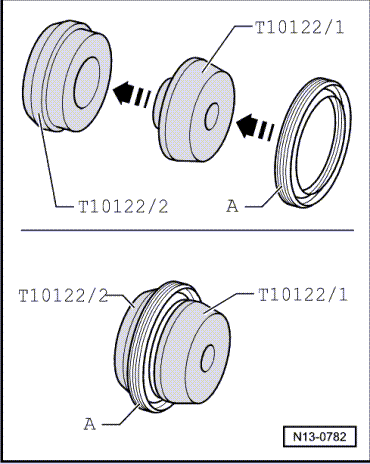

Fig 3: Identifying Seal, Sleeve T10122/1 And Assembly Tool T10122/2

Courtesy of AUDI OF AMERICA, LLC

-- Place the Assembly Device T10122/1 on the Guide SleeveT10122/2 and slide the shaft seal -A- onto the pull sleeve.

-- Remove the assembly device.

-- Position the Guide SleeveT10122/2 with shaft seal -1- on the crankshaft.

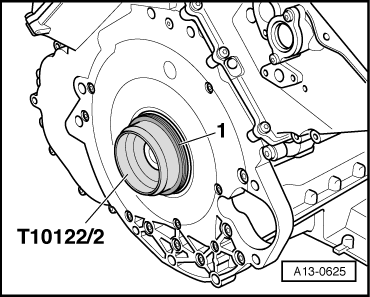

Fig 4: Identifying Pull Sleeve T10122/2 With Sealing Ring On Crankshaft

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a rick of leaks due to incorrect assembly.

To prevent the shaft seal sealing lip from rolling onto itself, insert the shaft seal by hand on the crankshaft.

-- Slide the shaft seal by hand over the Seal Installer - Crankshaft - Pulling SleeveT10122/2 on to the crankshaft.

-- Press shaft seal in evenly all around with Seal Installer - Crankshaft - Thrust SleeveT10122/5 until flush.

Fig 5: Install Shaft Seal In Evenly All Around With Thrust Piece T10122/5 Until Flush

Courtesy of AUDI OF AMERICA, LLC

-- Install the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .
