Exhaust Gas Temperature Sensor 3 -G495-, REMOVING AND INSTALLING: Installation
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal. Note the following.
- Tightening specification. Refer to EXHAUST TEMPERATURE CONTROL OVERVIEW .
-- Coat the exhaust gas temperature sensor thread with hot bolt past.

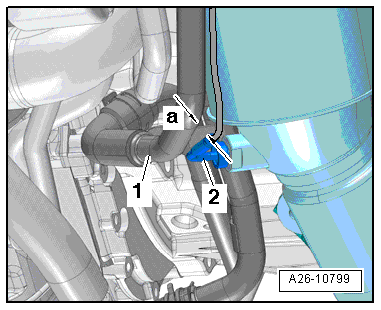

-- Note installation position:
- Dimension -a- = 10 mm between Exhaust Gas Temperature Sensor 3 -G495- -2- and the coolant line -1-.
-- Install the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- On a vehicle with air suspension, deactivate vehicle lift mode. Refer to Self-Leveling Suspension .
