Catalyst Temperature Sensor 1 -G20-, REMOVING AND INSTALLING: Installation
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal. Note the following.
- Tightening specification. Refer to EXHAUST TEMPERATURE CONTROL OVERVIEW .
-- Coat the exhaust gas temperature sensor thread with hot bolt past.

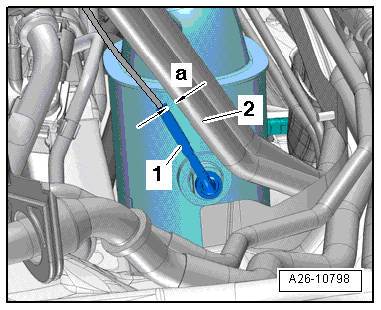

-- Note installation position:
- Dimension -a- = 25 mm between the Catalyst Temperature Sensor l -G20- -1- and the fuel lines -2-.
