EGR Cooler Pump -V400- OVERVIEW
WARNING: This page is about a different variant/trim than selected.

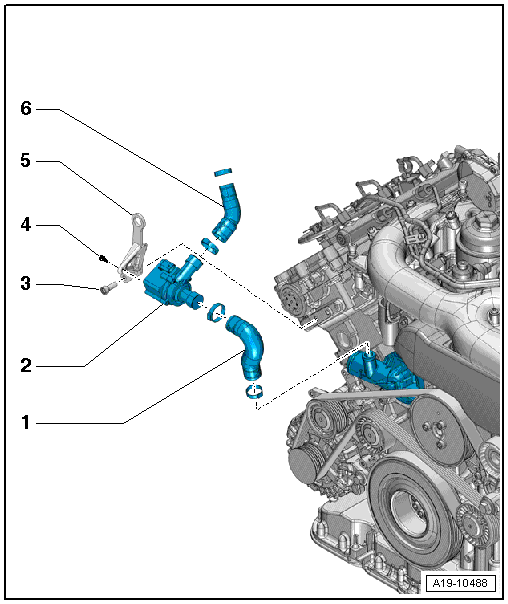

Fig 1: Identifying Pump For Exhaust Gas Recirculation Cooler V400 And Replacement Clamps (Red Arrows)
- Coolant Hose
- To coolant thermostat.
- EGR Cooler Pump -V400-
- Removing and Installing. Refer to EGR Cooler Pump -V400-, REMOVING AND INSTALLING .
- Bolt
- Tightening specification, refer to -Item 14- CYLINDER HEAD OVERVIEW .
- Bolt
- 2.7 Nm
- Engine Lifting Eye
- Coolant Hose
- To cooler for exhaust gas recirculation.
