Engine, Securing On Engine And Transmission Holder

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Procedure

NOTE:

Place a cloth underneath to soak up any escaping power steering fluid.

-- Remove the bolts -2- and the hydraulic pipe.

Fig 1: Power Steering Pump Fluid Pressure And Return Lines
GWWA48-10590Courtesy of AUDI OF AMERICA, LLC

-- Close open lines and connections with clean plugs from the Engine Bung Set VAS6122.

NOTE:

Ignore item -1-.

-- Remove the bolt on the -arrow- on the Air Conditioning (A/C) compressor wire bracket.

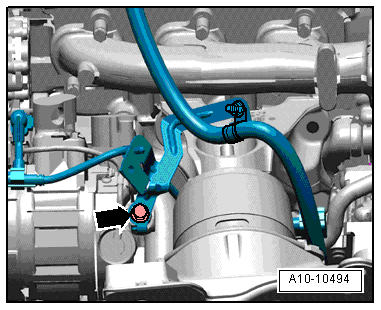

Fig 2: Identifying Electric Wire Bracket Bolt -Arrow- From Air Conditioning (A/C) Compressor
GWWA10-10494Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right engine mount nuts -arrow-.

Fig 3: Identifying Engine Mount Bracket To Engine Mount Nut -Arrow-
GWWA10-10496Courtesy of AUDI OF AMERICA, LLC
NOTE:

Engine carrier remains in installation location.

-- Disconnect the connector -3-.

Fig 4: Remove/Install Mount With Electrohydraulic Engine Mount Solenoid Valve -N398- And Vacuum Reservoir
GWWA10-11360Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vacuum hose -2- and free it up from the engine support.

NOTE:

Ignore items -1 and 4-.

-- Attach the Lift Arm Extension VAS6101 to the Shop Crane VAS6100.

Fig 5: Identifying Engine Assembly Lift Tools
GWWA10-11231Courtesy of AUDI OF AMERICA, LLC

-- Engage the Lifting Tackle 3033 on the engine lifting eyes and on the shop crane as shown in the illustration.

-- Tension engine slightly with shop crane, do not raise.

-- Remove the Scissor Lift Table - Q7 Set - Articulated Joint Support VAS6131/13-7 from the engine.

Fig 6: Identifying Engine Joint Support VAS6131/13-7
GWWA10-11233Courtesy of AUDI OF AMERICA, LLC

-- Raise engine from engine carrier.

-- If equipped, remove the nuts -arrows- and the connector bracket from the left engine support.

Fig 7: Identifying Bolts -Arrows- And Connector Bracket From Left Engine Mount Bracket
GWWA10-10492Courtesy of AUDI OF AMERICA, LLC

-- Remove the right and left bolts -arrows- and then remove the engine support.

Fig 8: Engine Support, Removing/Installing
GWWA10-11361Courtesy of AUDI OF AMERICA, LLC
NOTE:

The left engine support is shown in the illustration.

-- Secure the engine to the Engine and Gearbox Bracket VAS6095A using the Engine/Transmission Holder - V6 TDI Bracket VAS6095/1-11 and tighten to 40 Nm as illustrated.

Fig 9: Identifying Engine Stand Assembly
GWWA10-11322Courtesy of AUDI OF AMERICA, LLC
