Engine And Transmission, Separating

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A6 Set VAS6131/12, Scissor Lift Table - Q7 Set VAS6131/13 and Scissor Lift Table - Gearbox Support VAS6131/14.
Bracket - Multiple Use 30-211A
Locking Pin T10060A
Crankshaft Turning Tool T40257
Wrench - 21mm T40263
Adapter T40314
Torx Socket - T60 T40087
M10 x 45 bolt and nut

Procedure

Fig 1: Identifying Scissor Lift Platform VAS 6131

Courtesy of AUDI OF AMERICA, LLC

Engine/transmission assembly removed and placed on the Scissor Lift Table VAS6131B.

-- Equip the Scissor Lift Table VAS6131B with the Scissor Lift Table - Audi Set VAS6131/10 and the Scissor Lift Table - A6 Set VAS6131/12, and Scissor Lift Table - Q7 Set VAS6131/13 as follows:

NOTE:

The other attachments remain unchanged.

Platform Coordinates	Components of the Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A6 Set VAS6131/12, Scissor Lift Table - Q7 Set VAS6131/13 and Scissor Lift Table - Gearbox Support VAS6131/14.
E1	/10-1	/13-7
B10	/10-1	/10-2	/10-5	/14
G10	/10-1	/10-2	/10-5	/14
G10	/10-1	/12-2	/10-5	/13-3

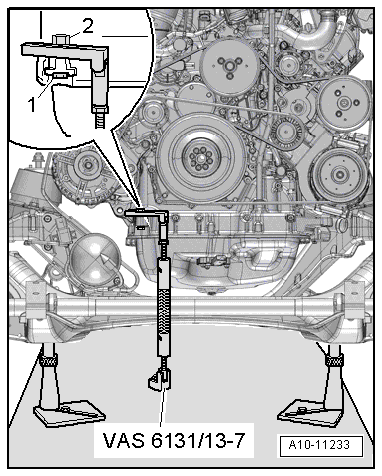

-- Secure the front Scissor Lift Table - Q7 Set - Articulated Joint Support VAS6131/13-7 into the threaded holes in the engine with a M10 x 45 bolt -1- and nut -2-.

Fig 2: Identifying Engine Joint Support VAS6131/13-7

Courtesy of AUDI OF AMERICA, LLC

-- Install the joint support on the Scissor Lift Table VAS6131B and tighten it to 20 Nm.

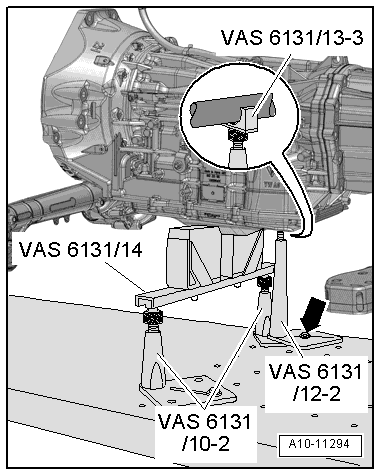

-- Attach the mounting elements from the Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A6 Set VAS6131/12, Scissor Lift Table - Q7 Set VAS6131/13 and Scissor Lift Table - Gearbox Support VAS6131/14 on the front of the transmission, as shown in illustration.

Fig 3: Attaching Mounting Elements From VAS 6131/10, VAS 6131/12, VAS 6131/13 And VAS 6131/14 To Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Prepare the mounting elements from Scissor Lift Table - A6 Set VAS6131/12 and Scissor Lift Table - Q7 Set VAS6131/13 for supporting the driveshaft as shown in the illustration.

-- Secure the Scissor Lift Table - A6 Set - Mounting Pins VAS6131/12-2 with the M10x35 bolt -arrow- and the washer.

-- Remove the particulate filter bracket bolts -arrows-.

Fig 4: Particulate Filter Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- from the tab on the preliminary catalytic converter.

Fig 5: Identifying Bolt -Arrow- From Exhaust Pipe

Courtesy of AUDI OF AMERICA, LLC

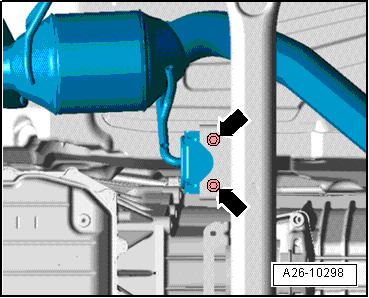

-- Remove the nuts -arrows- and then remove the preliminary catalytic converter and particulate filter.

Fig 6: Preliminary Catalytic Converter Flange Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant hoses -arrow-.

Fig 7: Identifying Coolant Hoses -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamp -1- and remove the coolant hose.

Fig 8: Left Coolant Pipe, Remove/Install

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-, press the coolant pipe on the left side of the transmission to the side.

NOTE:

Ignore item -2-.

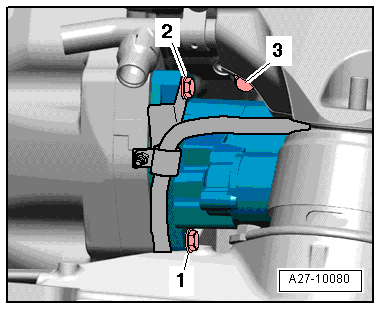

-- Remove bolt -1- and loosen bolt -3-.

Fig 9: Cooling Oil Valve -N471- Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Press the mount -2- and the Cooling Oil Valve -N471- toward the rear.

-- Open the clamps -2 and 4- and the clips -3- to remove the coolant hoses.

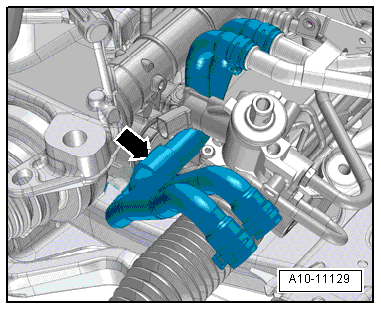

Fig 10: Coolant Pipe On Left Side Of Transmission, Remove/Install

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and then remove the coolant pipe on the left side of the transmission.

NOTE:

Ignore item -1-.

-- Remove the bolts -arrows- at the transfer case/front driveshaft connection. Refer to TRANSFER CASE, REMOVING AND INSTALLING .

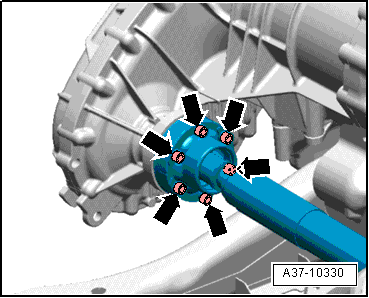

Fig 11: Identifying Front Driveshaft Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Place a cloth underneath to soak up any escaping ATF.

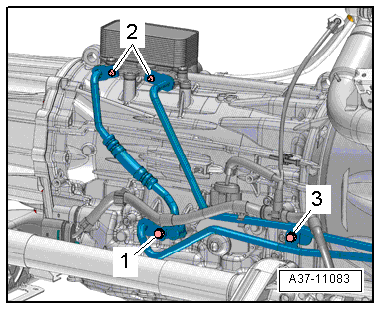

Fig 12: Identifying ATF Pipes Inserted Into Transmission

Courtesy of AUDI OF AMERICA, LLC

Observe the rules of cleanliness for working on automatic transmissions. Refer to INFORMATION ON 6-SPEED AUTOMATIC TRANSMISSION 0AT .

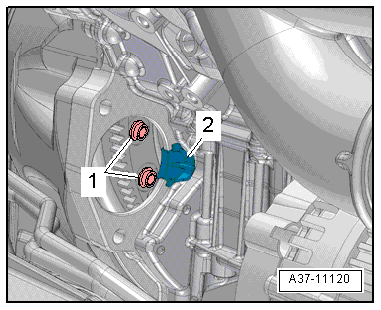

-- Remove the bolts -1, 2 and 3- and then remove the ATF lines from the transmission.

-- Close open lines and connections with clean plugs from the Engine Bung Set VAS6122.

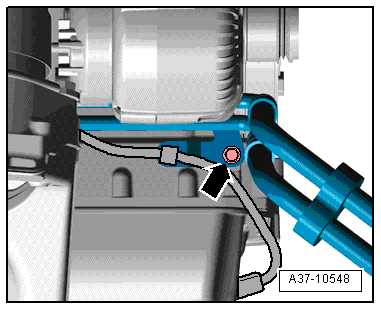

-- Remove the bolt -arrow- and remove the ATF lines.

Fig 13: Identifying ATF Transmission Line Bolt -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Close open lines and connections with clean plugs from the Engine Bung Set VAS6122.

Fig 14: Moving Tensioner Clockwise -Arrow- Using T40087 To Release Tension On Ribbed Belt And To Remove Ribbed Belt Using T10060A

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damage due to reversed running direction on a used ribbed belt.

Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

-- Turn the tensioning element clockwise using the Torx Socket - T60 T40087 -arrow- to release the tension on the ribbed belt.

-- Remove the ribbed belt from the Air Conditioning (A/C) compressor ribbed belt pulley and stop the tensioner with the Locking Pin T10060A.

-- Remove the cover -1-.

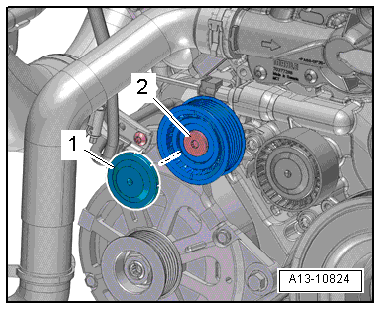

Fig 15: Idler Pulley Cover And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and remove the idler roller.

-- Remove the bolts -arrows- from the generator.

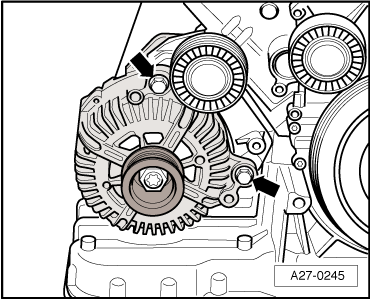

Fig 16: Generator Mounting Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If generator is stuck in its bracket, screw in mounting bolt again up to 2 rotations.

Carefully strike on bolt heads using flat side of hammer - doing this loosens the bushings on the generator mount.

-- Disconnect the connector -1-.

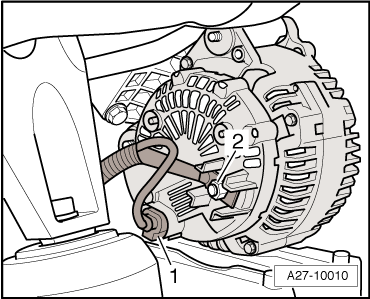

Fig 17: Identifying Wiring Harnesses

Courtesy of AUDI OF AMERICA, LLC

-- Remove terminal 30/B+ -2- from the generator.

-- Remove the generator.

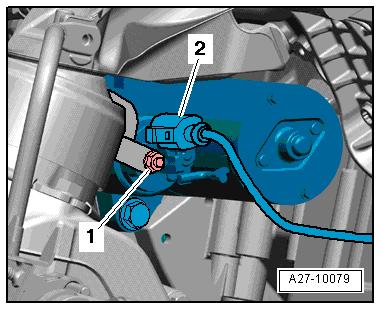

-- Disconnect the starter connector -2-.

Fig 18: Identifying Nut -1- And Connector -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- and then remove the B+ wire form the threaded pin.

-- Remove the engine support bolt -3-.

Fig 19: Starter Motor Bolts -1 & 2- And Engine Support Bolt -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2- and remove the starter.

-- Join the tools as illustrated.

Fig 20: Crankshaft Turning Tool, Wrench - 21MM And Adapter

Courtesy of AUDI OF AMERICA, LLC

Socket 21 mm for ¹ /₂ "-drive

Fig 21: Identifying Wrench - 21MM T40263

Courtesy of AUDI OF AMERICA, LLC

-- Counterhold the crankshaft to loosen the torque converter bolts.

CAUTION:

Components could be damaged by the camshaft timing chain jumping off.

When mounting, turn the crankshaft only in the direction of engine rotation -arrow-.

-- Remove the cover -2-.

Fig 22: Identifying Torque Converter Bolts -1- & Cover -2-

Courtesy of AUDI OF AMERICA, LLC

-- Turn the crankshaft 120° in the direction of engine rotation and remove the 6 torque converter bolts -1- inside the opening in the starter.

-- Remove the bolts -3 through 10- that attach the engine to the transmission.

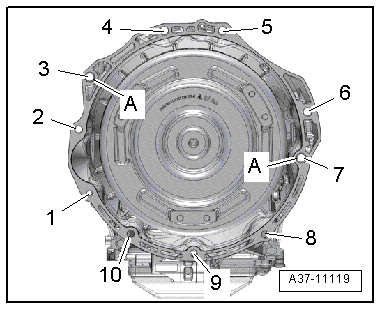

Fig 23: Identifying Alignment Sleeves -A- For Centering Engine/Transmission Are In Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the side bolts -1- on the Scissor Lift Table VAS6131B and pull the rear table plate and transmission slightly toward the rear.

Fig 24: Identifying Separation Of Engine And Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Push the torque converter off the drive plate and through the opening for the starter.

-- Secure torque converter in transmission against falling out with Bracket - Multiple Use 30-211A.

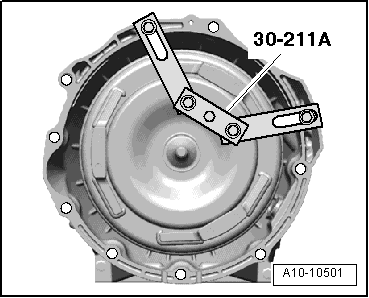

Fig 25: Securing Torque Converter In Transmission Using 30-211A

Courtesy of AUDI OF AMERICA, LLC
