Transmission, Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Bridge10-222A
Engine Support - Bracket w/Spindle and hook10-222A/10
Engine/Gearbox Support Shackle (2 pc.)10-222A/12
Engine Support Bridge - Engine Support 1910-222A/19
Engine Support Bridge - Sub-frame Adapter10-222A/22
Bracket - Multiple Use30-211A
Pry Lever80-200
Lifting Tackle3033
Engine/Transmission JackVAG1383A
Shop CraneVAS6100
Engine Bung SetVAS 6122
Crankshaft SocketT40058
Used Oil Collection And Extraction UnitSMN372500
Engine Support - Basic SetT40091
Engine Support - Supplement KitT40093A
Gearbox SupportT40173

Removing

NOTE:

Refer to REPAIR INFORMATION .

Refer to TRANSMISSION, CLEAN WORKING CONDITIONS .

-- Remove the left and right catalytic converters. Refer to Exhaust System, Emission Controls .

-- Remove the rear driveshaft. Refer to REAR DRIVESHAFT .

-- Remove the front driveshaft. Refer to FRONT DRIVESHAFT, REMOVING AND INSTALLING .

-- Remove the A/C compressor ribbed belt. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .

-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and the generator bracket.

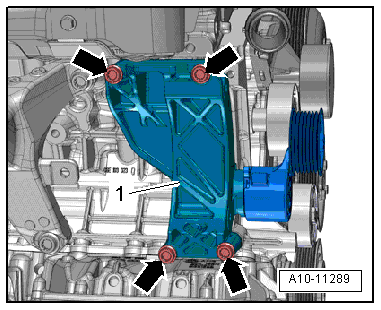

Fig 1: Identifying Generator Bracket & Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2-.

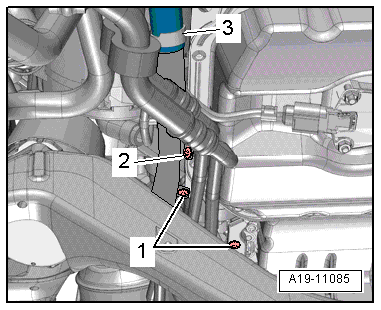

Fig 2: Identifying Right Coolant Pipe Bolts -1- And ATF Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -3-.

-- Place the Used Oil Collection And Extraction UnitSMN372500 under the transmission.

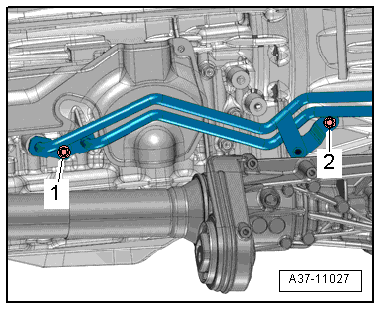

Fig 3: Identifying Bolts -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Pay attention to the rules of cleanliness when working on an automatic transmission. Refer to TRANSMISSION, CLEAN WORKING CONDITIONS .

-- Remove the bolts -1 and 2- and then remove the ATF pipes from the transmission.

-- Seal any open lines and connections with a clean plug from the Engine Bung SetVAS6122.

-- Remove the bolt -1-.

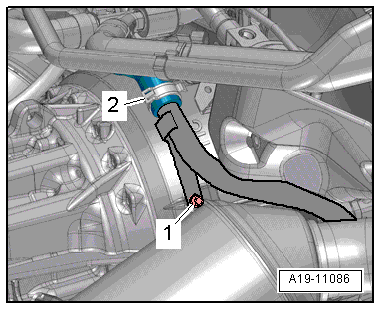

Fig 4: Identifying Right Coolant Pipe On The Transmission Bolt And Hose Clamp -2-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Remove the bolts -arrows-.

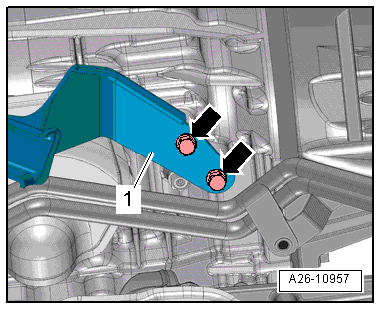

Fig 5: Identifying Bracket & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bracket for the right catalytic converter.

-- Disconnect the connectors -1, 2 and 3-.

Fig 6: Connect Connectors -1 Through 3-

Courtesy of AUDI OF AMERICA, LLC

-- Free up the ventilation hose -4-.

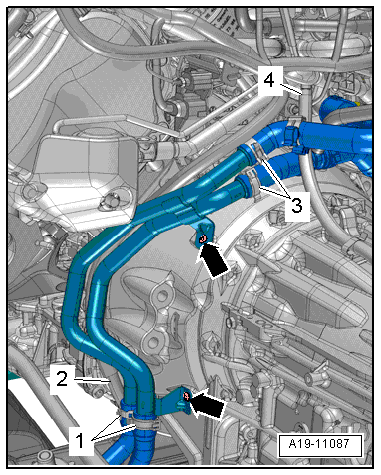

Fig 7: Identifying Left Rear Coolant Pipes On Transmission Clamps And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

NOTE:

Ignore items -1, 2 and 3-.

-- Remove ball head -1- on the selector lever cable from the selector shaft lever using the Pry Lever80-200.

Fig 8: Identifying Selector Lever Cable Ball Head -1- And Cable Mounting Bracket Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and then remove the selector lever cable from the transmission.

NOTE:

Do not bend or kink the selector lever cable.

-- Insert the Crankshaft SocketT40058 guide pins as follows:

Fig 9: Guide Pin And Adapter T40058

Courtesy of AUDI OF AMERICA, LLC

The large diameter -arrow 1- faces the engine.
The small diameter -arrow 2- faces the adapter.

-- Control the crankshaft with the Crankshaft SocketT40058 and an angled wrench to loosen the drive plate bolts.

Fig 10: Counter Hold Crankshaft Using Socket T40058

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of camshaft timing chain jumping off.

When mounting, turn the crankshaft only in the direction of engine rotation -arrow-.

-- Remove the cover -2- forward.

Fig 11: Identifying Cover -2-

Courtesy of AUDI OF AMERICA, LLC

-- Rotate each crankshaft 120° in the direction of engine rotation and remove the 6 torque converter bolts -1- in the opening for the starter.

-- Remove the engine/transmission connecting bolts -3 to 11-.

Fig 12: Identifying Aluminum Bolts - 1 Through 11 -

Courtesy of AUDI OF AMERICA, LLC

-- Mount the Engine Support Bridge10-222A on the fender bolting edge as illustrated.

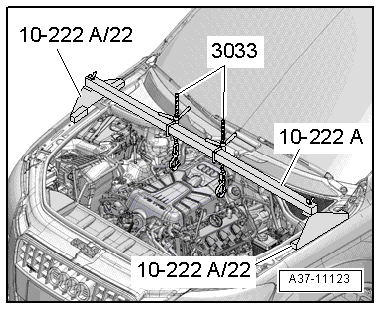

Fig 13: Identifying 10 - 222 A Mounted On Fender Bolting Edge

Courtesy of AUDI OF AMERICA, LLC

The Lifting Tackle3033 spindles are in the back.

-- Engage the spindle carabiner hook into the rear engine lifting eyes.

-- Mount the Engine Support Bridge10-222A on the notches on the longitudinal member and install the remaining parts of the Engine Support Bridge - Engine Support 1910-222A/19 as illustrated.

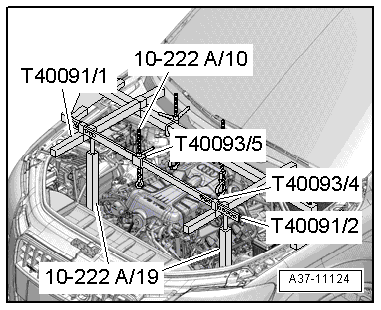

Fig 14: Identifying 10 - 222 A /19 Mounted On Notches On Longitudinal Member And Install Remaining Parts Of 10 - 222 A

Courtesy of AUDI OF AMERICA, LLC

-- Slide the Engine Support - Basic Set - SupportT40091/2 with the T40093/5 into both ConnectorsT40093/4.

WARNING:

Risk of accident if the engine support bridge is not secure.

Secure the Engine Support - Basic Set - SupportT40091/2 with the bolts and splints from the ConnectorT40093/4.

-- Attach the carabiner hook from the Engine Support - Bracket w/Spindle and HYook10-222A/10 to the front lifting eye on the right side of the engine.

-- Pretension the engine evenly using the three spindles, but do not lift.

-- Position the Engine/Gearbox JackVAG1383A with the Gearbox SupportT40173 under the transmission and secure it with a strap, as illustrated.

Fig 15: Identifying T40173 & V.A.G 1383 Supporting Transmission

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to the ATF pan.

Adjust the transmission support so that the transmission is not resting on the surface of the ATF pan.

-- Remove the bolts -1 and 2- from the transmission support.

Fig 16: Identifying Transfer Case Support Bolts -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Separate the transmission from the engine by pushing the torque converter off the drive plate through opening for the starter that was removed earlier.

-- Carefully lower the transmission with the Engine/Gearbox JackVAG1383A.

CAUTION:

A torque converter that slips out can destroy the ATF pump driver if the Bracket - Multiple Use30-211A is mounted.

When converter is inserted correctly, distance -a- between contact surfaces on threaded holes and on converter and torque converter bell housing contact surfaces is at least 19 mm.

Fig 17: Measuring Torque Converter

Courtesy of AUDI OF AMERICA, LLC

-- Use the Bracket - Multiple Use30-211A to secure the torque converter inside the transmission from falling out.

Fig 18: Identifying Bracket -30-211A- Attached To Secure Torque Converter

Courtesy of AUDI OF AMERICA, LLC

-- Secure the Lifting Tackle3033 to the transmission and to the transfer case as illustrated.

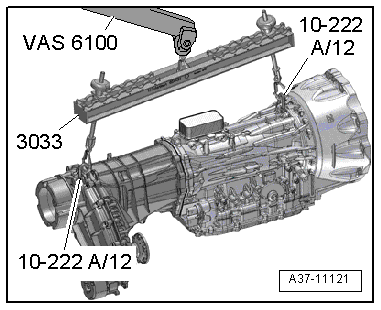

Fig 19: Securing 3033 To Transmission And To Transfer Case

Courtesy of AUDI OF AMERICA, LLC

-- If it is necessary to separate the transmission from the transfer case, use the Shop CraneVAS6100 to lift the transmission with the transfer case off the Engine/Gearbox JackVAG1383A and set it down so it is not resting on the oil pan.

-- Separate the transfer case from the transmission. Refer to TRANSFER CASE OVERVIEW .

Special tools and workshop equipment required

Engine Support Bridge10-222A
Engine Support - Bracket w/Spindle and Hook10-222A/10
Engine/Gearbox Support Shackle (2 pc.)10-222A/12
Engine Support Bridge - Engine Support 1910-222A/19
Engine Support Bridge - Sub-frame Adapter10-222A/22
Bracket - Multiple Use30-211A
Pry Lever80-200
Lifting Tackle3033
Engine/Gearbox JackVAG1383A
Shop CraneVAS6100
Engine Bung SetVAS6122
Crankshaft SocketT40058
Engine Support - Basic SetT40091
Engine Support - Supplement KitT40093A
Gearbox SupportT40173

Removing

NOTE:

Refer to REPAIR INFORMATION .

Refer to TRANSMISSION, CLEAN WORKING CONDITIONS .

-- Remove the particulate filter. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the rear driveshaft. Refer to REAR DRIVE SHAFT, REMOVING AND INSTALLING .

-- Remove the front driveshaft. Refer to FRONT DRIVESHAFT, REMOVING AND INSTALLING .

-- Remove the left coolant pipe from the transmission. Refer to LEFT COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .

Fig 1: Identifying Left Coolant Pipe Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the upper left coolant pipes from the transmission. Refer to LEFT COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .

Fig 2: Identifying Left Upper Coolant Pipes Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .

-- Remove the bolt -arrow-.

Fig 3: Identifying ATF Transmission Line Bolt -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1, 2 and 3-.

Fig 4: Connect Connectors -1 Through 3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove ball head -1- on the selector lever cable from the selector shaft lever using the Pry Lever80-200.

Fig 5: Identifying Selector Lever Cable Ball Head -1- And Cable Mounting Bracket Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and then remove the selector lever cable from the transmission.

NOTE:

Do not bend or kink the selector lever cable.

-- Insert the Crankshaft SocketT40058 guide pins as follows:

Fig 6: Guide Pin And Adapter T40058

Courtesy of AUDI OF AMERICA, LLC

The large diameter -arrow 1- faces the engine.
The small diameter -arrow 2- faces the adapter.

-- Control the crankshaft using the Crankshaft SocketT40058 to loosen the torque converter bolts.

Fig 7: Identifying TDC With Special Tool Adapter T140058

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of camshaft timing chain jumping off.

When mounting, turn the crankshaft only in the direction of engine rotation -arrow-.

-- Remove the cover -2-.

Fig 8: Identifying Torque Converter Bolts -1- & Cover -2-

Courtesy of AUDI OF AMERICA, LLC

-- Rotate each crankshaft 120° in the direction of engine rotation and remove the 6 torque converter bolts -1- in the opening for the starter.

-- Remove the engine/transmission connecting bolts -3 to 10-.

Fig 9: Identifying Alignment Sleeves -A- For Centering Engine/Transmission Are In Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

-- Mount the Engine Support Bridge10-222A on the fender bolting edge as illustrated.

Fig 10: Identifying 10 - 222 A Mounted On Fender Bolting Edge

Courtesy of AUDI OF AMERICA, LLC

The Lifting Tackle3033 spindles are in the back.

-- Engage the spindle carabiner hook into the rear engine lifting eyes.

-- Mount the Engine Support Bridge10-222A on the notches on the longitudinal member and install the remaining parts of the Engine Support Bridge - Engine Support 1910-222A/19 as illustrated.

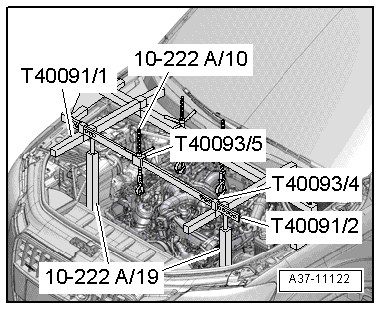

Fig 11: Identifying 10 - 222 A /19 Mounted On Notches On Longitudinal Member

Courtesy of AUDI OF AMERICA, LLC

-- Slide the SupportT40091/2 with the T40093/5 into both ConnectionsT40093/4.

WARNING:

Risk of accident if the engine support bridge is not secure.

Secure the SupportT40091/2 with the bolts and splints from the ConnectorT40093/4.

-- Attach the carabiner hook from the Engine Support - Bracket w/Spindle and Hook10-222A/10 to the front lifting eye on the right side of the engine.

-- Position the Engine/Gearbox JackVAG1383A with the Gearbox SupportT40173 under the transmission and secure it with a strap, as illustrated.

Fig 12: Identifying T40173 & V.A.G 1383 Supporting Transmission

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to the ATF pan.

Adjust the transmission support so that the transmission is not resting on the surface of the ATF pan.

-- Remove the bolts -1 and 2- from the transmission support.

Fig 13: Identifying Transfer Case Support Bolts -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Carefully lower the transmission with the Engine/Gearbox JackVAG1383A.

-- Pretension the engine evenly using the three spindles, but do not lift.

NOTE:

Place a clean cloth under the separating point to catch the escaping ATF.

Fig 14: Identifying ATF Pipes Inserted Into Transmission

Courtesy of AUDI OF AMERICA, LLC

Pay attention to the rules of cleanliness when working on an automatic transmission. Refer to TRANSMISSION, CLEAN WORKING CONDITIONS .

-- Remove the bolts -1, 2 and 3- and pull the ATF pipes off the transmission.

NOTE:

Depending on the date of manufacture, the ATF pre-heater and the bolts -2- are not attached to the top of the transmission.

-- Seal any open lines and connections with a clean plug from the Engine Bung SetVAS6122.

-- Separate the transmission from the engine by pushing the torque converter off the drive plate through opening for the starter that was removed earlier.

CAUTION:

A torque converter that slips out can destroy the ATF pump driver if the Bracket - Multiple Use30-211A is mounted.

When converter is inserted correctly, distance -a- between contact surfaces on threaded holes and on converter and torque converter bell housing contact surfaces is at least 19 mm.

Fig 15: Measuring Torque Converter

Courtesy of AUDI OF AMERICA, LLC

-- Use the Bracket - Multiple Use30-211A to secure the torque converter inside the transmission from falling out.

Fig 16: Identifying Bracket -30-211A- Attached To Secure Torque Converter

Courtesy of AUDI OF AMERICA, LLC

-- Secure the Lifting Tackle3033 to the transmission and to the transfer case as illustrated.

Fig 17: Securing 3033 To Transmission And To Transfer Case

Courtesy of AUDI OF AMERICA, LLC

-- Separate the transfer case from the transmission. Refer to TRANSFER CASE OVERVIEW .
