Selector Mechanism: Overview
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
There is a risk of injury and accident from accidentally engaging a gear when the engine is running.
- Before performing work with the engine running, place the selector lever in the "P" position and engage the parking brake.

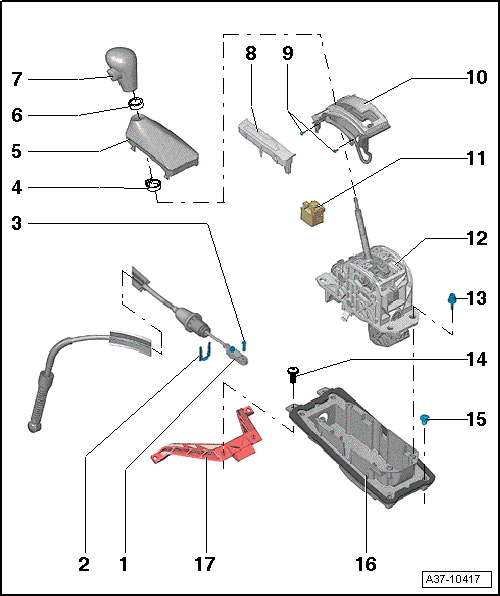

- Selector Lever Cable
- Do not bend.
- Refer to SELECTOR LEVER CABLE .
- Locking Plate
- Refer to SELECTOR LEVER CABLE .
- Selector Lever Cable Bolts
- Refer to SELECTOR LEVER CABLE .
- Clamp
- Refer to SELECTOR LEVER HANDLE .
- Selector Lever Boot
- Trim Ring
- Selector Lever Handle
- Refer to SELECTOR LEVER HANDLE .
- Selector Lever Transmission Range Position Display Unit -Y26-
- Removing and installing. Refer to Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING .
- Bolt
- 1 Nm
- Quantity: 4
- Selector Lever Sensor System Control Module -J587- with Tiptronic Switch -F189-
- Removing and installing. Refer to Selector Lever Sensor System Control Module -J587- WITH Tiptronic Switch -F189-, REMOVING AND INSTALLING .
- Shift Lock Solenoid -N110-
- Removing and installing. Refer to Shift Lock Solenoid -N110-, REMOVING AND INSTALLING .
- Refer to SELECTOR MECHANISM, PERFORMING EMERGENCY RELEASE .
- Selector Mechanism Function Unit
- Checking, Refer to GEARSHIFT MECHANISM, CHECKING .
- Removing and installing. Refer to SHIFT MECHANISM FUNCTION UNIT, REMOVING AND INSTALLING .
- Refer to SELECTOR MECHANISM FUNCTION UNIT .
- With Transmission Park Selector Switch -F305-
- Removing and installing. Refer to Transmission Park Selector Switch -F305-, REMOVING AND INSTALLING .
- Threaded Pin
- 6.5 Nm
- Quantity: 4
- For the selector mechanism function unit to the lower section.
- Bolt
- 6.4 Nm
- Quantity: 2
- For the centering bracket to the lower section of the selector mechanism function unit.
- Bolt
- 10 Nm
- Quantity: 4
- For the lower section of the selector mechanism function unit to the body.
- Selector Mechanism Function Unit Lower Section
- Removing and installing. Refer to SELECTOR MECHANISM FUNCTION UNIT LOWER SECTION, REMOVING AND INSTALLING .
- Centering Bracket
- May not be installed again if it is damaged or removed; necessary for factory production only.
