Selector Mechanism, Performing Emergency Release

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

It is not possible to move the selector lever out of "P" if the battery is disconnected or if it is discharged.

The Shift Lock Solenoid -N110- will cancel out the lock when the emergency release is activated.

Vehicles with Ashtray

Fig 1: Prying Off Cover Cap In Ashtray Housing Using Screwdriver

Courtesy of AUDI OF AMERICA, LLC

-- Remove front ashtray insert.

-- Pry out the cap in the ashtray housing -arrow-.

Vehicles without Ashtray

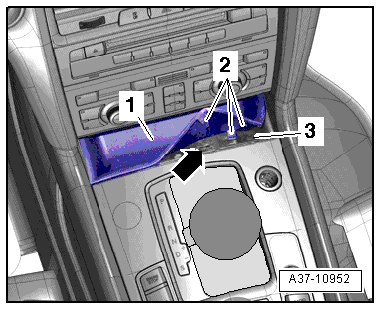

Fig 2: Identifying Cover -1-, Tabs -2-, And Openings In Storage Compartment -3-

Courtesy of AUDI OF AMERICA, LLC

-- Carefully remove the storage compartment trim -1- upward.

NOTE:

Lift the trim just far enough until the opening -arrow- for the emergency release lever is accessible.

All Vehicles

Fig 3: Pressing On Manual Release Lever Using A Screwdriver And Simultaneously Shift Selector Lever Out Of Position

Courtesy of AUDI OF AMERICA, LLC

-- Push the emergency release lever -arrow- with a screwdriver and at the same time move the selector lever out of "P".

NOTE:

The screwdriver will be guided through the funnel -1- to the emergency release lever.

Fig 4: Emergency Release Lever And Guide

Courtesy of AUDI OF AMERICA, LLC

Vehicles without Ashtray

Fig 5: Identifying Cover -1-, Tabs -2-, And Openings In Storage Compartment -3-

Courtesy of AUDI OF AMERICA, LLC

-- Press the tabs -2- into the openings in the storage compartment -3- and let them lock in place.
