Reducing Agent Metering System Control Module -J880-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the passenger seat all the way forward if necessary.
CAUTION:
Risk of destroying electronic components when disconnecting the battery.
- Observe the steps for disconnecting the battery.
- Observe the waiting period before disconnecting the battery. Refer to SELECTIVE CATALYTIC REDUCTION (SCR) SYSTEM SAFETY PRECAUTIONS .
- Always turn off the ignition before disconnecting the battery.
-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the right rear single seat in the second row of seats. Refer to Seat Frames .
-- Remove the right rear entry lamp. Refer to DOOR WARNING LAMP AND REAR ENTRY LAMP, REMOVING AND INSTALLING .

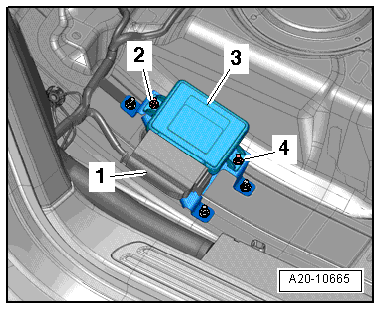

-- Press the floor covering to the side and disconnect the connector -1-.
-- Remove the nuts -2 and 4- and remove the Reducing Agent Metering System Control Module -J880- -3-.
