Overview - Muffler
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
When working on the whole exhaust system:
- Follow the safety precautions when working on the exhaust system. Refer to EXHAUST SYSTEM SAFETY PRECAUTIONS .
Catalytic Converters and Particulate Filter

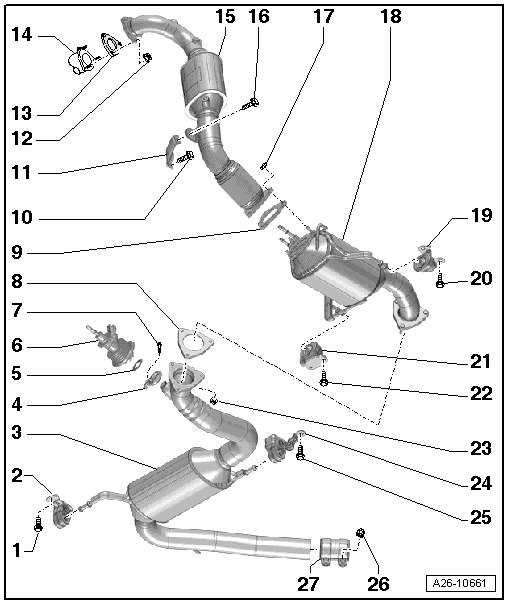

Fig 1: Exhaust Pipe With Catalytic Converter, Particulate Filter, And Reduction Catalytic Converter Overview
- Bolt
- 23 Nm
- Mount
- Replace if damaged
- Check pretension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Selective Catalytic Reduction (SCR) Catalytic Converter
- Removing and Installing. Refer to SELECTIVE CATALYTIC REDUCTION (SCR) CATALYTIC CONVERTER, REMOVING AND INSTALLING .
- Clamp
- Seal
- Replace
- Reducing Agent Injector -N474-
- Removing and installing. Refer to Reducing Agent Injector -N474-, REMOVING AND INSTALLING .
- Bolt
- Tightening specification -Item 1- OVERVIEW - Reducing Agent Injector -N474-.
- Seal
- Replace
- Seal
- Replace
- Bolt
- 23 Nm
- Bracket
- For the pre-catalytic converter
- Nut
- 23 Nm
- Replace
- Coat with hot bolt paste.
- Seal
- Replace
- Turbocharger
- Pre-Catalytic Converter
- With a flex joint
- Do not bend the decoupling element more than 10° or it will be damaged.
- Protect from shocks and impact stress
- Removing and installing. Refer to PRE-CATALYTIC CONVERTER, REMOVING AND INSTALLING .
- Exhaust system, installing without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Bolt
- 23 Nm
- Nut
- 23 Nm
- Replace
- Coat with hot bolt paste.
- Particulate Filter
- With catalytic converter
- With pressure line for the Exhaust Pressure Sensor 1 -G450- -Item 16- OVERVIEW - EXHAUST GAS TEMPERATURE SENSOR.
- Removing and installing. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING .
- After replacing, perform Adaptation in Guided Functions using the Vehicle Diagnostic Tester.
- Mount
- Replace if damaged
- Bolt
- 23 Nm
- Mount
- Replace if damaged
- Bolt
- 23 Nm
- Nut
- 23 Nm
- Replace
- Coat with hot bolt paste.
- Mount
- Replace if damaged
- Bolt
- 23 Nm
- Nut
- 23 Nm
- Clamping Sleeve
- Before tightening, align exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installed position. Refer to Fig 3
- Tighten threaded connections evenly.
Rear Muffler and Tail Pipes
- Tail Pipe
- Replacing. Refer to TAIL PIPES, REPLACING .
- Bolt
- 60 Nm
- Mount
- Replace if damaged
- Bolt
- 23 Nm
- Rear Muffler
- Exhaust system, installing without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Bolt
- 23 Nm
- Mount
- Replace if damaged
- Mount
- Replace if damaged
- Bolt
- 23 Nm
- Tail Pipe
- Replacing. Refer to TAIL PIPES, REPLACING .
- Bolt
- 60 Nm
- Lower threaded connections
