Backrest Cover And Padding Overview

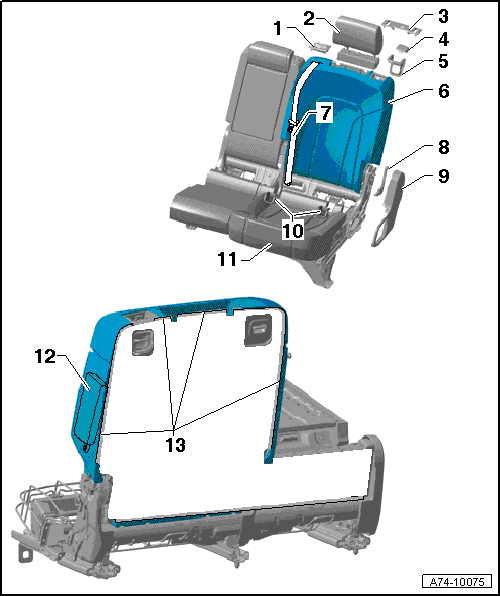

Fig 1: Identifying Backrest Cover And Padding

Courtesy of AUDI OF AMERICA, LLC

Center Belt Trim
- Removing and Installing. Refer to CENTER BELT TRIM PANEL, REMOVING AND INSTALLING .
Headrest
- Tightening specification: 10 Nm
- 2 screws
- Replace screws after each removal.
- Removing and Installing. Refer to OUTER HEADRESTS, REMOVING AND INSTALLING .
Headrest Cover
- Removing and Installing. Refer to OUTER HEADREST COVER, REMOVING AND INSTALLING .
Handle (Entry Assistance)
- Removing and Installing. Refer to ENTRY ASSISTANCE HANDLE, REMOVING AND INSTALLING .
Trim (Entry Assistance)
- Removing and Installing. Refer to ENTRY ASSISTANCE HANDLE TRIM, REMOVING AND INSTALLING .
Cover and Upholstery
- Removing and Installing. Refer to BACKREST COVER AND UPHOLSTERY, REMOVING AND INSTALLING .
Center Seat Belt
- Tightening specification: 55 Nm
- 1 screw
- Replace screw after each removal.
- Removing and Installing. Refer to CENTER THE THREE-POINT SEAT BELT (2ND ROW) OVERVIEW .
Trim
- Rear side, lower left.
- Removing and Installing. Refer to LOWER LEFT REAR SIDE TRIM PANEL, REMOVING AND INSTALLING .
Trim
- Left side
- Removing and Installing. Refer to LEFT SIDE TRIM PANEL, OUTER PART, REMOVING AND INSTALLING .
LATCH Caps
- Removing and Installing. Refer to LATCH CAP (2ND AND 3RD ROW SEATS), REMOVING AND INSTALLING .
Seat Cushion
- Removing and Installing. Refer to SEAT CUSHION, REMOVING AND INSTALLING .
Side Airbag
- Tightening specification: 10 Nm
- 1 screw
- Replace screw after each removal.
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Igniter -N201- AND Passenger Side Rear Thorax Airbag Igniter -N202-, REMOVING AND INSTALLING .
Fastening Strips
