Center The Three-Point Seat Belt (2ND Row) Overview

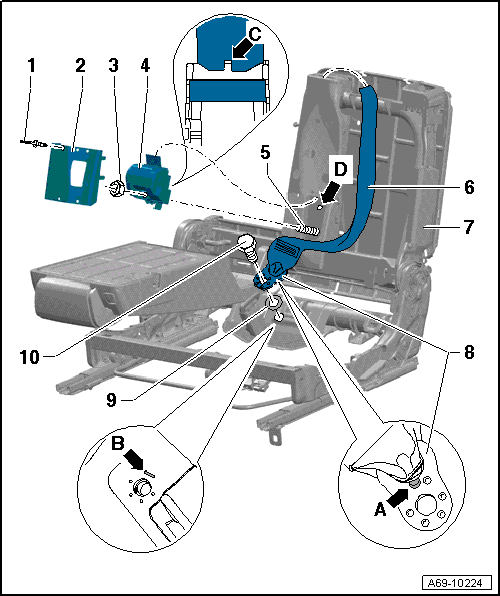

Fig 1: Center 2nd Row Three-Point Seat Belt Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Blind Rivet
   • Quantity: 7
   • For securing seat belt cover.
   • Drill out to remove.
   • Install new pop rivet with Pop Rivet PliersVAG1753A.
   • Allocation.
2. Seat Belt Cover
   • Removing and Installing. Refer to CENTER THREE-POINT SEAT BELT (2ND ROW), REMOVING AND INSTALLING CENTER THREE-POINT SEAT BELT (2ND ROW), REMOVING AND INSTALLING .
   • Always replace if removed.
3. Nut
   • 55 Nm
4. Belt Roller
   • Engage hooks -arrow C- in backrest cut-out -arrow D-
   • Removing and Installing. Refer to CENTER THREE-POINT SEAT BELT (2ND ROW), REMOVING AND INSTALLING .
5. Threaded Pins
   • Welded with backrest.
6. Seat Belt Webbing
7. Backrest
8. Belt End Fitting
   • Anchor depression -arrow A- must face toward seat frame ridge -arrow B-.
9. Rubber Disc
10. Bolt
    • 55 Nm
