Headrest Guides, Removing And Installing: Removing

-- Remove backrest panel:

• Manual seat. Refer to BACKREST COVER OVERVIEW .
• Memory seat, power seat and Comfort seat. Refer to BACKREST COVER OVERVIEW .

-- Remove the headrest:

• Manual seat: vehicles without a rear seat entertainment screen. Refer to HEADRESTS WITH LOCKING MECHANISM, REMOVING AND INSTALLING , vehicles with a rear seat entertainment screen. Refer to HEADRESTS WITH A REAR SEAT ENTERTAINMENT SCREEN, REMOVING AND INSTALLING .
• Memory seat, power seat and Comfort seat: vehicles without rear seat entertainment screen. Refer to HEADRESTS WITH LOCKING MECHANISM, REMOVING AND INSTALLING , vehicles with rear seat entertainment screen. Refer to HEADRESTS WITH A REAR SEAT ENTERTAINMENT SCREEN, REMOVING AND INSTALLING .

Headrest Guide with Release Button:

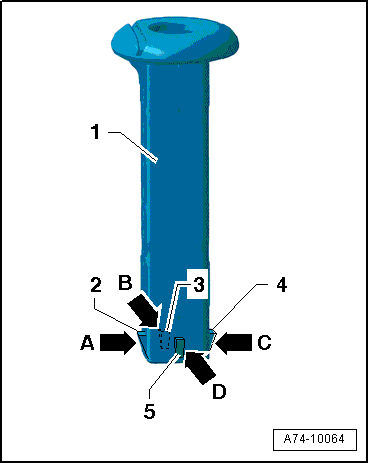

Fig 1: Pressing Retaining Tab 2, 3, 4, 5 In Direction Arrows A, B, C, And D

Courtesy of AUDI OF AMERICA, LLC

-- Press retaining tab -2- in direction of -arrow A-, retaining tab -3- in direction of -arrow B-, retaining tab -4- in direction of -arrow C- and retaining tab -5- in direction of -arrow D-.

-- Pull headrest guide -1- upward out of mount.

Headrest Guide without Release Button:

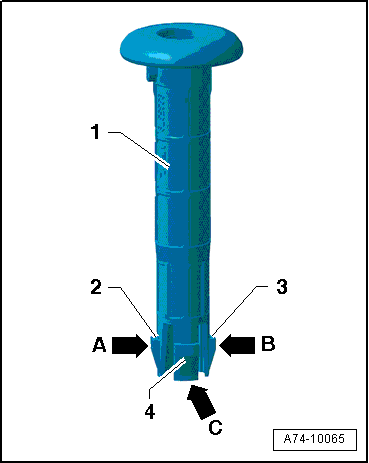

Fig 2: Identifying Retaining Tabs -2 To 4- Pressed In Direction Of Arrows -A To C-

Courtesy of AUDI OF AMERICA, LLC

-- Press retaining tab -2- in direction of -arrow A-, retaining tab -3- in direction of -arrow B- and retaining tab -4- in direction of -arrow C-.
