Backrest Cover Overview

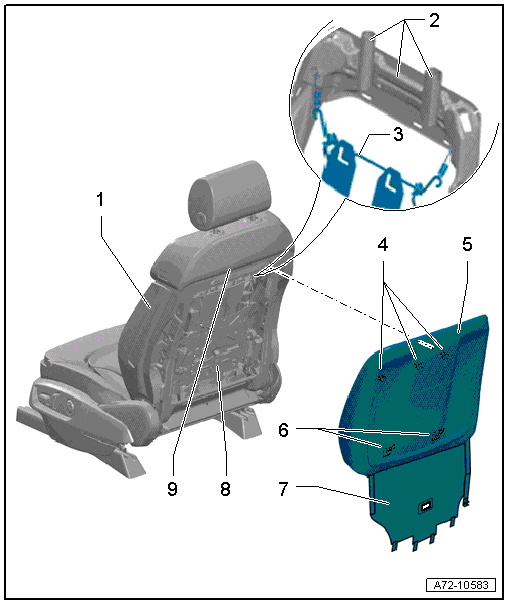

Fig 1: Identifying Backrest Cover Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Front Seat
- With the active head restraint system through 07/2006.
- Without the active head restraint system from 07/2006.
Backrest Frame with Guides
- From 07.2006
- For the backrest without an active head restraint system.
Four-Way Lumbar Support
- From 07.2006
- For the backrest without an active head restraint system.
- Removing and Installing. Refer to FOUR-WAY LUMBAR SUPPORT, WITHOUT ACTIVE HEAD RESTRAINT SYSTEM, REMOVING AND INSTALLING .
Spring Clips
- Quantity: 3
- Replacing
Backrest Cover
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING .
Bracket
- Quantity: 2
- Formed to backrest cover.
Footwell Cover
Four-Way Lumbar Support
- Through 07.2006
- For the backrest with an active head restraint system.
- Removing and Installing. Refer to FOUR-WAY LUMBAR SUPPORT, THROUGH 04/2006, REMOVING AND INSTALLING .
Backrest Frame
- Through 07.2006
- For the backrest with an active head restraint system.
