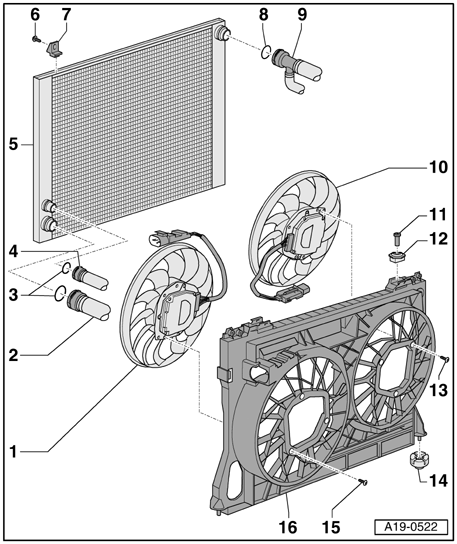

Radiator and coolant fan, assembly overview

1 - Coolant fan V7

• With Coolant Fan Control (FC) module J293
• Removing and installing → Coolant fan, removing and installing

2 - Coolant hose

• Release retaining clip to disconnect

3 - O-ring

• Replace

4 - Coolant hose

• Release retaining clip to disconnect

5 - Radiator

• Removing and installing → Radiator, removing and installing
• After replacing replace entire amount of coolant

6 - 6 Nm

7 - Bracket for radiator

8 - O-ring

• Replace

9 - Coolant hose

• Release retaining clip to disconnect

10 - Coolant Fan 2 V177

• With Coolant Fan Control (FC) module 2 J671
• Removing and installing → Coolant fan, removing and installing

11 - Retaining pin

12 - Rubber buffer

• Release with screwdriver and remove

13 - 10 Nm

14 - Rubber bushing

15 - 10 Nm

• Replace

16 - Fan shroud

• Removing and installing → Fan shroud, removing and installing
