Exhaust system, rear
WARNING: This page is about a different car, the 2006 Audi A8, 2005 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

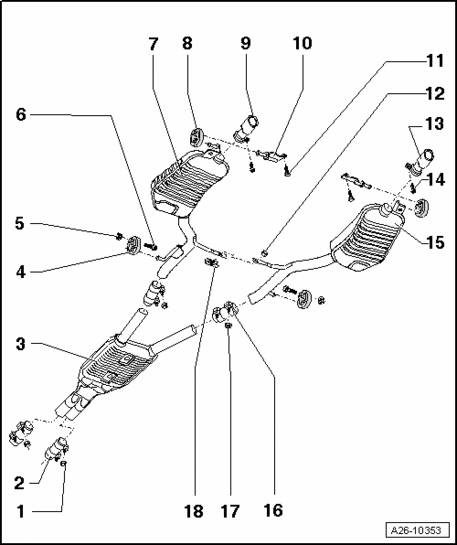

1 - Nut
- 25 Nm
2 - Double clamp
- Installed location → Installation position of front double clamp
- Before tightening, ensure exhaust system is tension-free → Exhaust system, installing free of tension
- Tighten bolts evenly
3 - Center muffler
- As standard, center and rear mufflers are installed as a single component. In cases of repair, the center and rear muffler are supplied individually and with a double clamp for connecting.
- Cutting through at separating point A separating point has been provided in the connecting pipe for individual replacement of center or rear muffler
4 - Suspended mount
5 - Nut
- 25 Nm
6 - Bolt
7 - Left rear muffler
- As standard, center and rear mufflers are installed as a single component. In cases of repair, center and rear muffler are supplied individually and with a double clamp for connecting.
- Cutting through at separating point → A separating point has been provided in the connecting pipe for individual replacement of center or rear muffler
- Replacing end pipe → End pipe, replacing
8 - Suspended mount
9 - End pipe
- Replacing → End pipe, replacing
10 - Bracket on body
11 - Bolt
- 22 Nm
12 - Nut
- 23 Nm
13 - End pipe
- Replacing → End pipe, replacing
14 - Nut
- 23 Nm
15 - Right rear muffler
- As standard, center and rear mufflers are installed as a single component. In cases of repair, center and rear muffler are supplied individually and with a double clamp for connecting.
- Cutting through at separating point → A separating point has been provided in the connecting pipe for individual replacement of center or rear muffler
- Replacing end pipe → End pipe, replacing
16 - Double clamp
- For individual replacement of center and rear mufflers
- Installed location → Installation position of rear double clamp
- Before tightening, ensure exhaust system is tension-free → Exhaust system, installing free of tension
- Tighten bolts evenly
17 - Nut
- 25 Nm
18 - Clamping piece
