Outer Headrest Overview

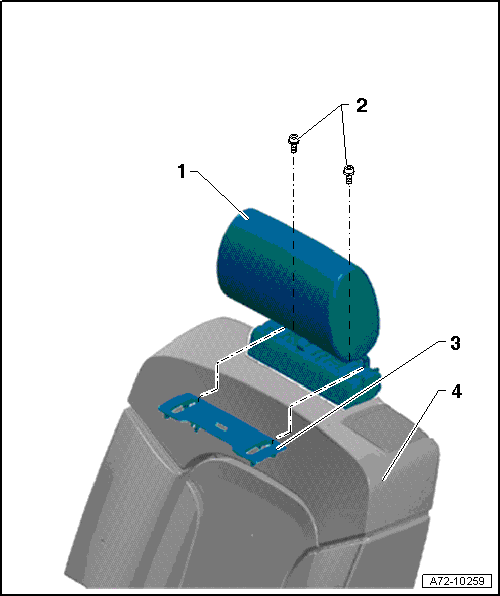

Fig 1: Identifying Outer Headrest Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Headrest
- Removing and Installing. Refer to OUTER HEADRESTS, REMOVING AND INSTALLING .
Screw, Self-Locking
- 10 Nm
- Always replace if removed.
- Clean nut threads before installing new screws.
Headrest Cover
- Clipped in.
- Removing and Installing. Refer to OUTER HEADREST COVER, REMOVING AND INSTALLING .
2nd Row Backrest
