Second Row, 2 Passenger Overview

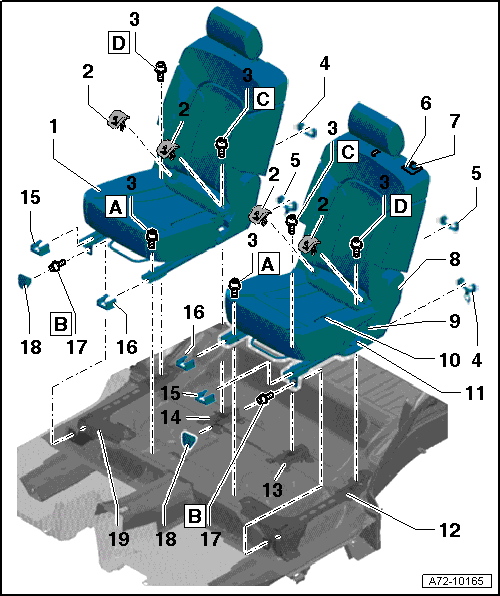

Fig 1: Identifying 2nd Row, 2-Seater Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Right Individual Seat
   • Removing and Installing. Refer to INDIVIDUAL SEAT, REMOVING AND INSTALLING .
   • Seat Rail Assembly Overview. Refer to SEAT RAIL OVERVIEW .
   • Seat Rail, Removing and Installing. Refer to SEAT RAIL, REMOVING AND INSTALLING .
2. LATCH Caps
   • Clipped onto seat frame bracket.
   • Removing and Installing. Refer to LATCH CAP, REMOVING AND INSTALLING .
3. Screw, Self-Locking
   • Always replace if removed.
   • Clean nut threads before installing new screws.
   • Pay attention to the assembly sequence and tightening torque. Refer to SECOND ROW, 2 PASSENGER OVERVIEW .
4. Rear Seat Rail Cap
   • Removing and Installing. Refer to REAR SEAT RAIL CAP, REMOVING AND INSTALLING .
5. Rear Seat Rail Cap
   • Removing and Installing. Refer to REAR SEAT RAIL CAP, REMOVING AND INSTALLING .
6. Trim (Entry Assistance)
   • Removing and installing. Refer to ENTRY ASSISTANCE HANDLE TRIM, REMOVING AND INSTALLING .
7. Handle (Entry Assistance)
   • Removing and installing. Refer to ENTRY ASSISTANCE HANDLE, REMOVING AND INSTALLING .
8. Trim
   • Left side, outer part.
   • Removing and Installing. Refer to LEFT SIDE TRIM PANEL, OUTER PART, REMOVING AND INSTALLING .
9. Trim
   • Left side, inner part.
   • Removing and Installing. Refer to LEFT SIDE TRIM PANEL, INNER PART, REMOVING AND INSTALLING .
10. Left Individual Seat
    • Removing and Installing. Refer to INDIVIDUAL SEAT, REMOVING AND INSTALLING .
    • Seat Rail Assembly Overview. Refer to SEAT RAIL OVERVIEW .
    • Seat Rail, Removing and Installing. Refer to SEAT RAIL, REMOVING AND INSTALLING .
11. Handle
    • Seat, folding.
    • To remove damaged handle, remove outer part of left side trim panel and drive handle off lever.
12. Left Console
13. Left Mounting Piece
14. Right Mounting Piece
15. Front seat rail cap
    • Placed on seat rail.
16. Front Seat Rail Cap
    • Placed on seat rail.
17. Screw, Self-Locking
    • Always replace if removed.
    • Clean nut threads before installing new screws.
    • Pay attention to the assembly sequence and tightening torque. Refer to SECOND ROW, 2 PASSENGER OVERVIEW .
18. Seat Rail Cover
    • Clipped into the inner part (floor covering component).
    • Removing and Installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
19. Right Console

Assembly Sequence and Tightening Torque:

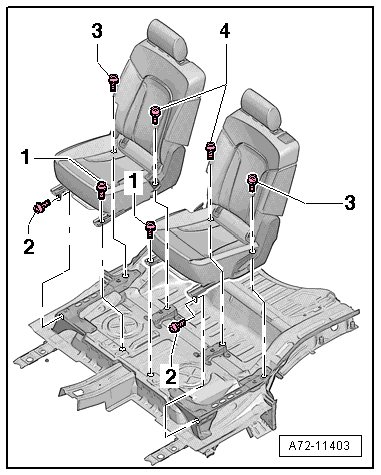

Fig 2: Identifying 2nd Row And 2-Seater Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Insert screws -1- and tighten to "50 Nm".

-- Insert screws -2- "but do not tighten".

-- Insert screws -4- and tighten to "50 Nm".

-- Insert screws -3- and tighten to "50 Nm".

-- Slide the seat all the way to the front in order to tighten the bolts -2- to "50 Nm".
