Seat Forward/Back Adjustment Motor -V288- OVERVIEW

NOTE:

Items -1-, -2- and -3- were illustrated in the removed state for the sake of clarity.

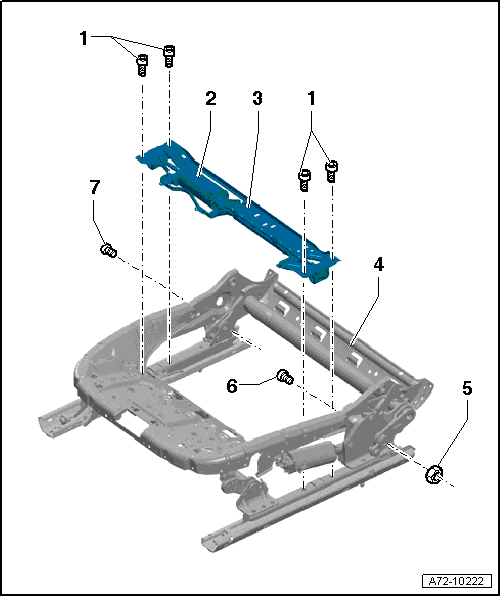

Fig 1: Identifying Seat Forward/Back Adjustment Motor V288 Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Screw, Self-Locking
- Quantity: 4
  CAUTION:
  Do not loosen or remove the bolts -1- otherwise the complete lower seat pan frame must be replaced. Refer to LOWER SEAT FRAME, DISASSEMBLING AND ASSEMBLING .
Seat Forward/Back Adjustment Motor -V288-
- Seat fore and aft adjustment motor can only be replaced together with lower seat pan frame.
- Lower Seat Pan Frame, Removing and Installing. Refer to LOWER SEAT FRAME, DISASSEMBLING AND ASSEMBLING
Lower Seat Frame
- Consists of the transverse member, the Seat Forward/Back Adjustment Motor -V288- and the seat rails. Refer to LOWER SEAT FRAME, DISASSEMBLING AND ASSEMBLING
- It is not possible to disassemble the lower seat pan frame. Refer to LOWER SEAT FRAME OVERVIEW
- Can be separated from the upper seat pan frame. Refer to LOWER SEAT FRAME, DISASSEMBLING AND ASSEMBLING .
Upper Seat Frame
- Can be separated from the lower seat pan frame. Refer to LOWER SEAT FRAME, DISASSEMBLING AND ASSEMBLING .
Nut
- 28 Nm
Bolt
Bolt
- 28 Nm
